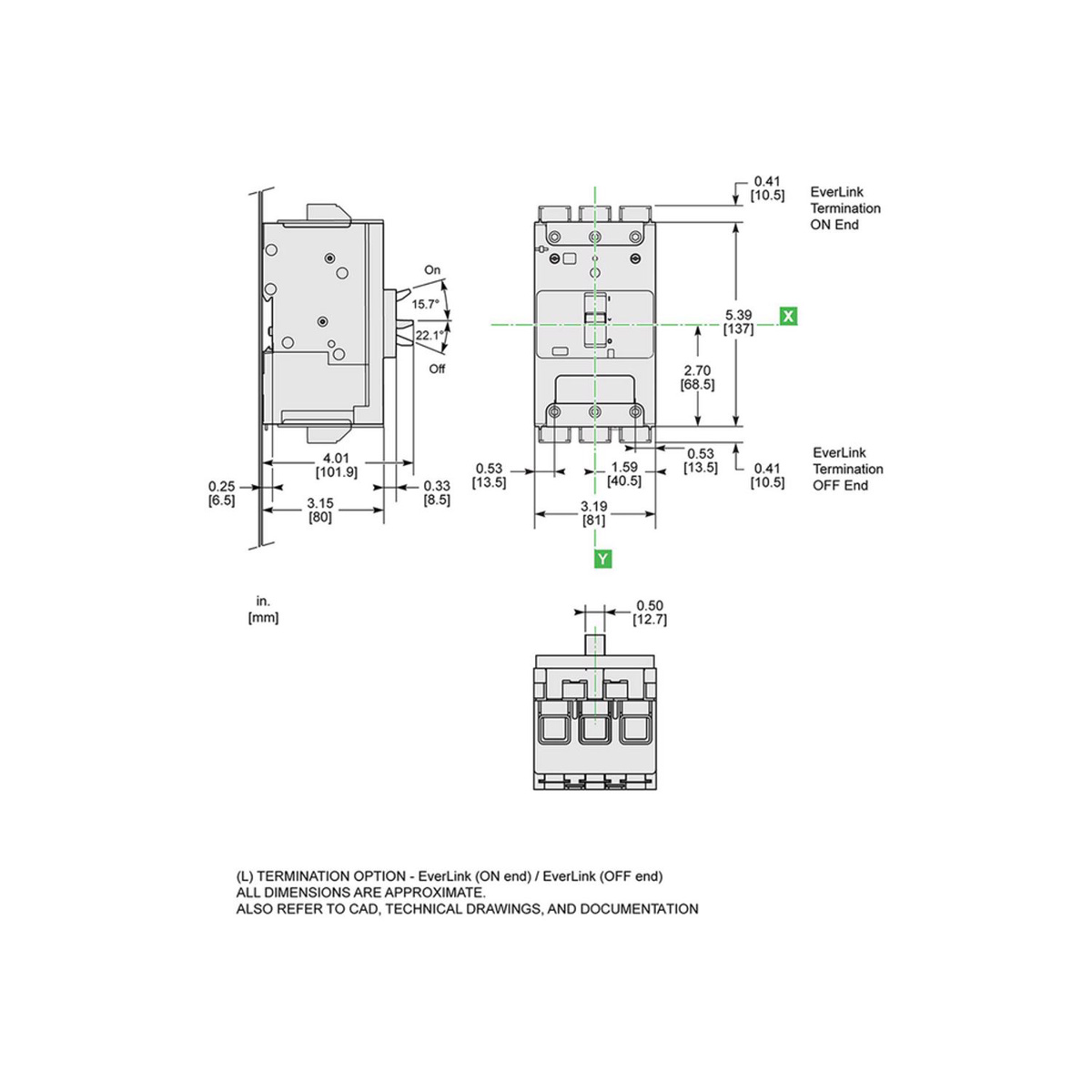

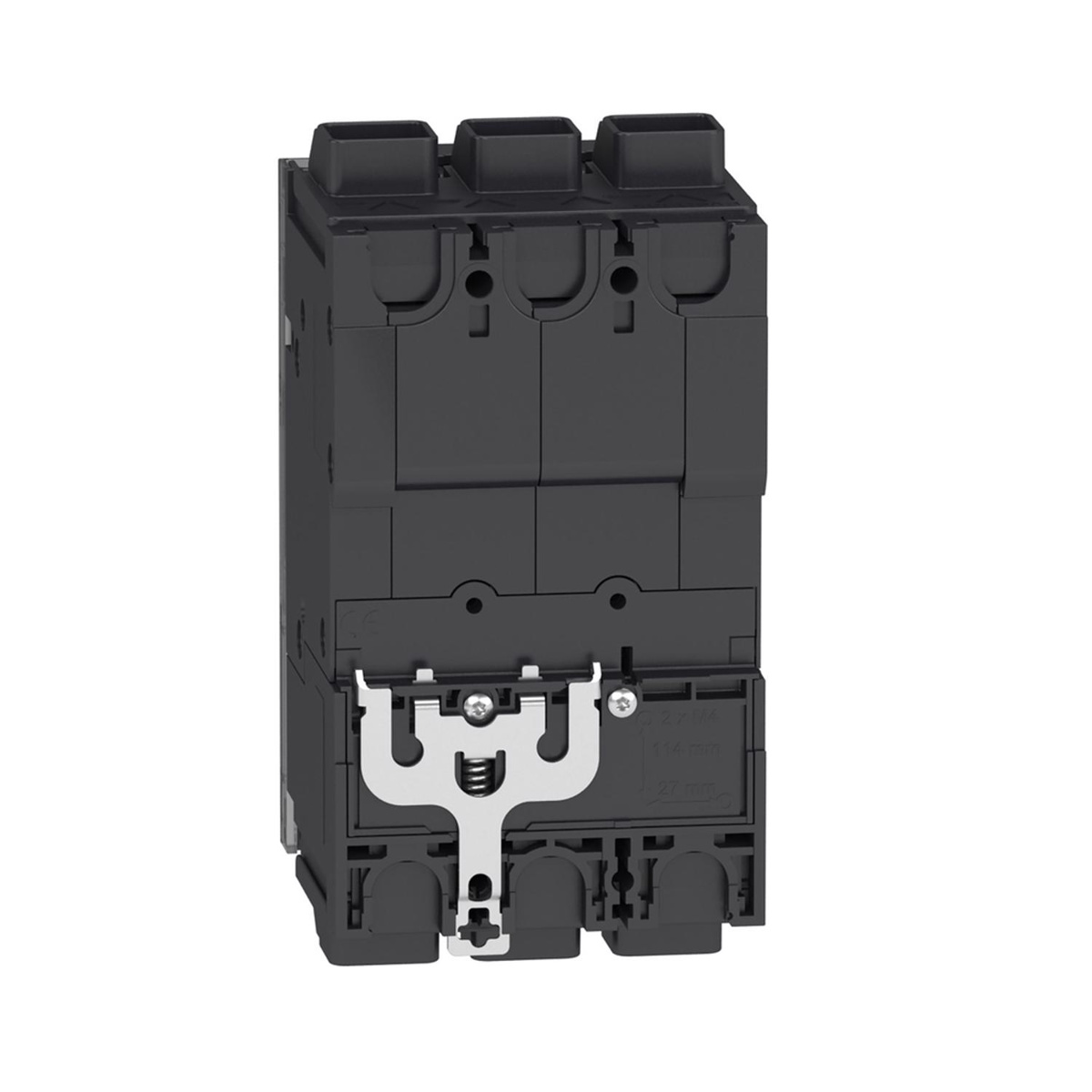

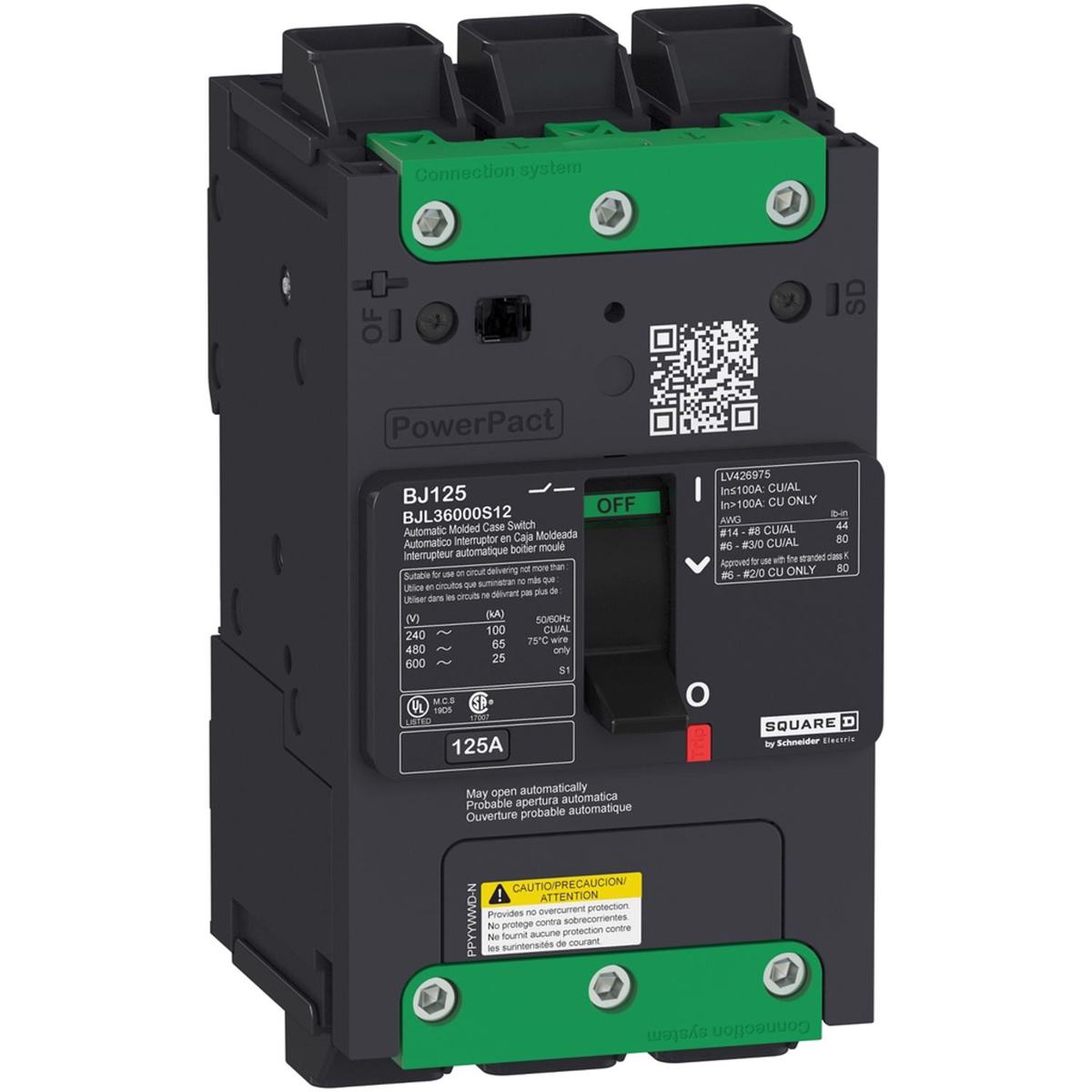

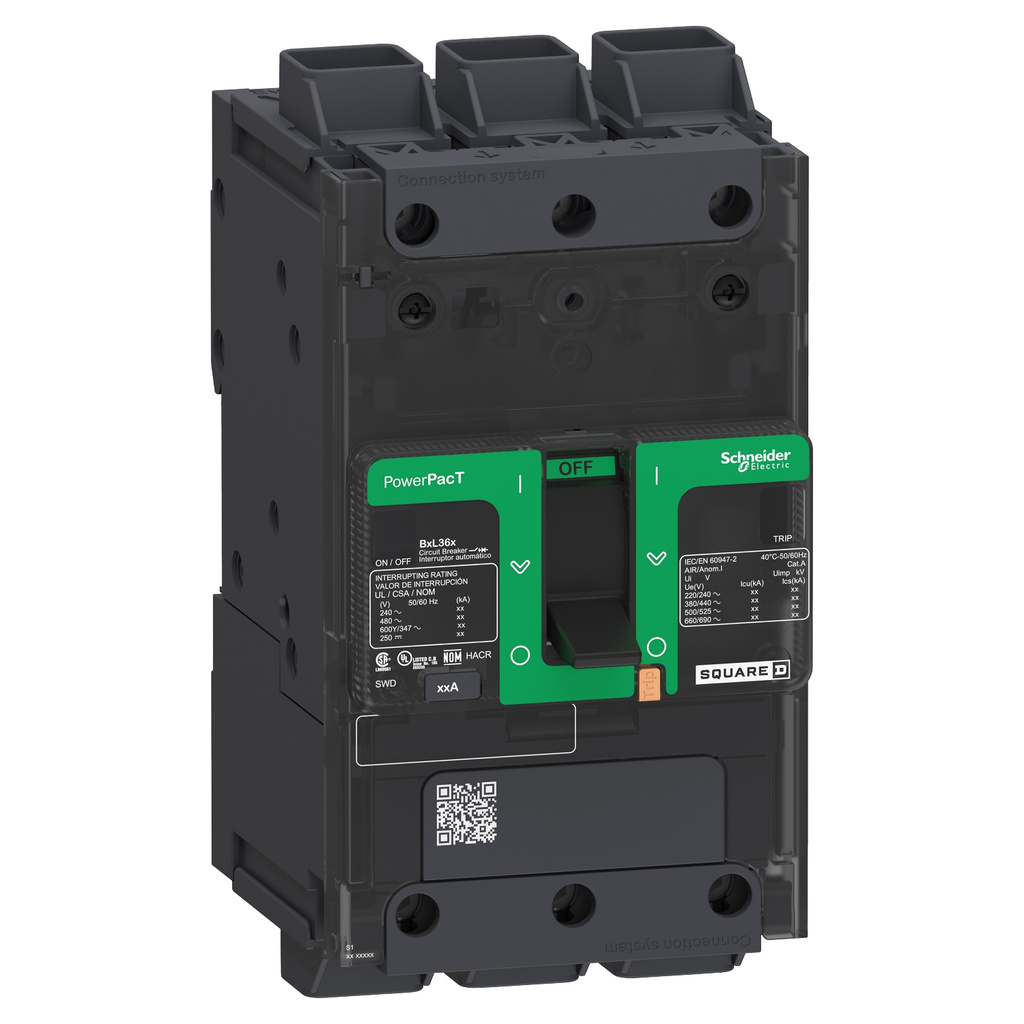

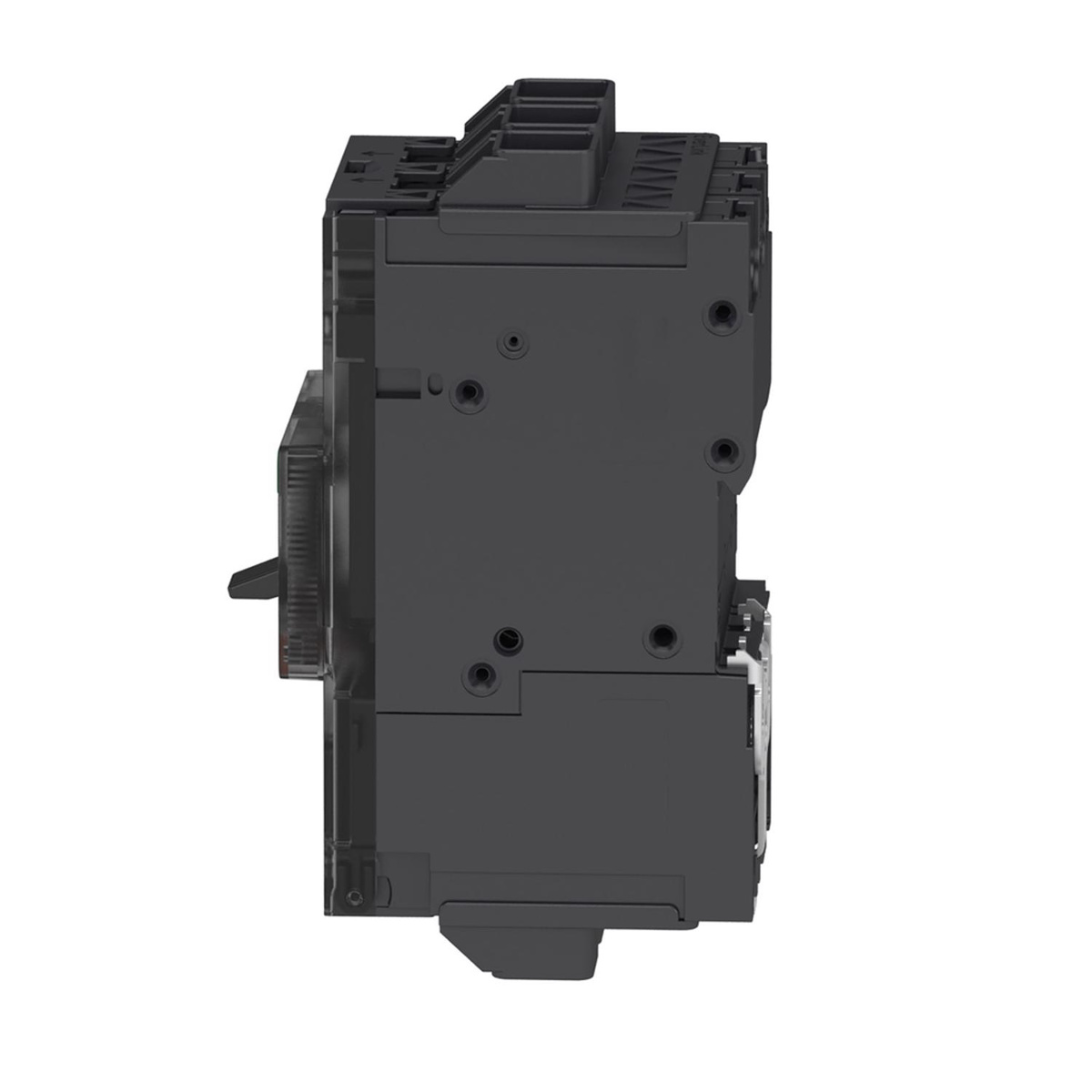

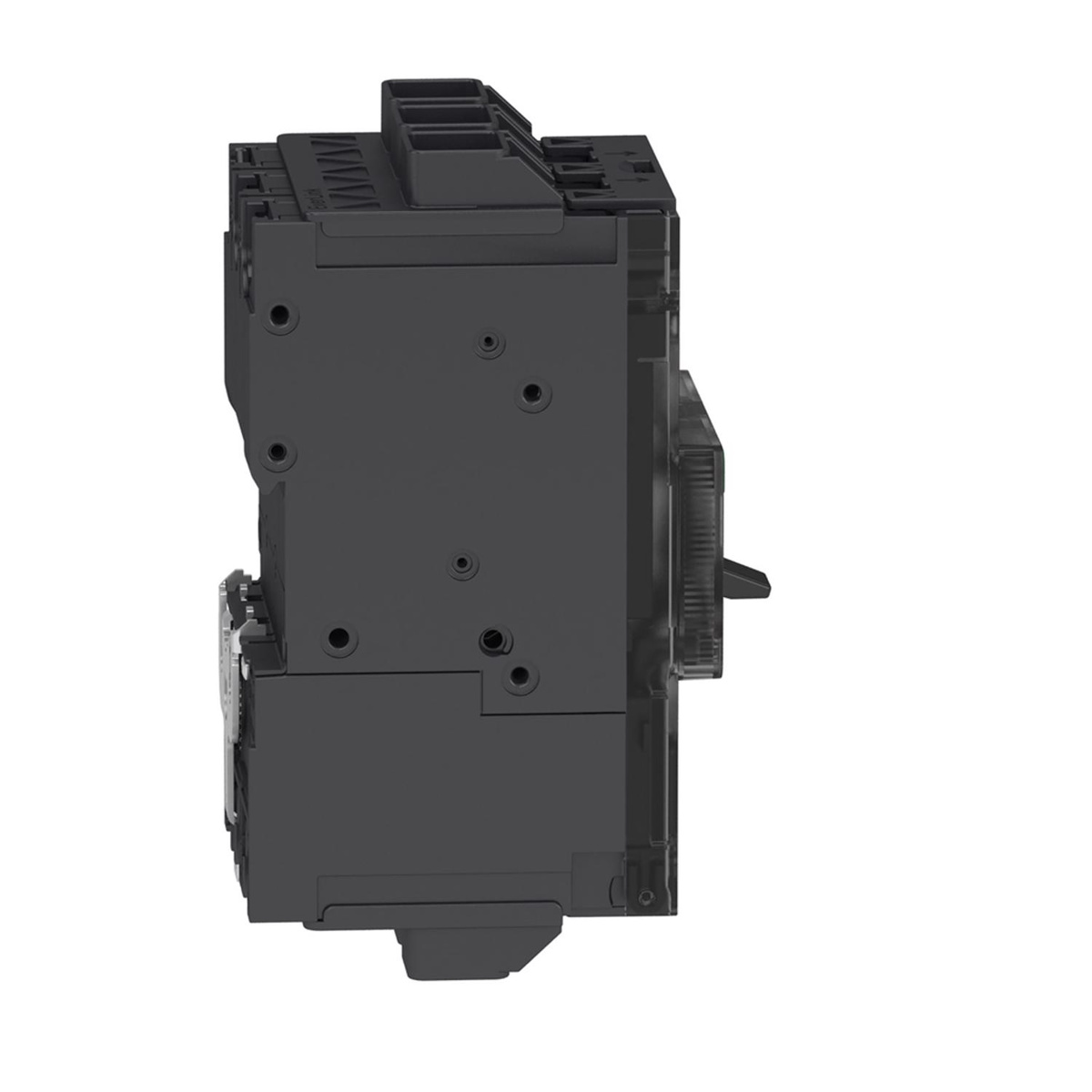

Square D PowerPacT™ BGL Automatic Molded Case Switches 125 A 600 VAC 18 kAIC 3 Pole 3 Phase
Related Items
Select Options
| Brand | Square D |
| Includes | Auxiliary Switch |
| Mounting Type | clip-on 35 x 15 mm symmetrical DIN rail) ,, by screws plate) |
| Voltage | 600 VAC |
| Frame Type | B Frame |
| Interrupting Rating | 18 kAIC |
| Trip Range | 880 - 1320 A |
| Number of Phases | 3 Phase |
| Wire Size | 6 - 2/0 AWG |
| Trip Type | Adjustable Magnetic Trip |
| Amperage | 125 A |
| Circuit Breaker Type | Molded Case Breaker |
| Indicator Type | Common Trip |
| Number of Poles | 3 Pole |
| Product Certifications | UL |
| Wire Stripping Length | 20 mm |
| [Ith] Conventional Free Air Thermal Current | 125 A |
| Magnetic Tripping Current | 1320-1320 A |
| PowerPacT: The New Generation of Molded Case Circuit Breakers (MCCB) - brochure - 998-21101950_NAM_PowerPacT (pdf) | Brochure |
|
| Certificate 2 | Compliance |
|
| PowerPact B-frame Molded Case Circuit Breakers Brochure - 0611BR1601 (pdf) | Brochure |
|
| Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf) | Catalog |
|
| Certificate 1 | Compliance |
|
| PowerPacT B-Frame 2, 3 and 4-Pole Circuit Breakers and Automatic Switches Installation - GDE55878+Rev.+02 (pdf) | Installation and Instruction Manuals |
|
