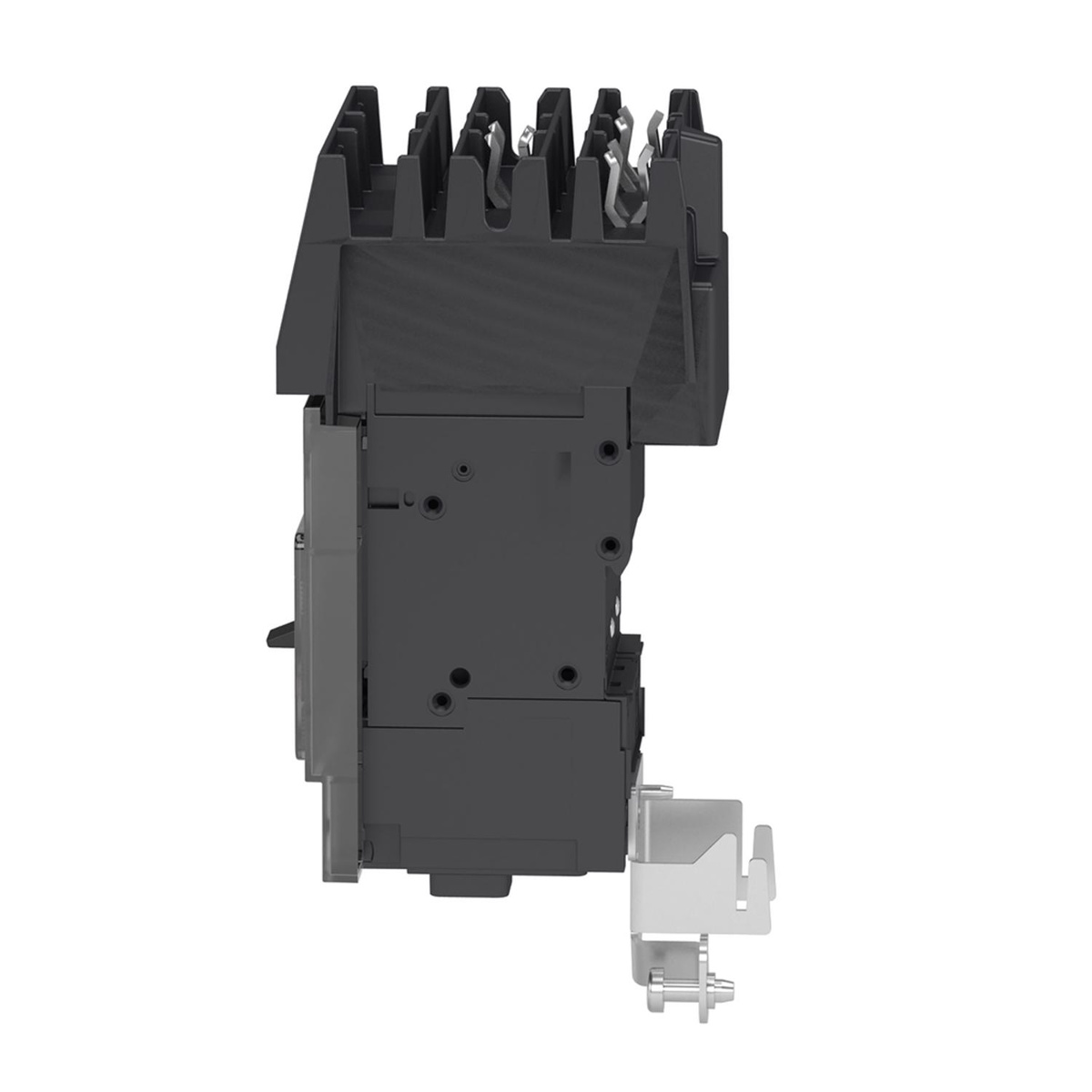

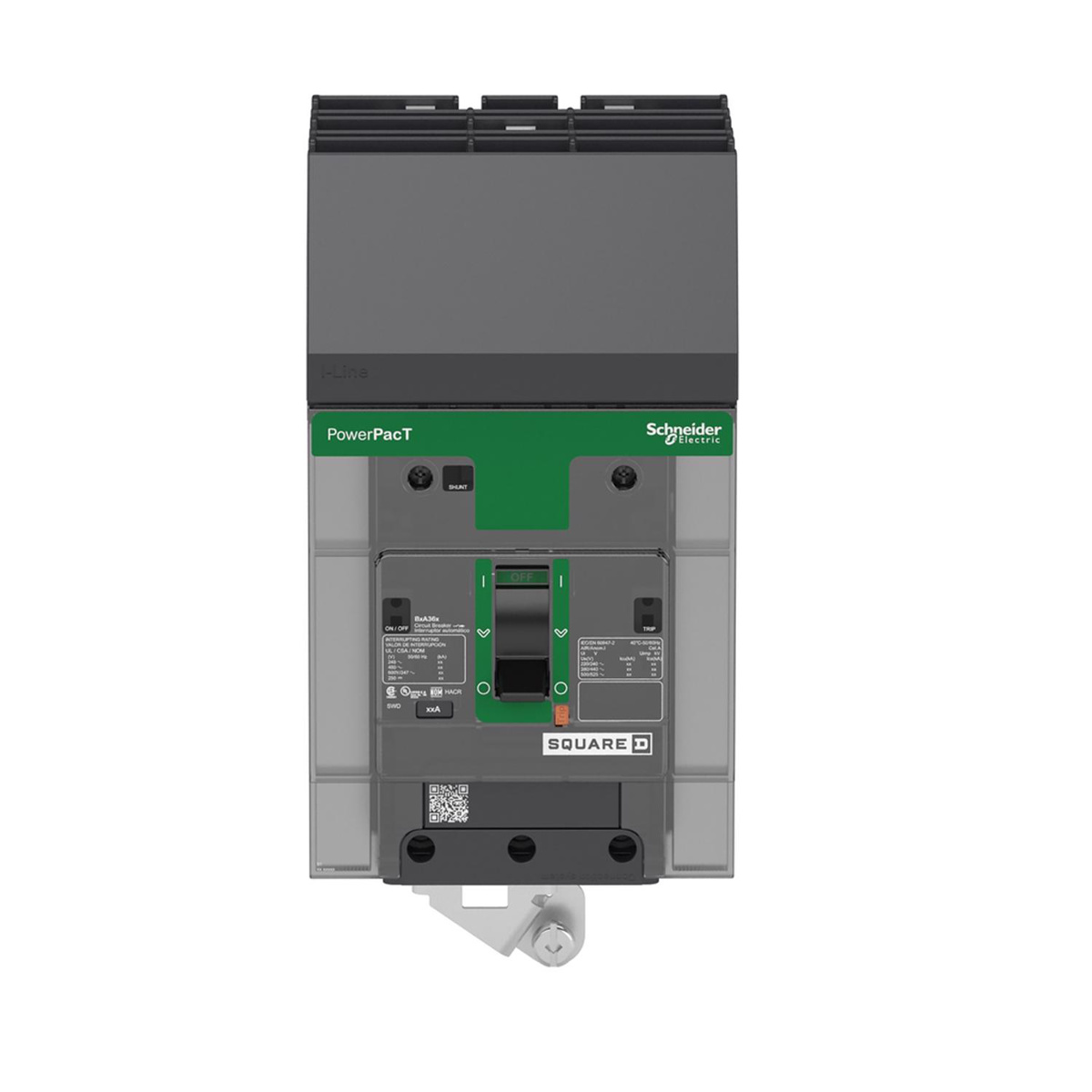

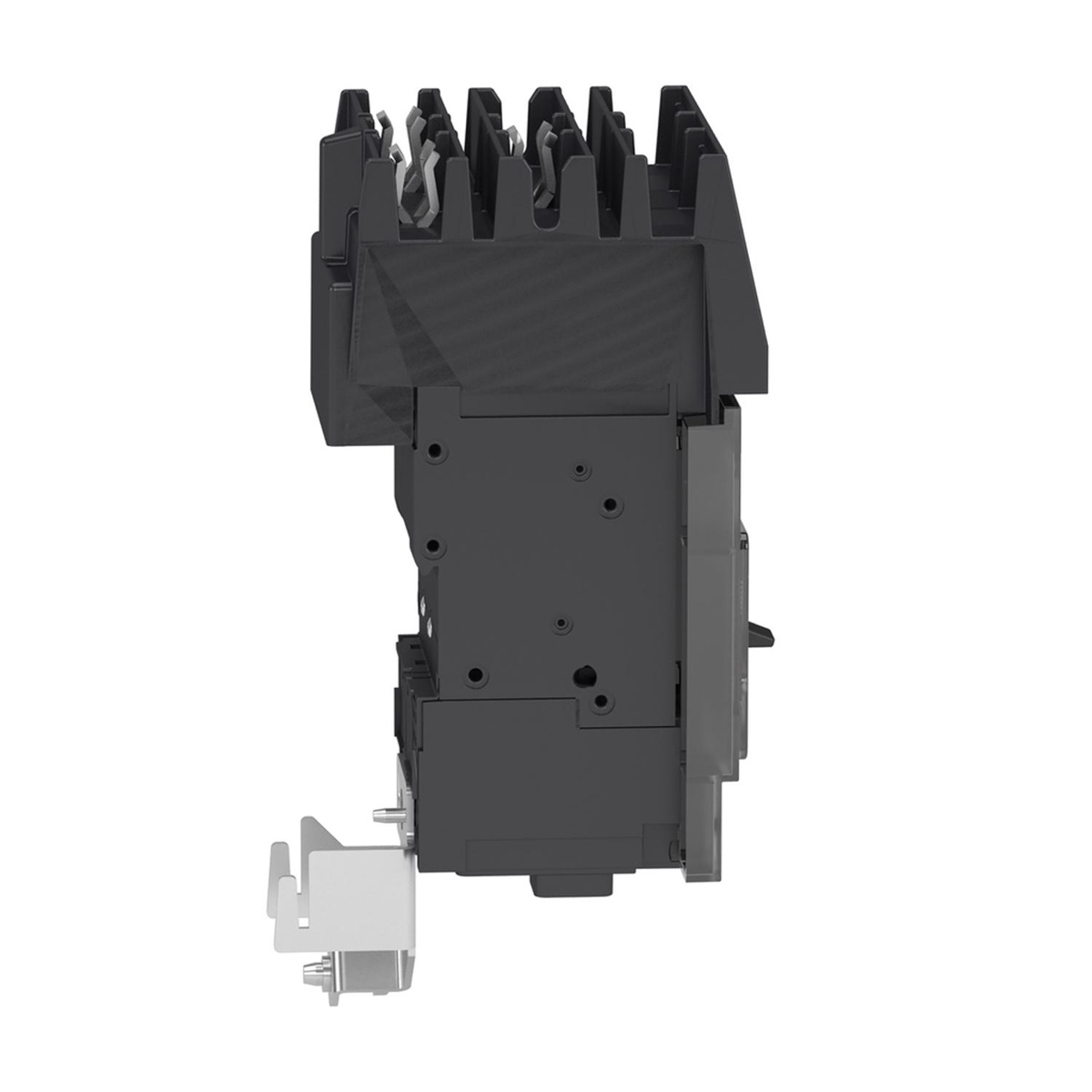

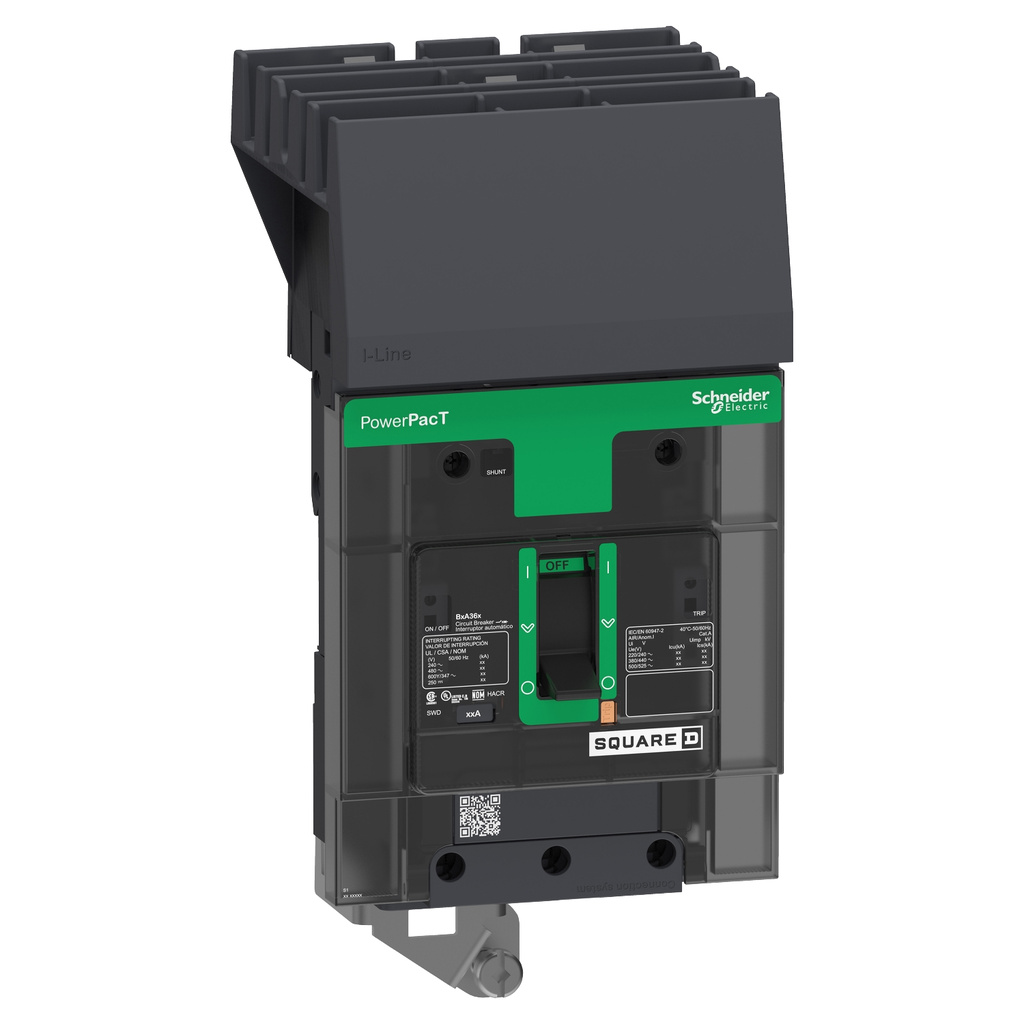

Square D PowerPacT™ BJA B Frame Circuit Breakers 40-40 A 600Y/347 VAC 25 kAIC 3 Pole 3 Phase
PowerPact™ Circuit Breakers
- BJA Series
- B Frame
| Brand | Square D |
| Includes | Auxiliary Switch |
| Mounting Type | I-Line |
| Voltage | 600Y/347 VAC |
| Frame Type | B Frame |
| Interrupting Rating | 25 kAIC |
| Number of Phases | 3 Phase |
| Wire Size | 14 - 2/0 AWG |
| Trip Type | Fixed Thermal and Magnetic Trip |
| Amperage | 40-40 A |
| Circuit Breaker Type | Molded Case Breaker |
| Indicator Type | Common Trip |
| Number of Poles | 3 Pole |
| Net Weight | 1.315 kg |
| Product Certifications | UL ,, IEC ,, CCC ,, EAC ,, CSA ,, NOM |
| Wire Stripping Length | 20 mm |
| [Ith] Conventional Free Air Thermal Current | 40 A |
| PowerPact B-frame Molded Case Circuit Breakers Brochure - 0611BR1601 (pdf) | Brochure |
|
| Catalog 2 | Catalog |
|
| Certificate 1 | Compliance |
|
| Certificate 3 | Compliance |
|
| PowerPacT B I-Line Circuit Breakers Installation Instructions - GDE55876 (pdf) | Installation and Instruction Manuals |
|
| Certificate 2 | Compliance |
|
| PowerPacT: The New Generation of Molded Case Circuit Breakers (MCCB) - brochure - 998-21101950_NAM_PowerPacT (pdf) | Brochure |
|
| Square D I-Line Panelboards and Switchboards Brochure - 2100BR1301 (pdf) | Brochure |
|
