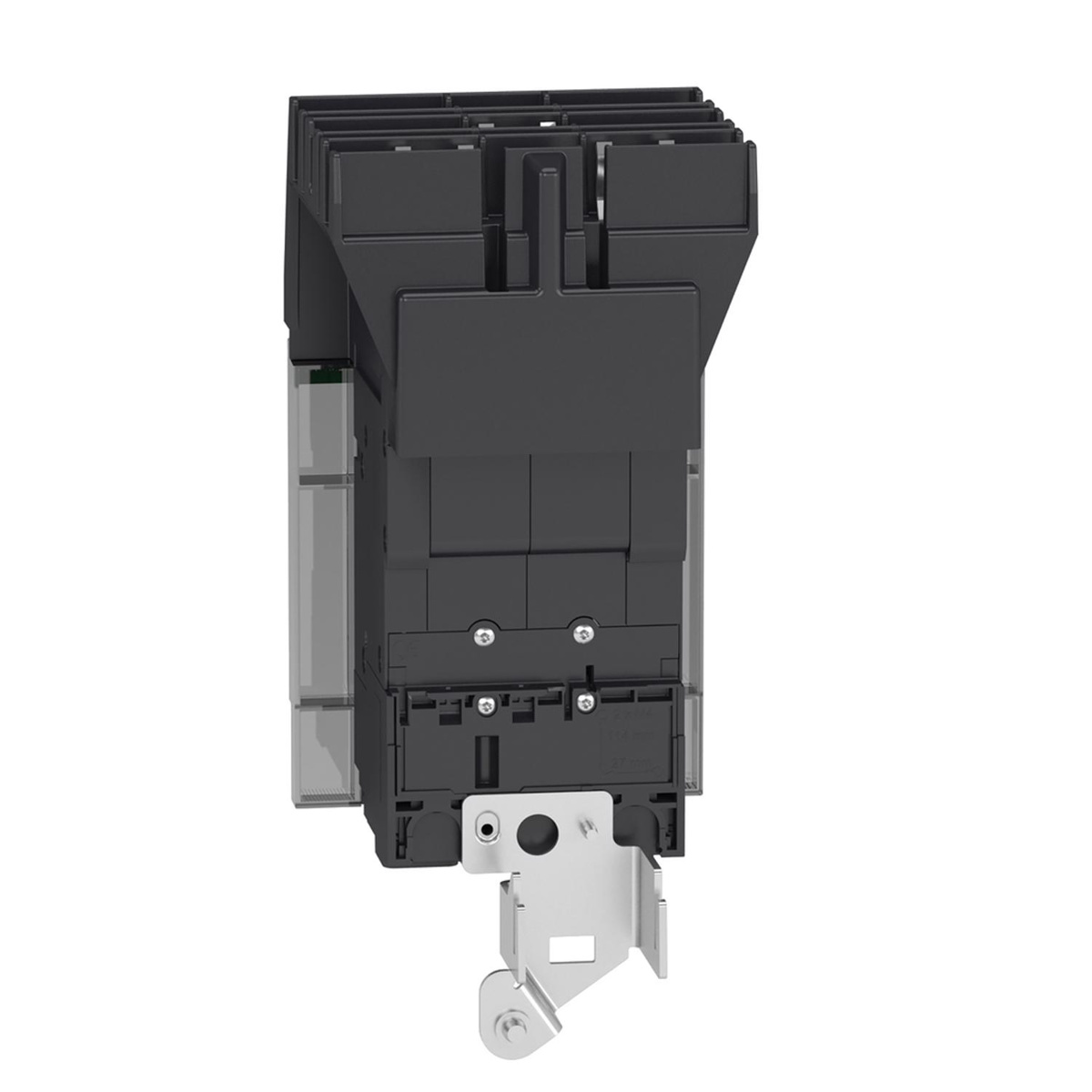

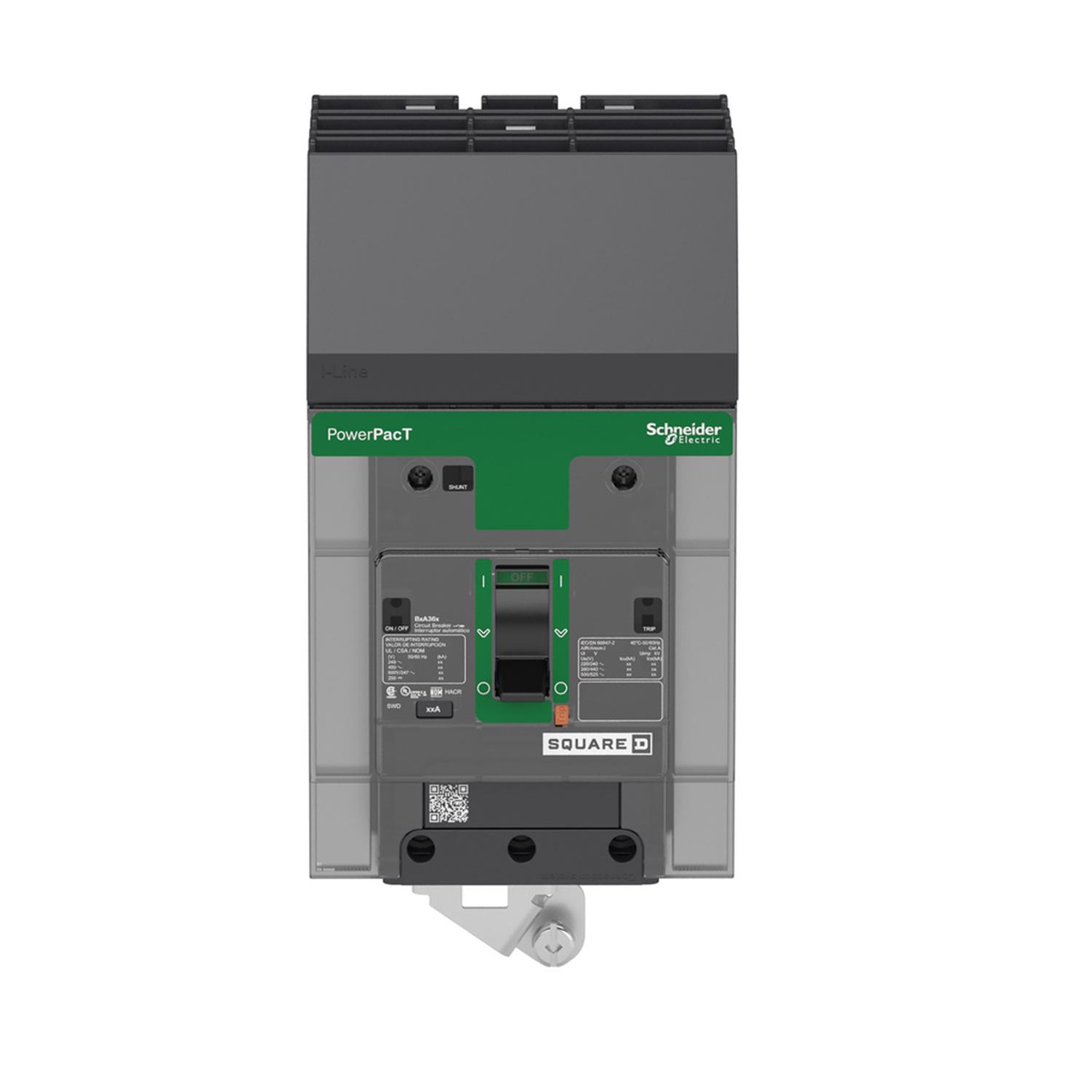

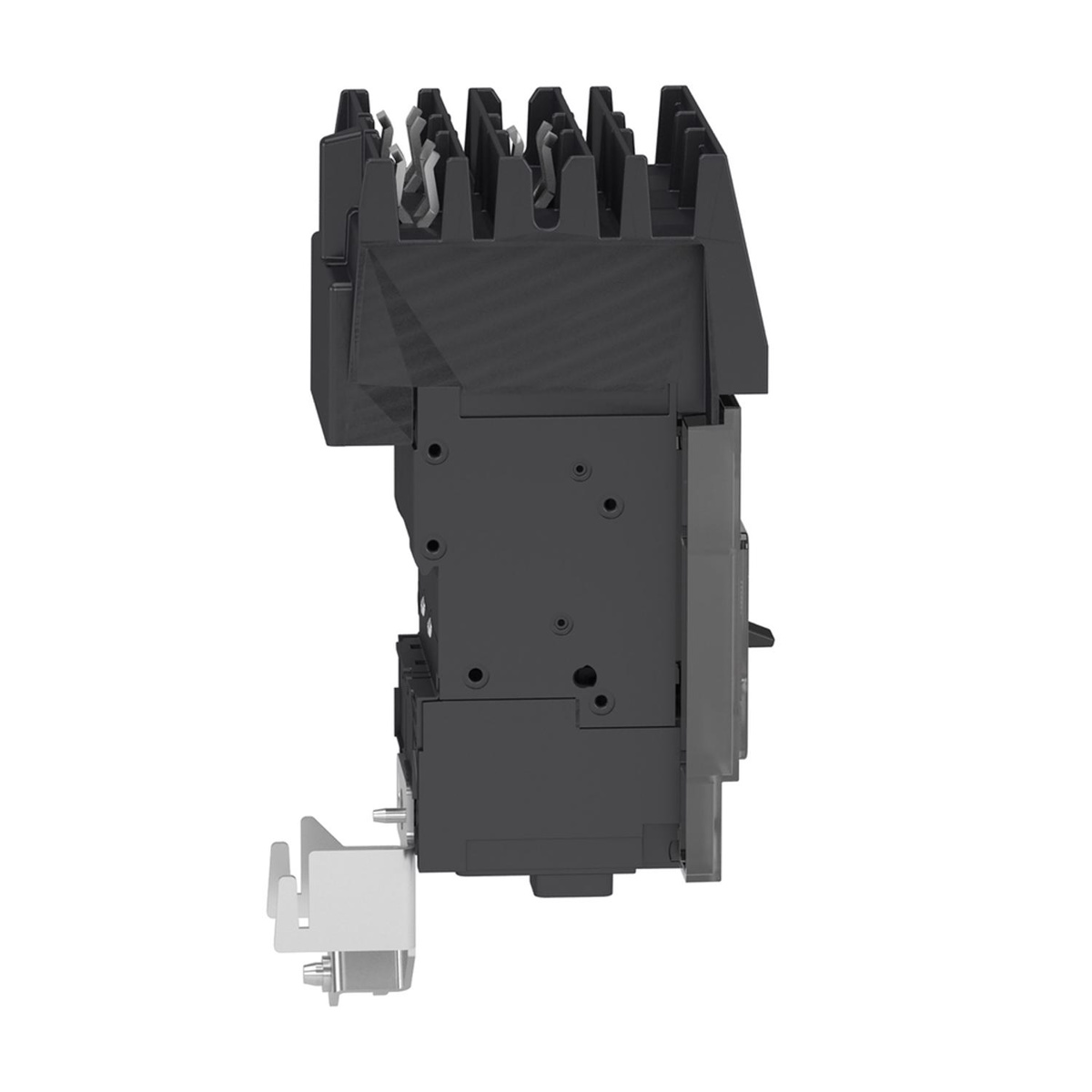

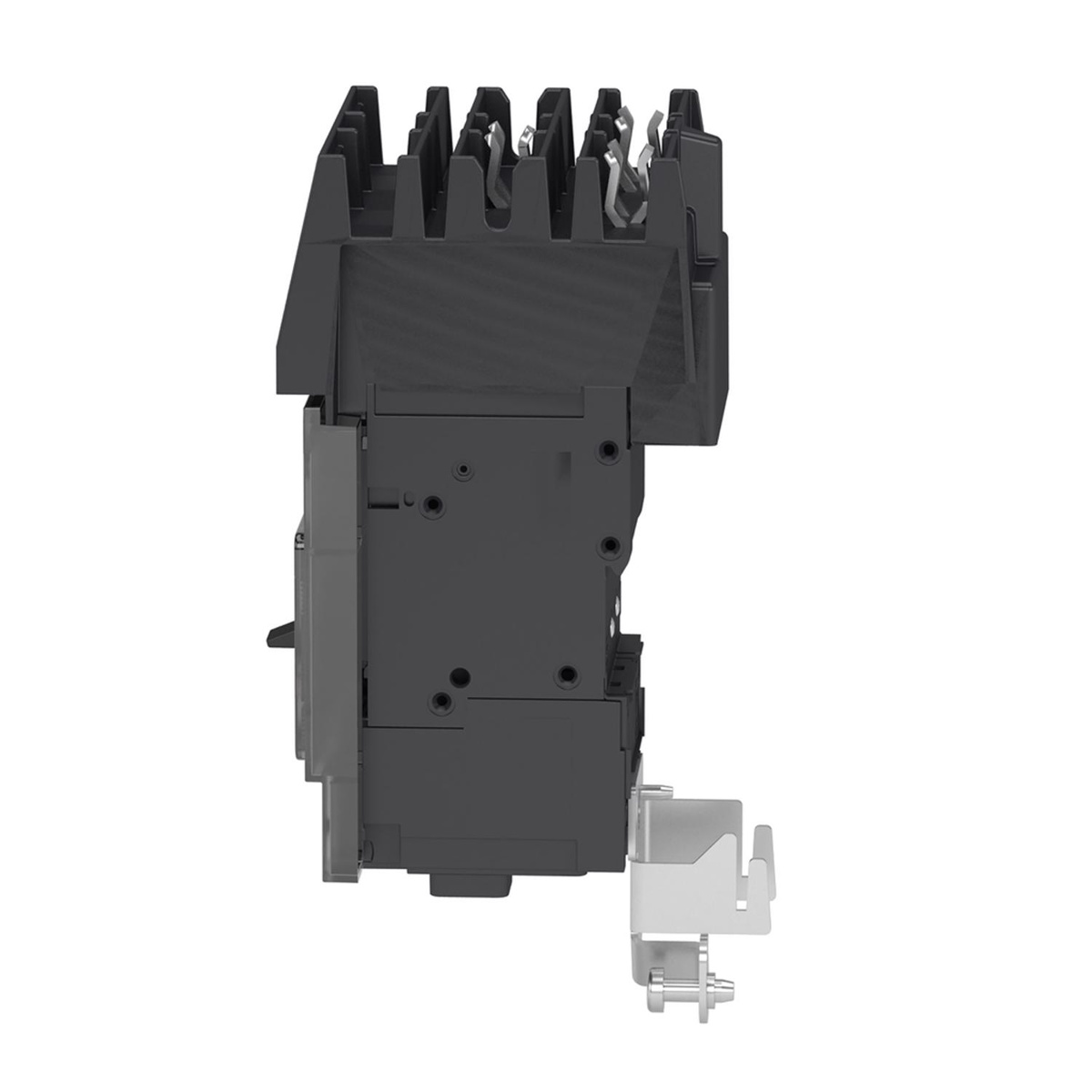

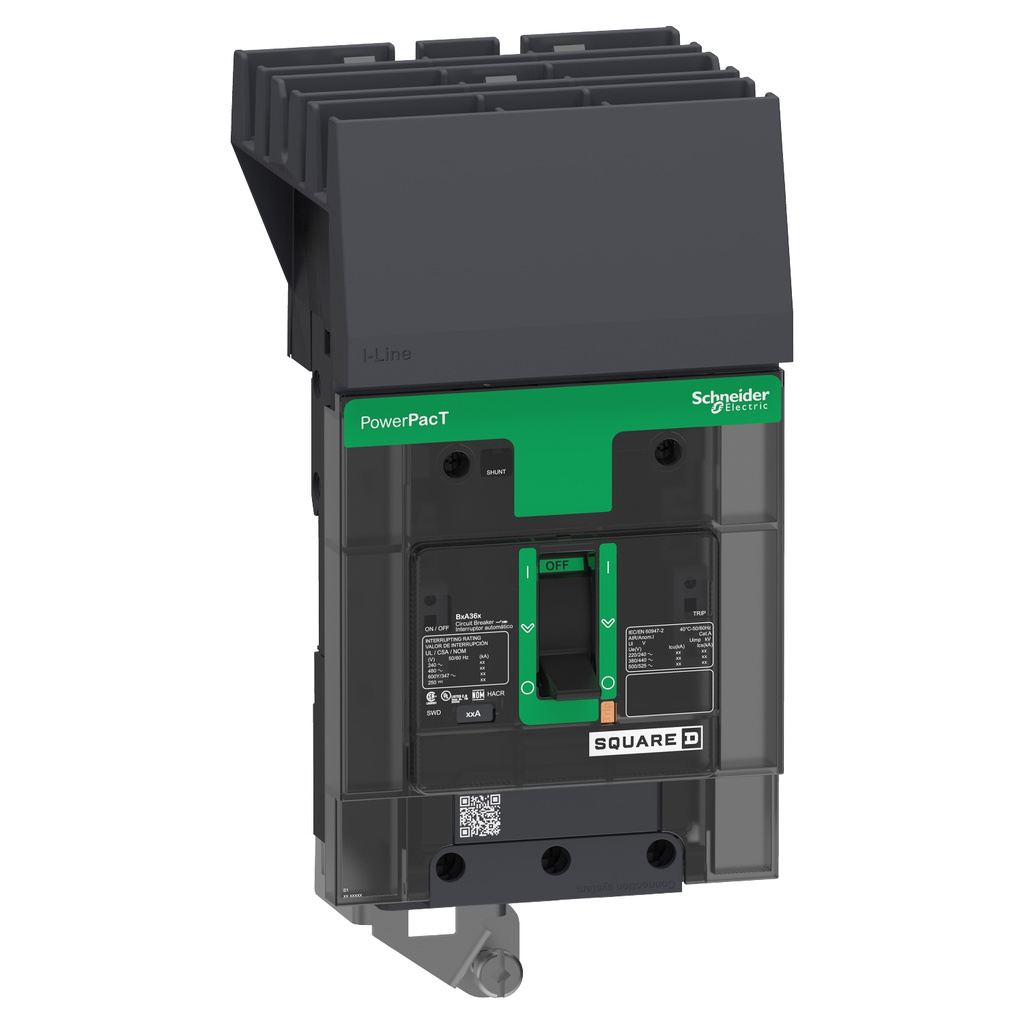

Square D PowerPacT™ BJA B Frame Circuit Breakers 45 A 600Y/347 VAC 25 kAIC 3 Pole 3 Phase
PowerPact™ Circuit Breakers
- BJA Series
- B Frame
| Brand | Square D |
| Includes | Auxiliary Switch |
| Mounting Type | I-Line |
| Voltage | 600Y/347 VAC |
| Frame Type | B Frame |
| Interrupting Rating | 25 kAIC |
| Number of Phases | 3 Phase |
| Wire Size | 14 - 2/0 AWG |
| Trip Type | Fixed Thermal and Magnetic Trip |
| Amperage | 45 A |
| Circuit Breaker Type | Molded Case Breaker |
| Indicator Type | Common Trip |
| Number of Poles | 3 Pole |
| Net Weight | 1.315 kg |
| Certificate 3 | Compliance |
|
| Square D I-Line Panelboards and Switchboards Brochure - 2100BR1301 (pdf) | Brochure |
|
| PowerPacT B I-Line Circuit Breakers Installation Instructions - GDE55876 (pdf) | Installation and Instruction Manuals |
|
| Certificate 2 | Compliance |
|
| Certificate 1 | Compliance |
|
| PowerPact B-frame Molded Case Circuit Breakers Brochure - 0611BR1601 (pdf) | Brochure |
|
| PowerPacT: The New Generation of Molded Case Circuit Breakers (MCCB) - brochure - 998-21101950_NAM_PowerPacT (pdf) | Brochure |
|
| Catalog 2 | Catalog |
|
Installing LV426920 Interphase Barrier onto PowerPact B Breakers | Schneider Electric Support
Tutorial for installing the LV426920 Interphase Barrier insulation accessory on PowerPact B-Frame...
Installing LV426920 Interphase Barrier onto PowerPact B Breakers | Schneider Electric Support
Tutorial for installing the LV426920 Interphase Barrier insulation accessory on PowerPact B-Frame...
Installing Mechanical Lug Kits on PowerPact B-Frame Breakers | Schneider Electric Support
Tutorial for installing aluminum or copper mechanical lug kits onto the PowerPact B-Frame Molded...
Mounting Shunt/Undervoltage Trip to PowerPact™ B-Frame Circuit Breakers | Schneider Electric Support
Tutorial for installing the AC Shunt Trip or Undervoltage Relay on PowerPact™ B-Frame Molded Case...
Installing Compression Lug Kits on PowerPact B-Frame Breakers | Schneider Electric Support
Tutorial for installing compression lug kits onto the PowerPact B-Frame Molded Case Circuit ...
Installing the Direct Mount Rotary Handle onto PowerPact B Breakers | Schneider Electric Support
Tutorial for installing the LV426930 Direct Mount Rotary Handle on PowerPact B-Frame Molded Case...
