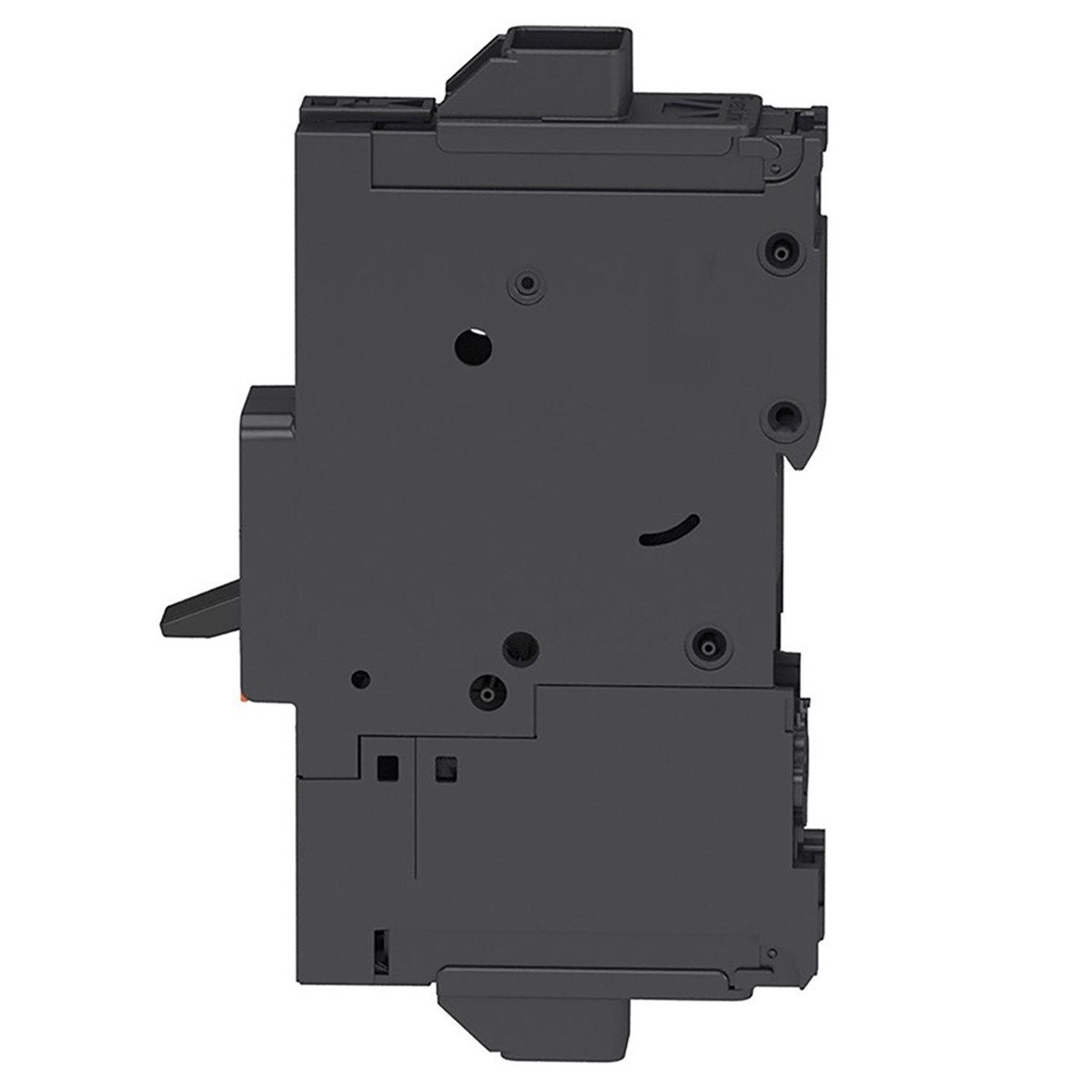

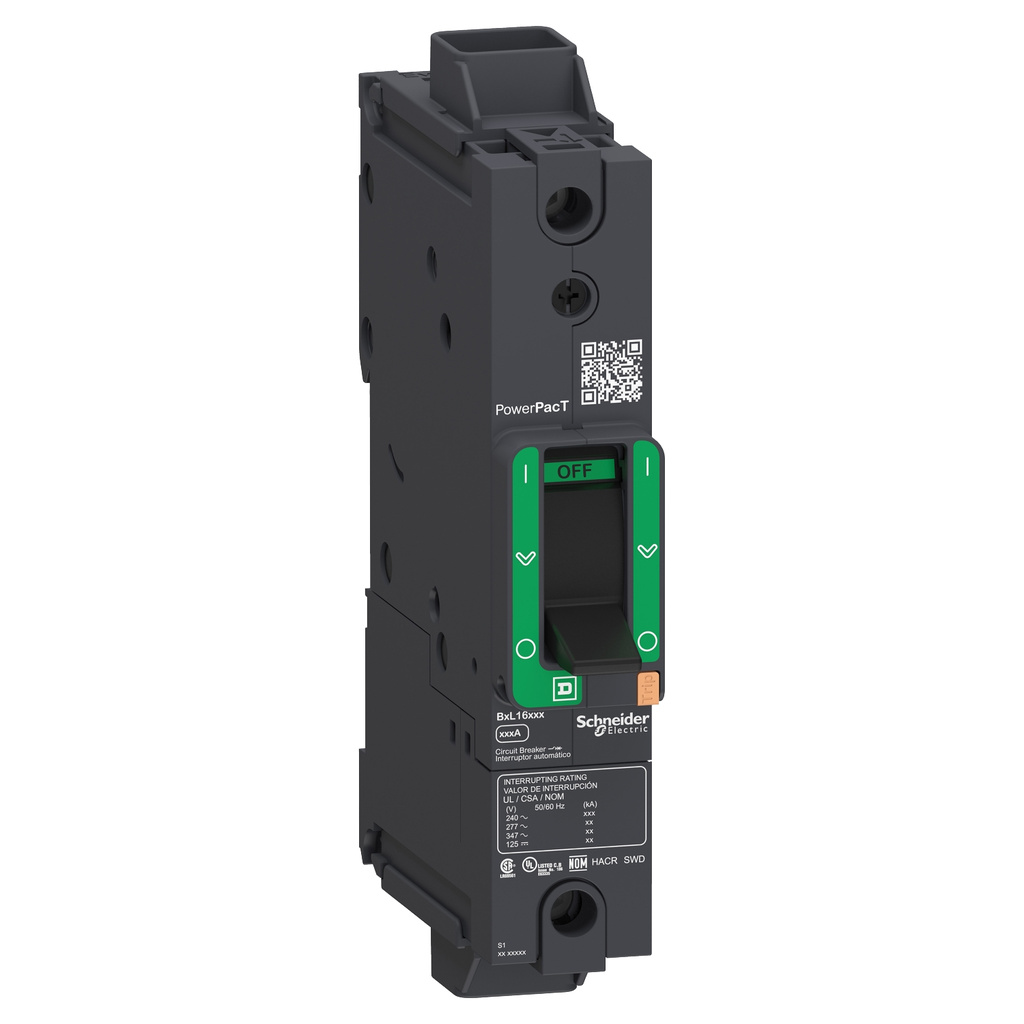

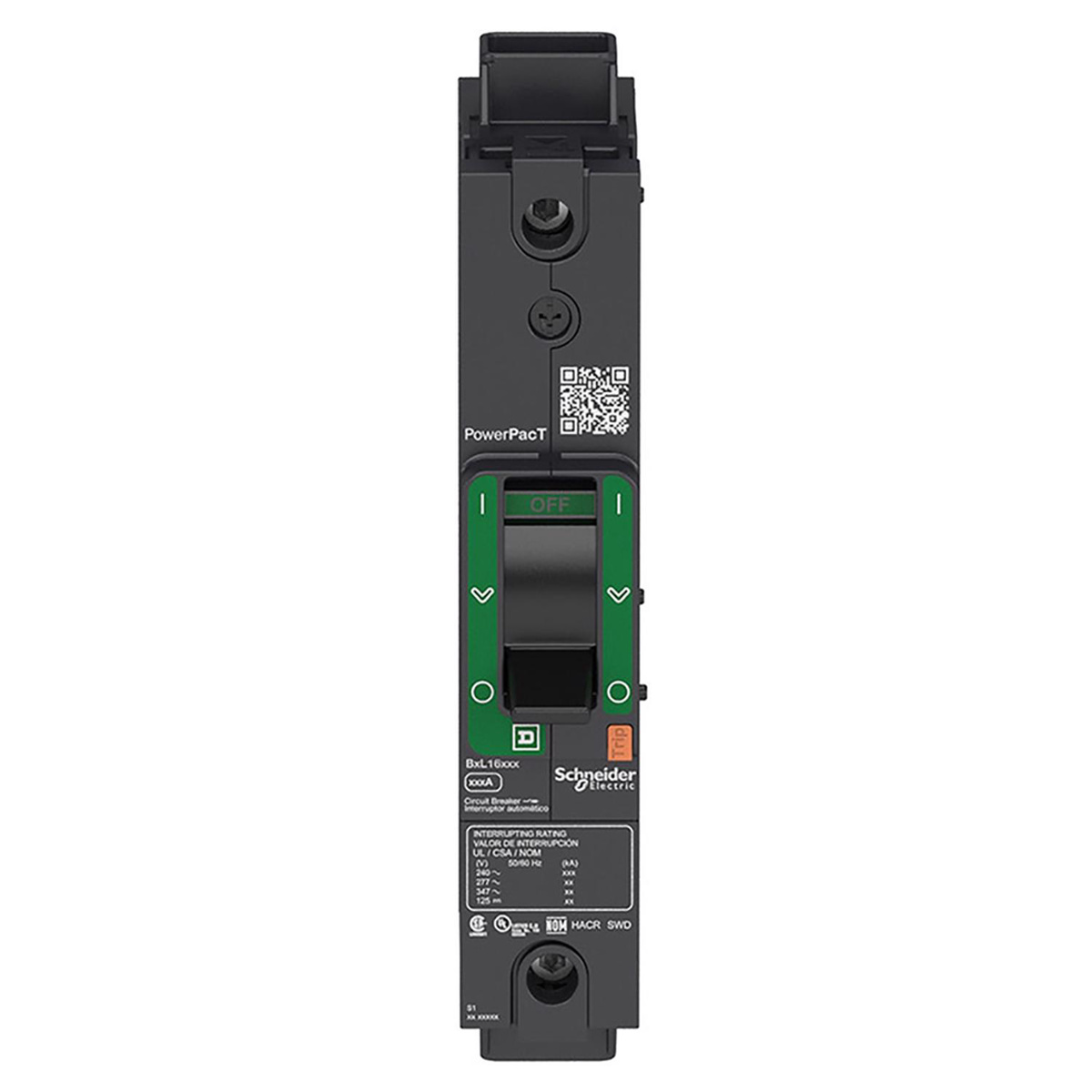

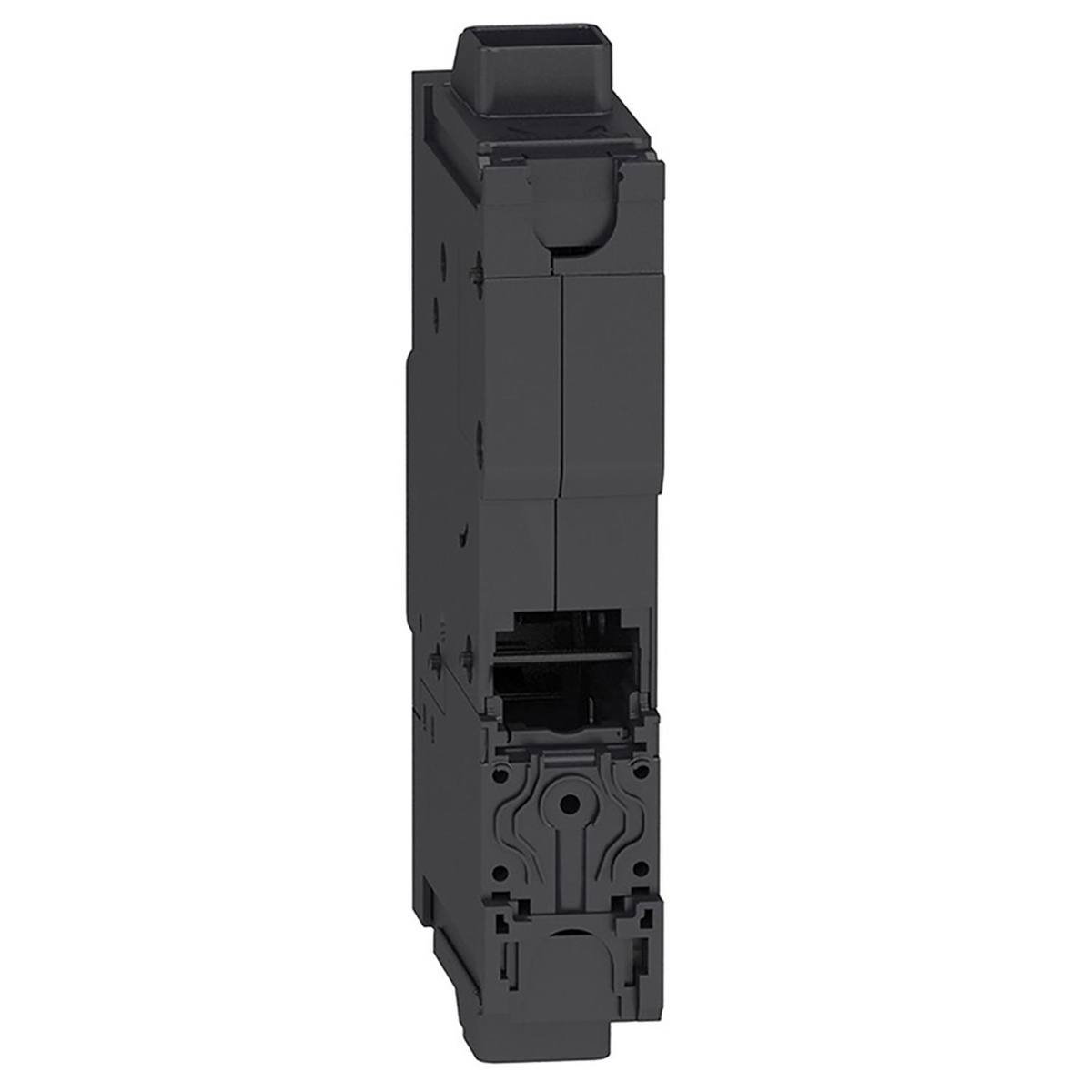

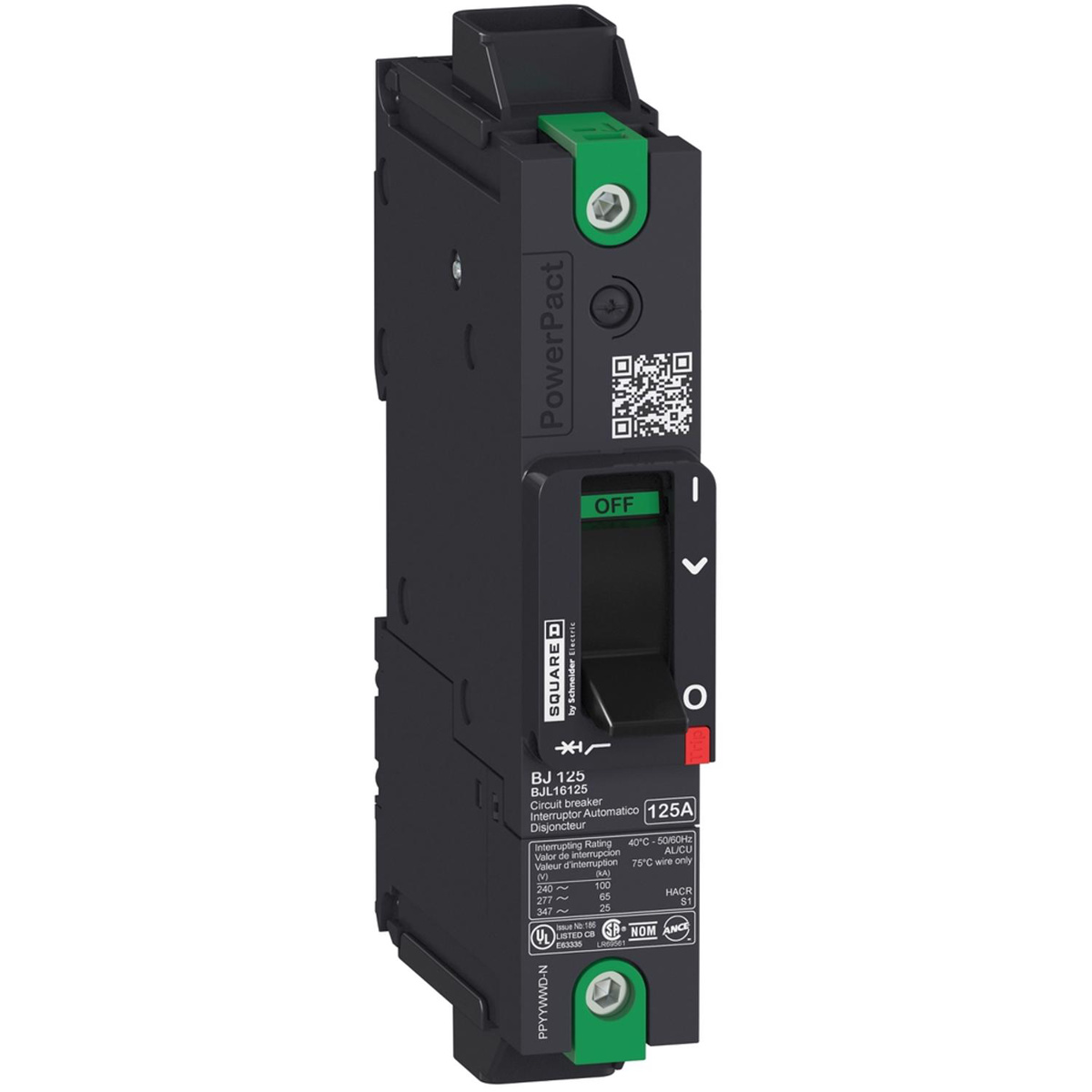

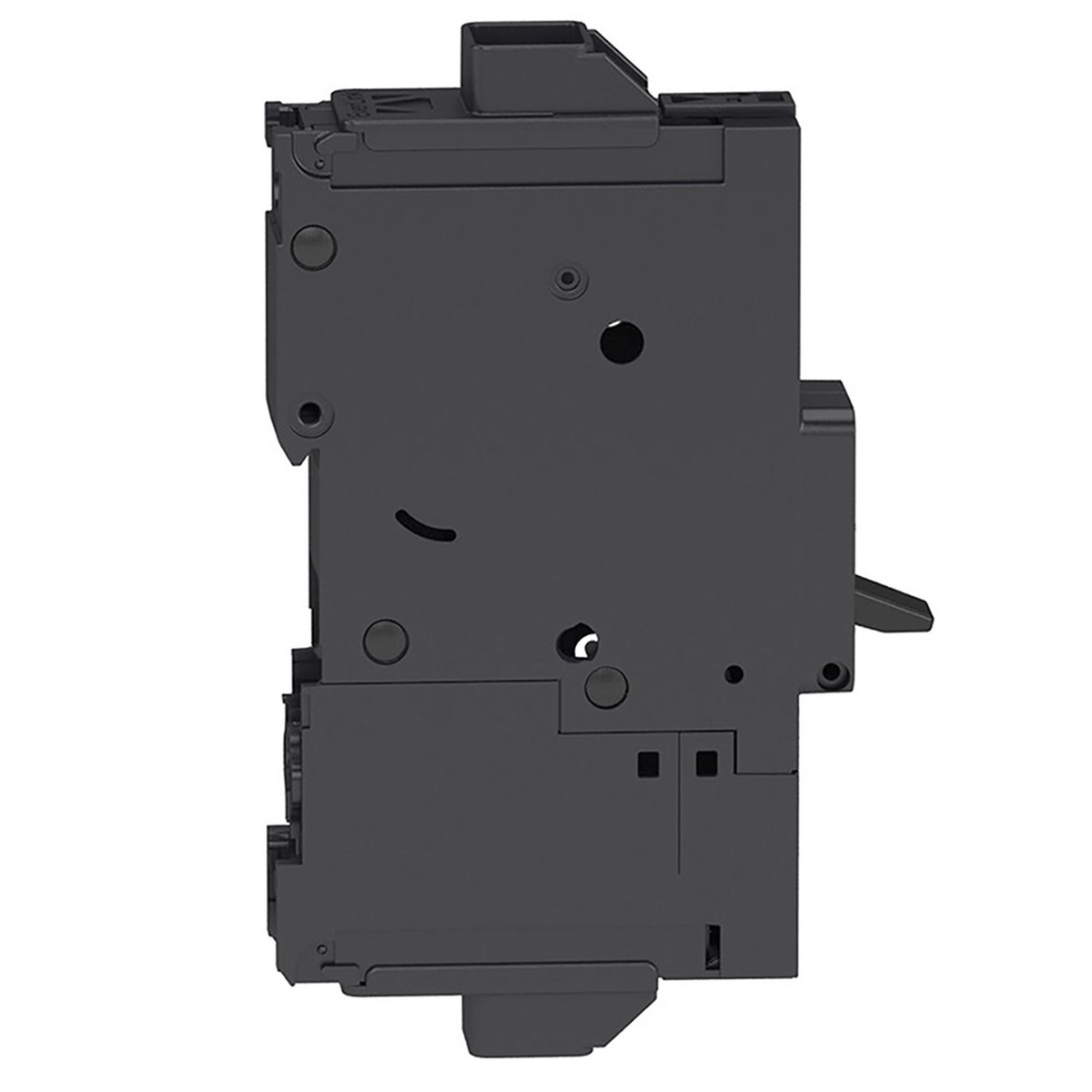

Square D PowerPacT™ BJL B Frame Circuit Breakers 15 A 600Y/347 VAC 25 kAIC 1 Pole
PowerPact™ Circuit Breakers
- BJL Series
- B Frame
Related Items
Select Options
| Brand | Square D |
| Voltage | 600Y/347 VAC |
| Frame Type | B Frame |
| Interrupting Rating | 25 kAIC |
| Trip Type | Fixed Thermal and Magnetic Trip |
| Amperage | 15 A |
| Circuit Breaker Type | Molded Case Breaker |
| Number of Poles | 1 Pole |
| Net Weight | 0.51 kg |
| PowerPacT: The New Generation of Molded Case Circuit Breakers (MCCB) - brochure - 998-21101950_NAM_PowerPacT (pdf) | Brochure |
|
| Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf) | Catalog |
|
| PowerPact B-frame Molded Case Circuit Breakers Brochure - 0611BR1601 (pdf) | Brochure |
|
| PowerPacT B-Frame 2, 3 and 4-Pole Circuit Breakers and Automatic Switches Installation - GDE55878+Rev.+02 (pdf) | Installation and Instruction Manuals |
|
| Catalog Powerpact B Multistandard - LVPED216029EN (pdf) | Catalog |
|
| PowerPacT B-Frame One-Pole Circuit Breakers - Installation Instructions - EAV91187-02 (pdf) | Installation and Instruction Manuals |
|
