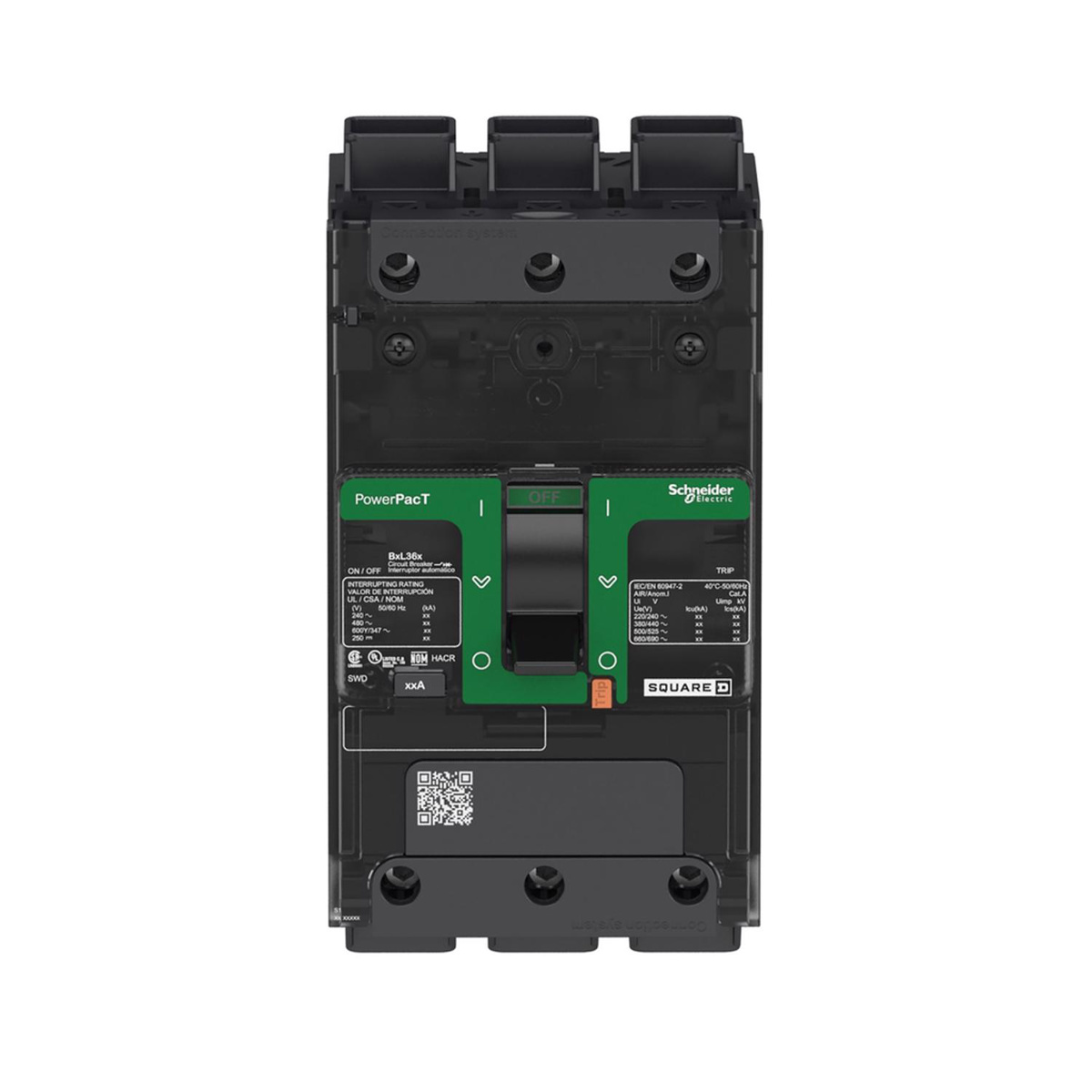

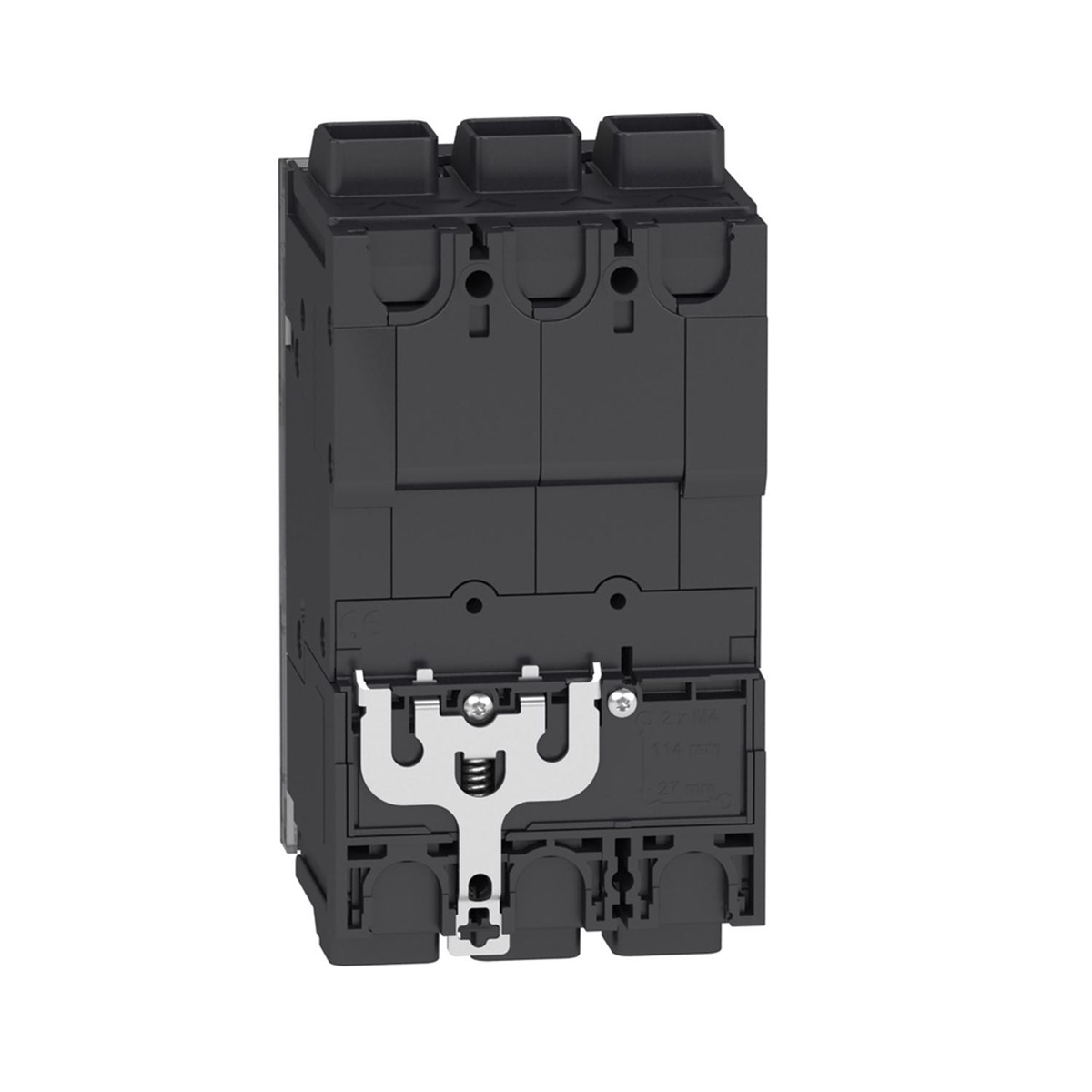

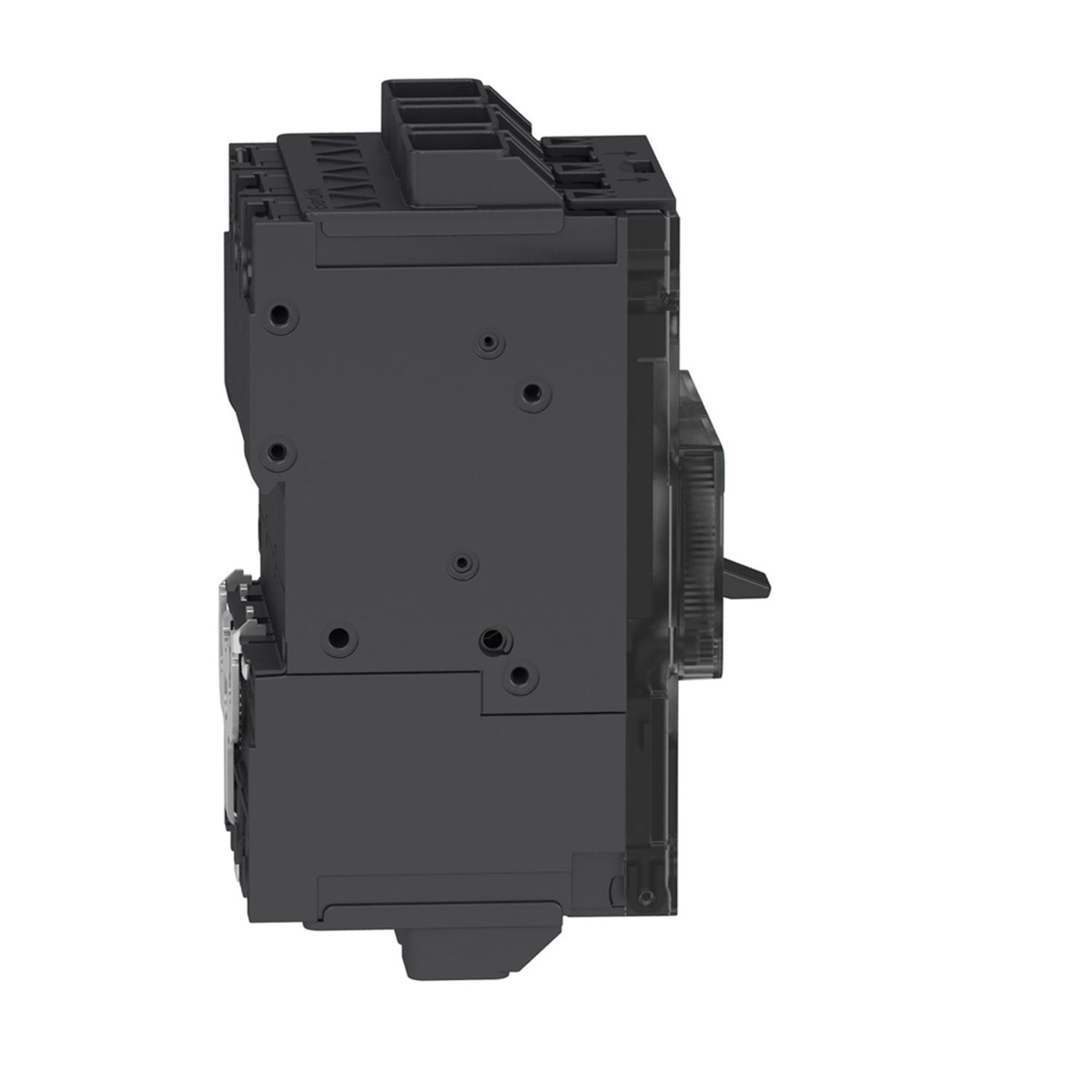

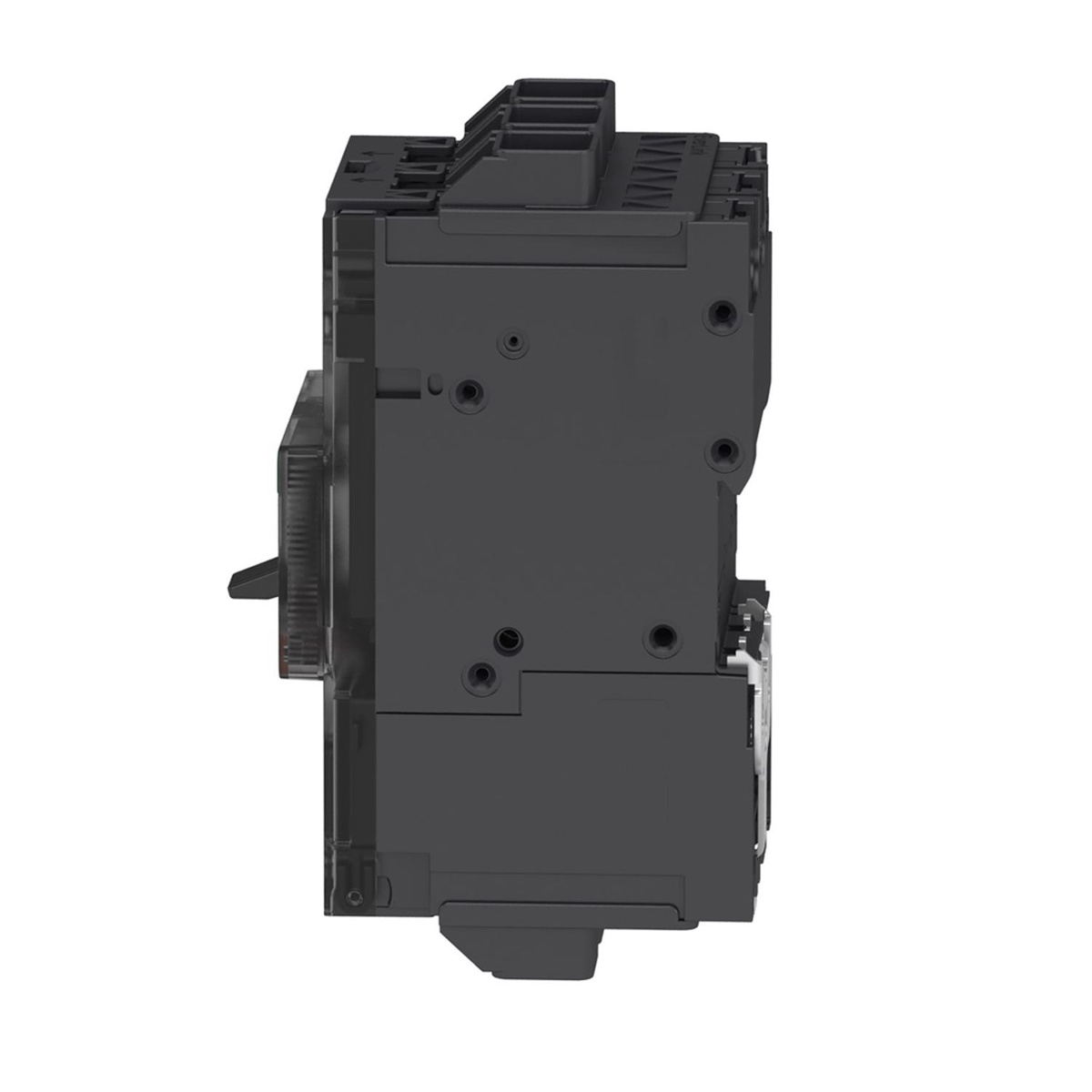

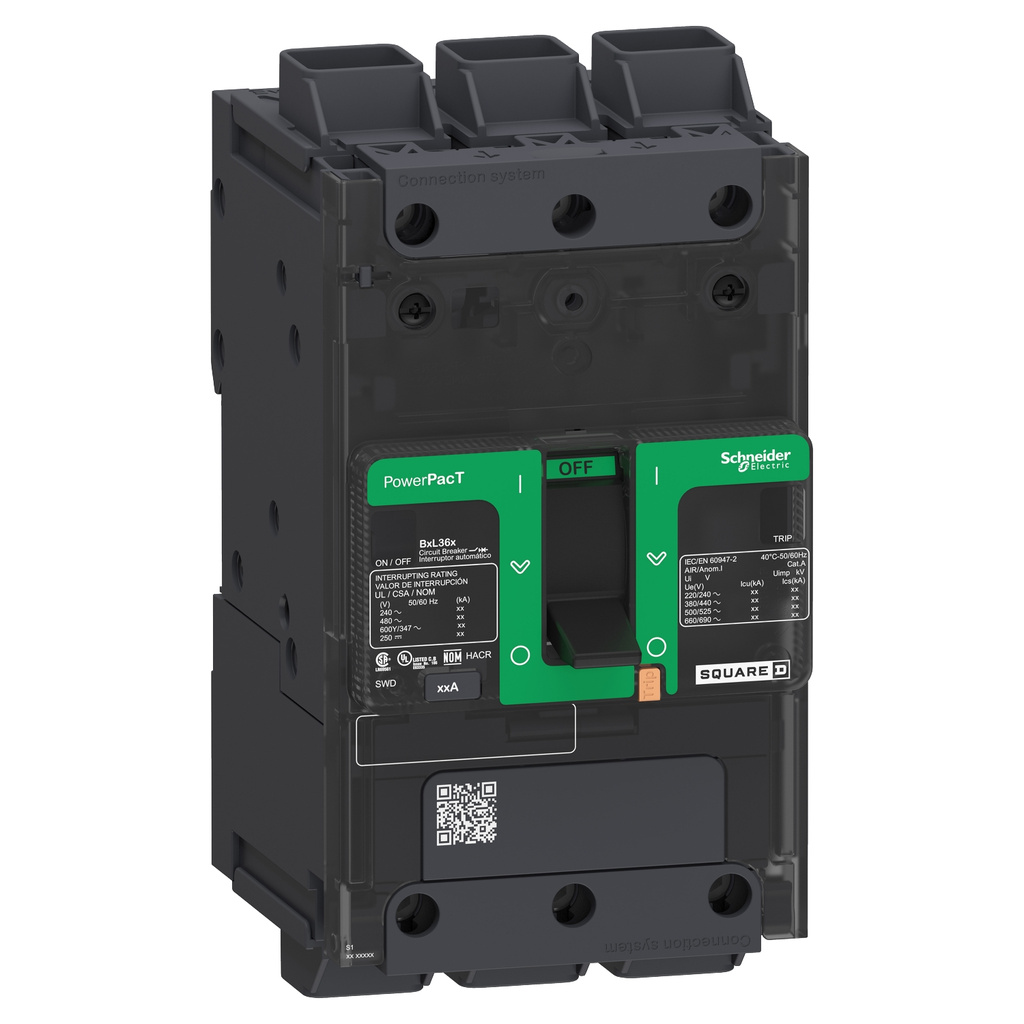

Square D PowerPacT™ BJL B Frame Circuit Breakers 15 A 600Y/347 VAC 25 kAIC 3 Pole

Mfg #: BJL36015LU

BOR #: 3554883

View all 35 in product family

Looking for prices?

PowerPact™ Circuit Breakers

Product can be ordered only in multiples of

Brand	Square D
Voltage	600Y/347 VAC
Frame Type	B Frame
Interrupting Rating	25 kAIC
Trip Type	Fixed Thermal and Magnetic Trip
Amperage	15 A
Circuit Breaker Type	Molded Case Breaker
Number of Poles	3 Pole
Net Weight	1.074 kg

Tutorial for installing the LV426974 3 Pole Everlink with Control Wire Terminal Lug Kit onto...

Tutorial for installing the LV426920 Interphase Barrier insulation accessory on PowerPact B-Frame...

The name already exists. Please enter a unique name.

Already Exists

List created successfully

You successfully added the product to your list with minimum order quantity.

Product Added

List updated successfully

empty name

There was a problem adding this product to your list. This may be because your list already contains 50 items.

PowerPact B-frame Molded Case Circuit Breakers Brochure - 0611BR1601 (pdf)	Brochure
PowerPacT B-Frame 2, 3 and 4-Pole Circuit Breakers and Automatic Switches Installation - GDE55878+Rev.+02 (pdf)	Installation and Instruction Manuals
Certificate 2	Compliance
Certificate 1	Compliance
Catalog 3	Catalog
Catalog 1	Catalog
PowerPacT: The New Generation of Molded Case Circuit Breakers (MCCB) - brochure - 998-21101950_NAM_PowerPacT (pdf)	Brochure
