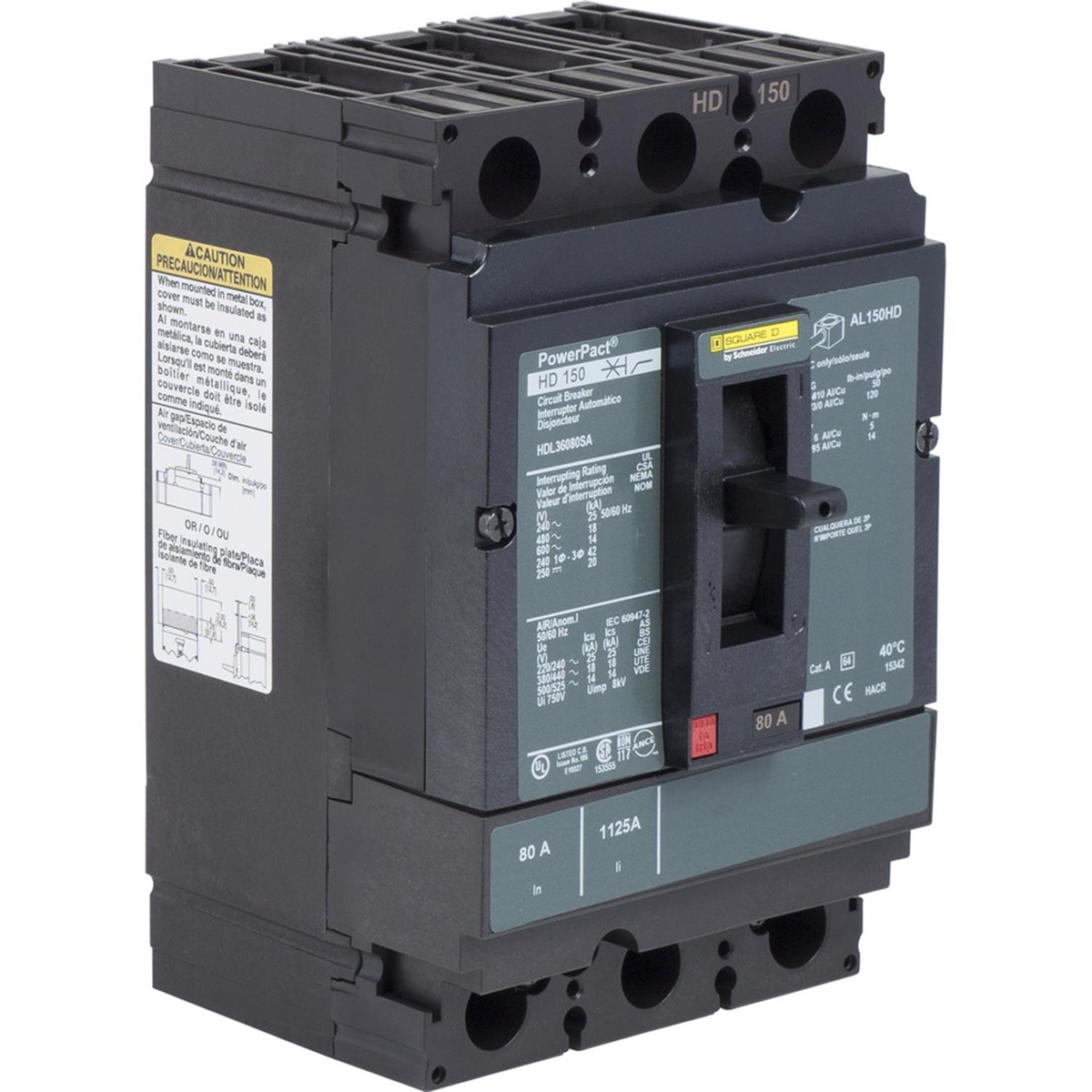

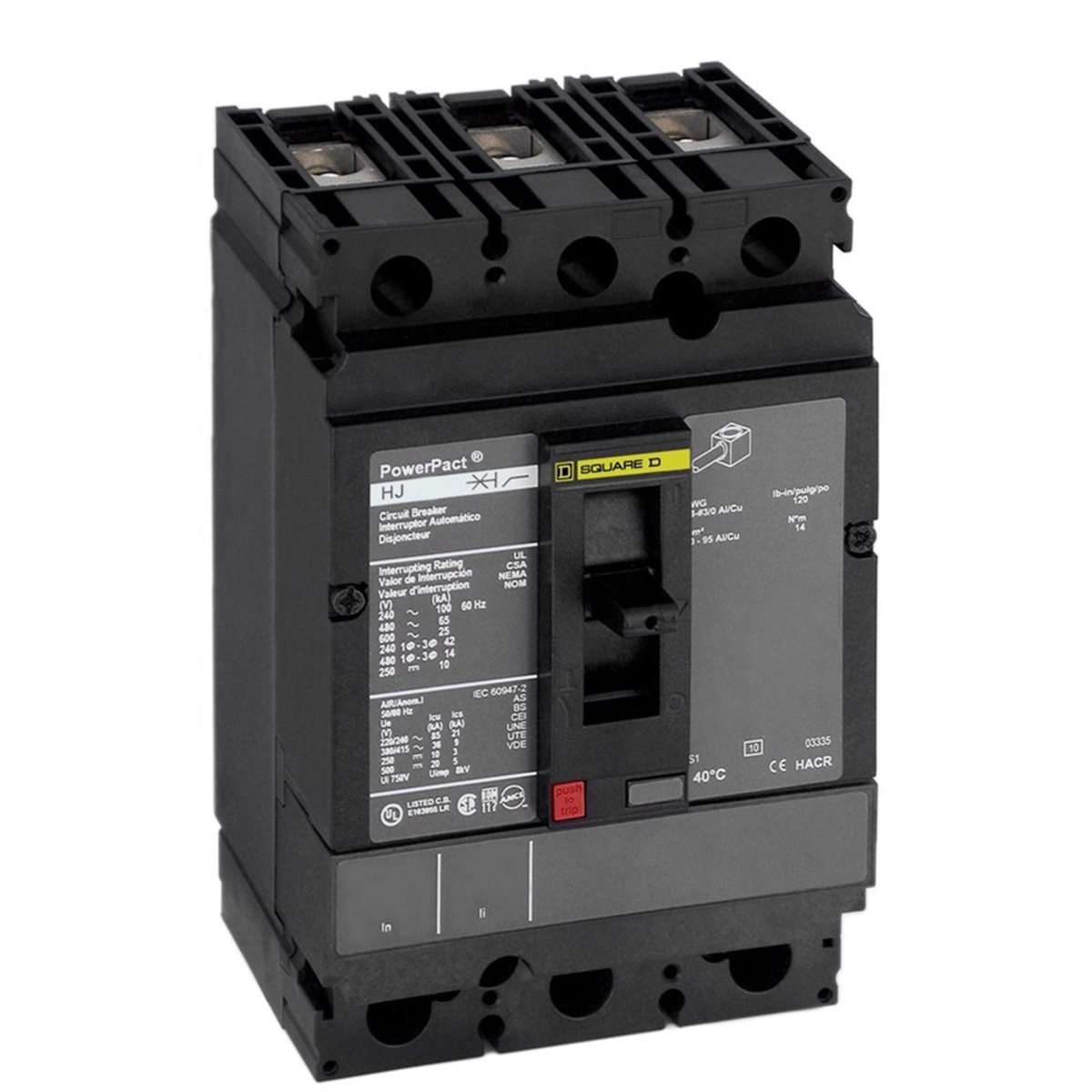

Square D PowerPacT™ HDL Shunt-trip Cable-in / Cable-out Molded Case Industrial Circuit Breakers 150-150 A 600 VAC 14 kAIC 3 Pole 3 Phase

Mfg #: HDL36150SA
BOR #: 2486405
Looking for prices?

PowerPact™ Shunt-trip Molded Case Industrial Circuit Breakers

  • HDL Series
  • Cable-in/Cable-out
See More
Product can be ordered only in multiples of
Brand Square D
Includes Auxiliary Switch
Mounting Type unit mount lug)
Voltage 600 VAC
Frame Type H Frame
Interrupting Rating 14 kAIC
Trip Range 900 - 1700 A
Number of Phases 3 Phase
Wire Size 14 - 3/0 AWG
Trip Type Shunt Trip
Amperage 150-150 A
Circuit Breaker Type Molded Case Breaker
Indicator Type Common Trip
Number of Poles 3 Pole
Net Weight 2.2 kg
Product Certifications UL ,, CSA ,, NOM
Wire Stripping Length 16 mm
[Ith] Conventional Free Air Thermal Current 150 A
Magnetic Tripping Current 1700-1700 A
PowerPact H- and J-Frame, Certificate, CSA - CoFC_H-J_MCCB_7-23-15 (pdf) Compliance
PowerPact H- and J-Frame, Certificate, CSA - CSA+H+and+J+Breakers (pdf) Compliance
Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf) Brochure
PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf) Catalog
PowerPact H- and J-Frame, Certificate, CSA - CSA+H+and+J+MCP (pdf) Compliance
Square D Specification Sheet Specification Sheet
Undervoltage Trip (MN) and Shunt Trip (MX) Installation for PowerPacT H-, J-, and L-Frame and TeSys GV5/GV6 Circuit Breakers - 48940-229-01 (pdf) Installation and Instruction Manuals
PowerPacT with MicroLogic Brochure - 0600BR1101 (pdf) Brochure
