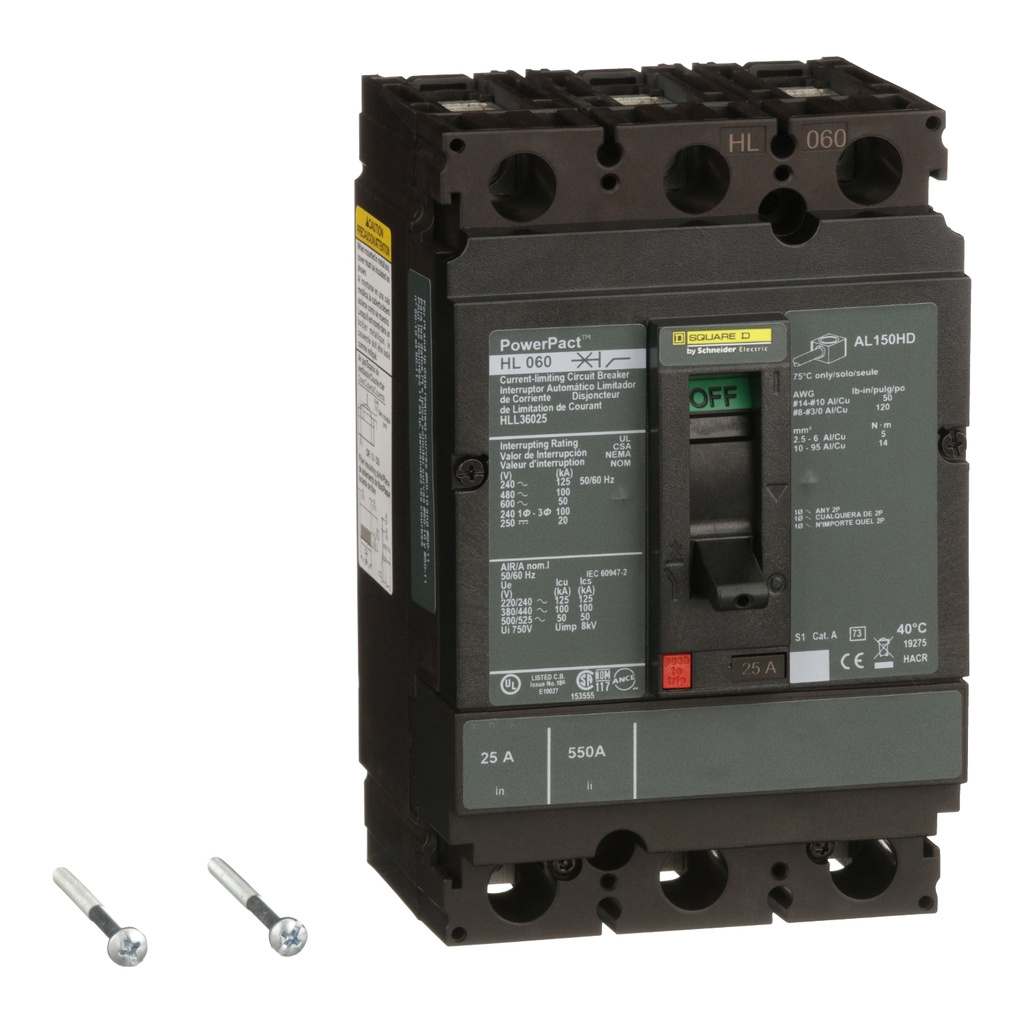

Square D PowerPacT™ HLL Cable-in / Cable-out Molded Case Industrial Circuit Breakers 25 A 600 VAC 50 kAIC 3 Pole
Mfg #:
HLL36025
BOR #:
1684166
PowerPact™ Molded Case Industrial Circuit Breakers
- HLL Series
- Cable-in/Cable-out
Related Items
Select Options
| Brand | Square D |
| Voltage | 600 VAC |
| Frame Type | H Frame |
| Interrupting Rating | 50 kAIC |
| Trip Type | Fixed Thermal and Magnetic Trip |
| Amperage | 25 A |
| Circuit Breaker Type | Molded Case Breaker |
| Number of Poles | 3 Pole |
| Net Weight | 2.2 kg |
| NEMA and Definite Purpose Contactors and Starters: Section 16 - Digest 179 (2024) - NEMA-Contactors-Digest-Catalog-0100CT2401-SEC-16 (pdf) | Catalog |
|
| Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf) | Brochure |
|
| Certificate 1 | Compliance |
|
| PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf) | Catalog |
|
| Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf) | Catalog |
|
| Power Distribution Connectors Installation for Circuit Breakers and Switches - 48040-929-04 (pdf) | Installation and Instruction Manuals |
|
| PowerPacT with MicroLogic Brochure - 0600BR1101 (pdf) | Brochure |
|
| Mechanical Lug Kits Installation Instructions - 48940-221-02 (pdf) | Installation and Instruction Manuals |
|
Installing S29313 Toggle Extension on H & J Frame Circuit Breakers | Schneider Electric Support
Tutorial for installing the handle toggle extension on an PowerPact H-frame or J-frame molded case...
