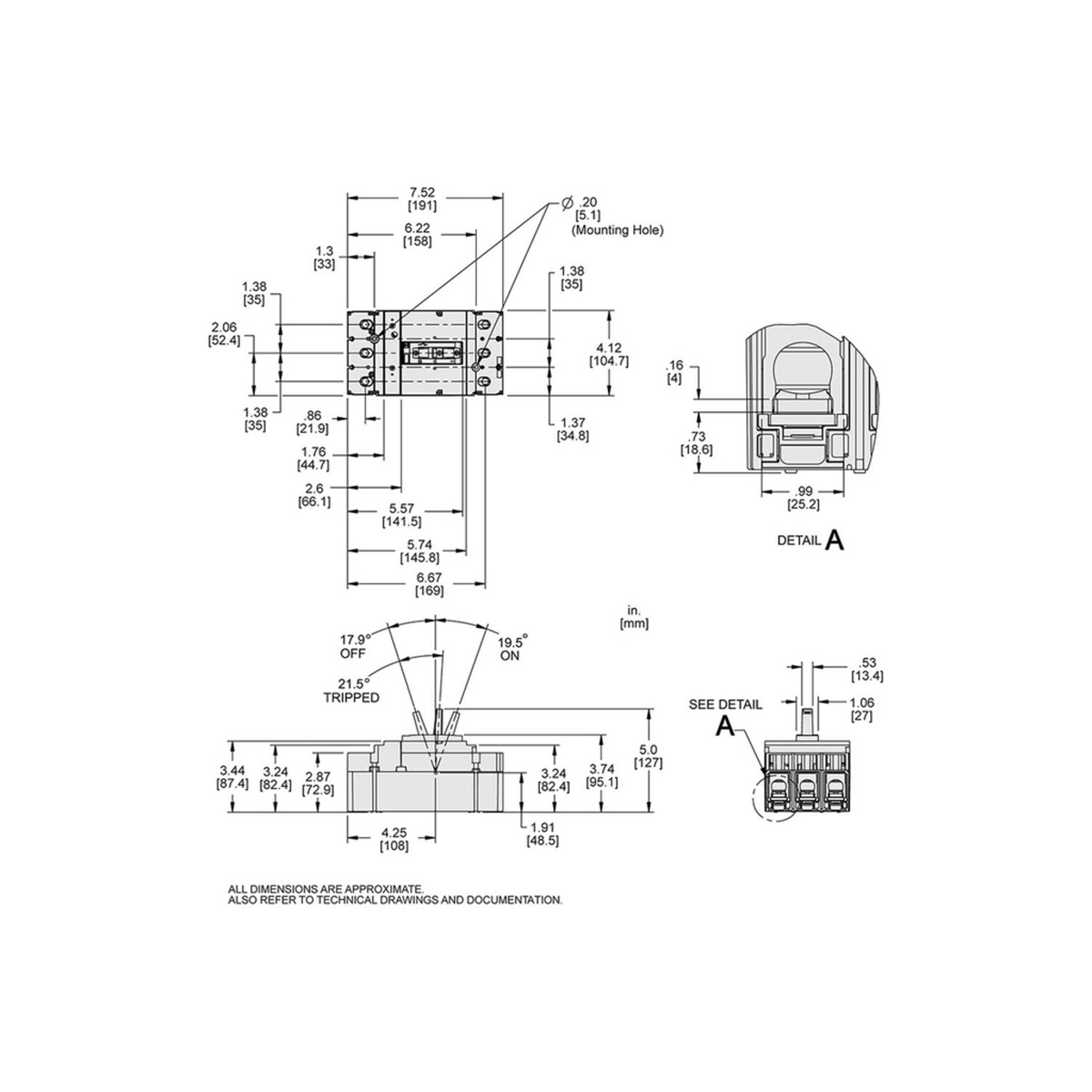

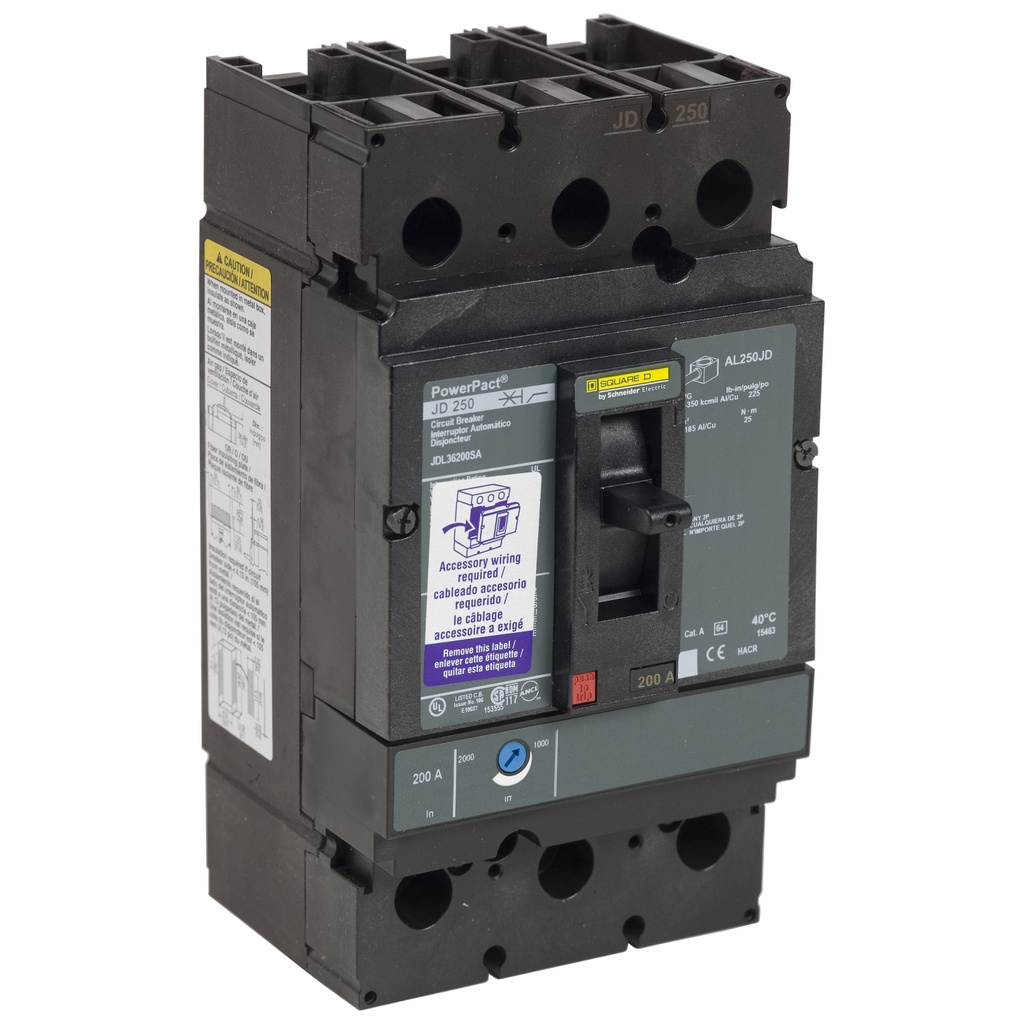

Square D PowerPacT™ JDL Cable-in / Cable-out Molded Case Industrial Circuit Breakers 225 A 600 VAC 14 kAIC 3 Pole
Mfg #:
JDL36225SA
BOR #:
3661911
PowerPact™ Molded Case Industrial Circuit Breakers
- JDL Series
- Cable-in/Cable-out
| Brand | Square D |
| Mounting Type | Unit Mount |
| Voltage | 600 VAC |
| Frame Type | J Frame |
| Interrupting Rating | 14 kAIC |
| Wire Size | 3/0 AWG - 350 kcmil |
| Trip Type | Thermal Magnetic |
| Amperage | 225 A |
| Circuit Breaker Type | Molded Case Breaker |
| Number of Poles | 3 Pole |
| Wire Stripping Length | 25 mm |
| Certificate 3 | Compliance |
|
| Undervoltage Trip (MN) and Shunt Trip (MX) Installation for PowerPacT H-, J-, and L-Frame and TeSys GV5/GV6 Circuit Breakers - 48940-229-01 (pdf) | Installation and Instruction Manuals |
|
| PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf) | Catalog |
|
| Certificate 1 | Compliance |
|
| Certificate 2 | Compliance |
|
| Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf) | Brochure |
|
| PowerPacT with MicroLogic Brochure - 0600BR1101 (pdf) | Brochure |
|
