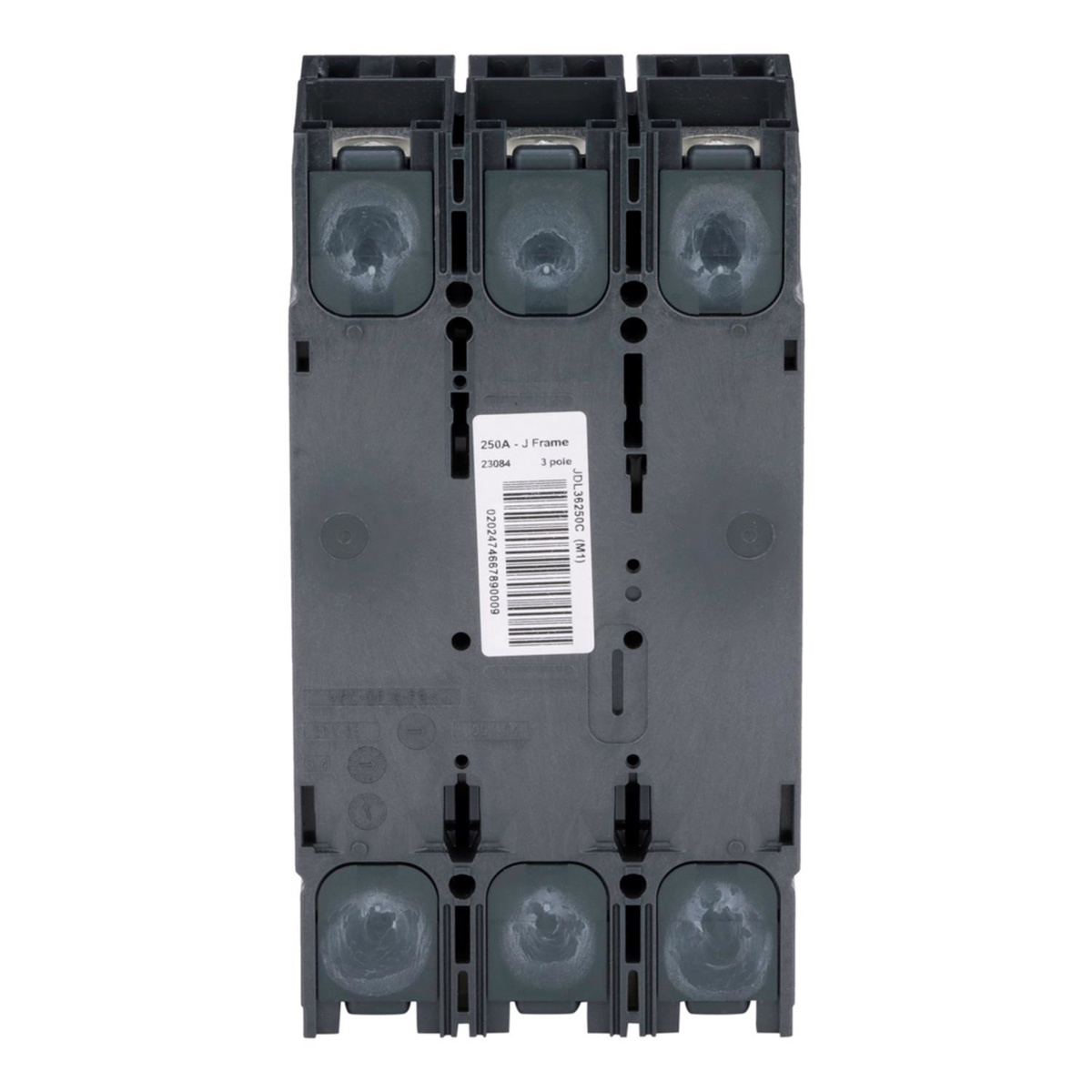

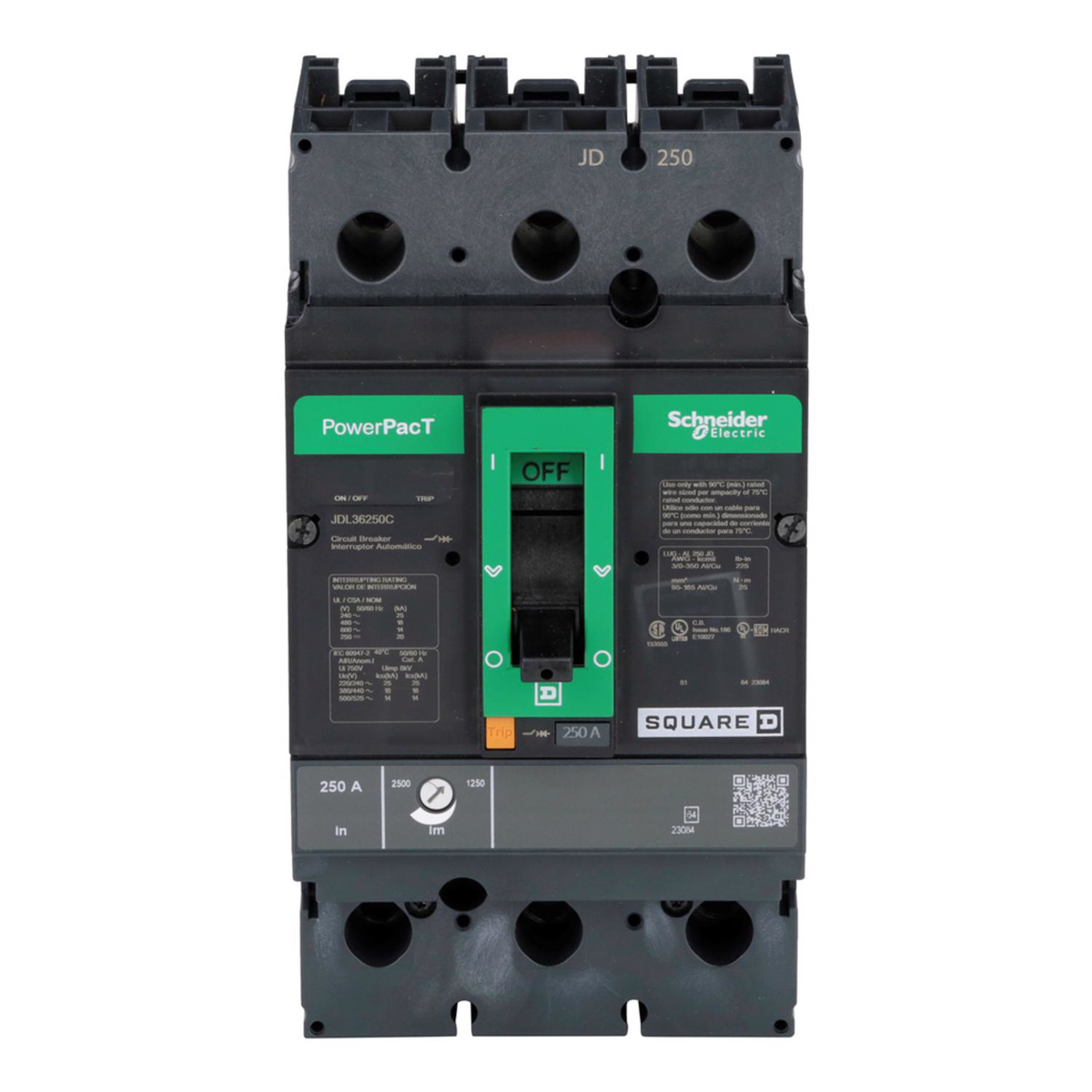

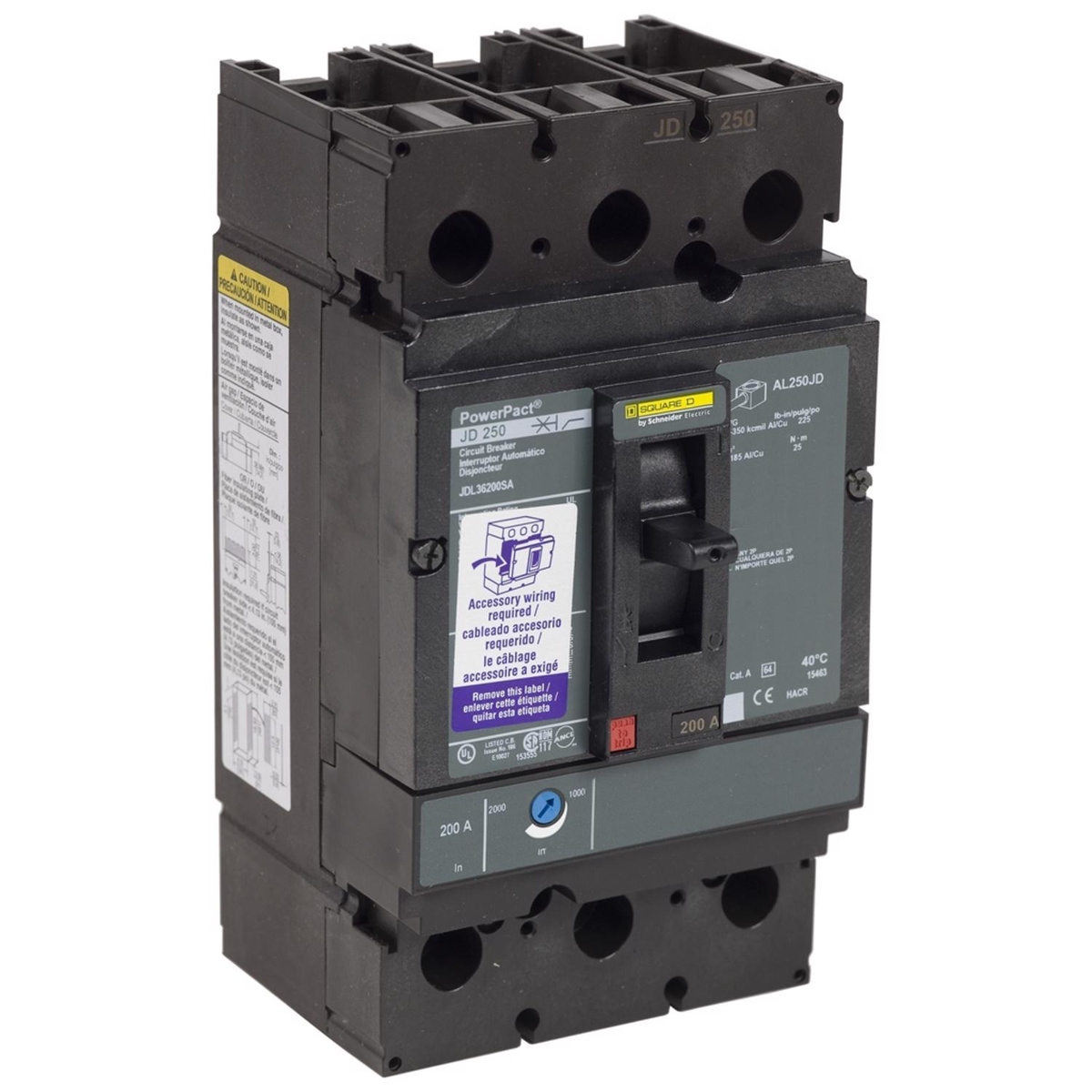

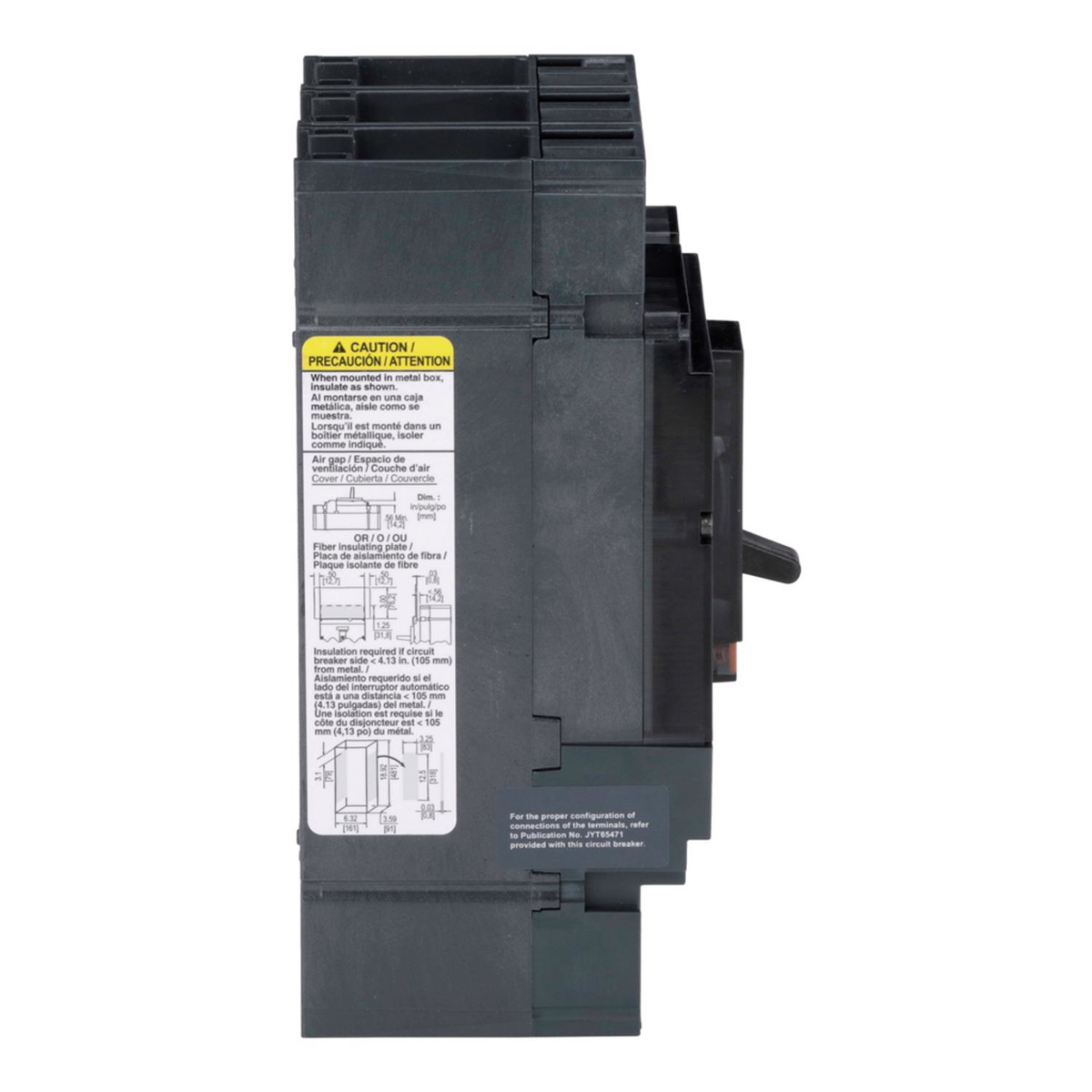

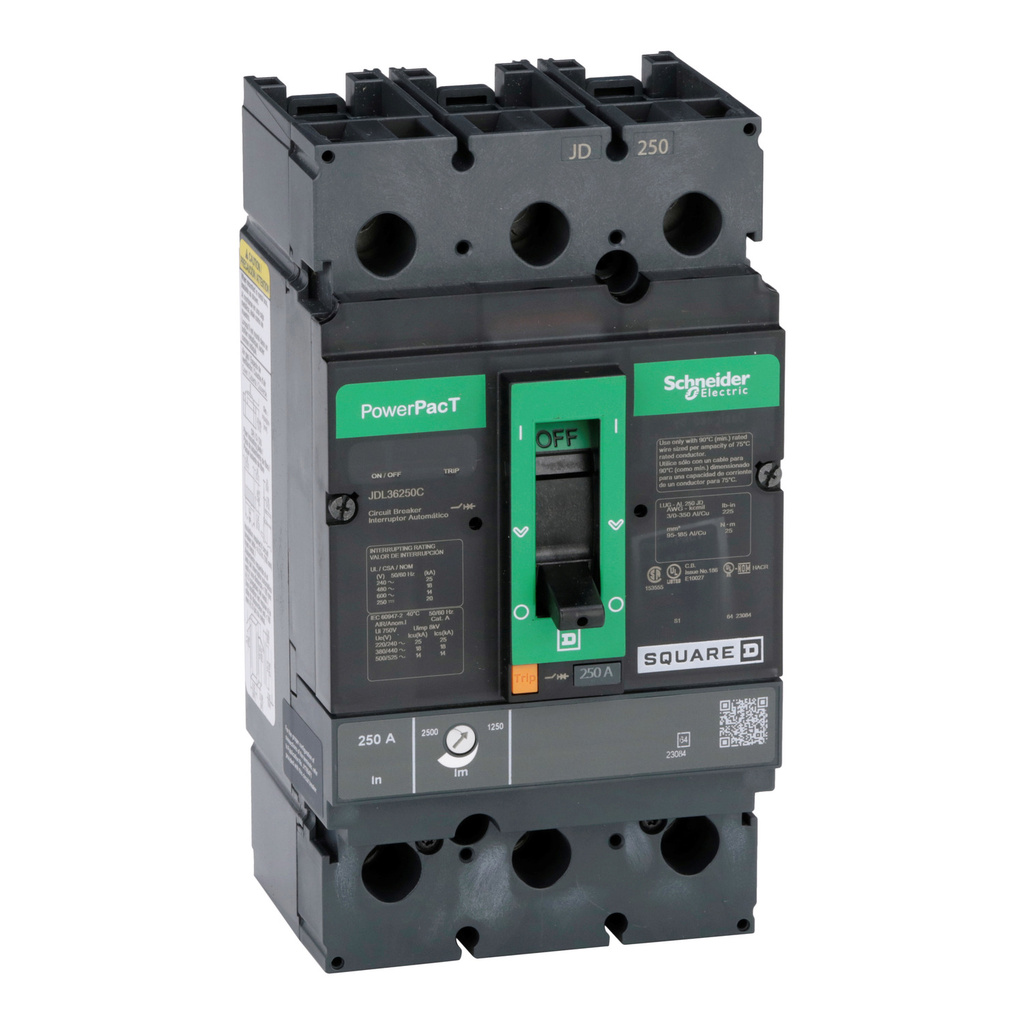

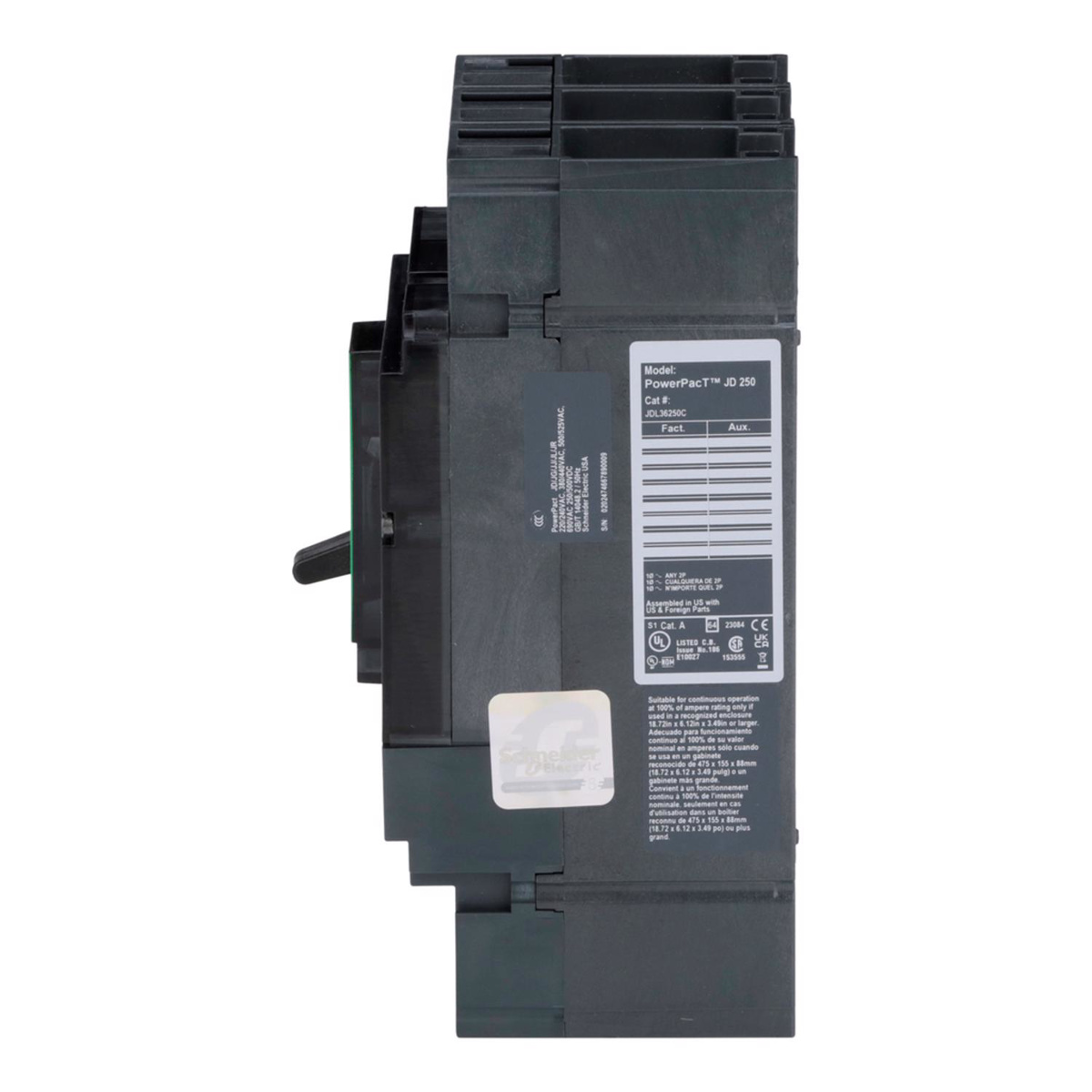

Square D PowerPacT™ JDL Cable-in / Cable-out Molded Case Industrial Circuit Breakers 250 A 600 VAC 14 kAIC 3 Pole
PowerPact™ Molded Case Industrial Circuit Breakers
- JDL Series
- Cable-in/Cable-out
Related Items
Select Options
| Brand | Square D |
| Voltage | 600 VAC |
| Frame Type | J Frame |
| Interrupting Rating | 14 kAIC |
| Trip Type | Fixed Thermal and Magnetic Trip |
| Amperage | 250 A |
| Circuit Breaker Type | Molded Case Breaker |
| Number of Poles | 3 Pole |
| Net Weight | 2.4 kg |
| PowerPact H- and J-Frame, Certificate, CSA - CSA_Certificate_PP-H-J_MCCB (pdf) | Compliance |
|
| Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf) | Brochure |
|
| PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf) | Catalog |
|
| Masterpact NT, Certificate, UL - UL_Certificate_E85161_marine_breakers (pdf) | Compliance |
|
| PowerPact J, JD, JG, JJ, JL, JR. MICROLOGIC LI, LSI, LSIG 70A-250A - CCC_Certificate_Ex_8-2020 (pdf) | Compliance |
|
| PowerPact J-Frame Molded Case Circuit Breakers, Certificate, EN - IEC_Cert_PowerPact_J_60947-2 (pdf) | Compliance |
|
| PowerPact H-Frame Molded Case Circuit Breakers, Certificate, UL - UL_Certificate_E10027-20040528 (pdf) | Compliance |
|
| Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf) | Catalog |
|
| Mechanical Lug Kits Installation Instructions - 48940-221-02 (pdf) | Installation and Instruction Manuals |
|
