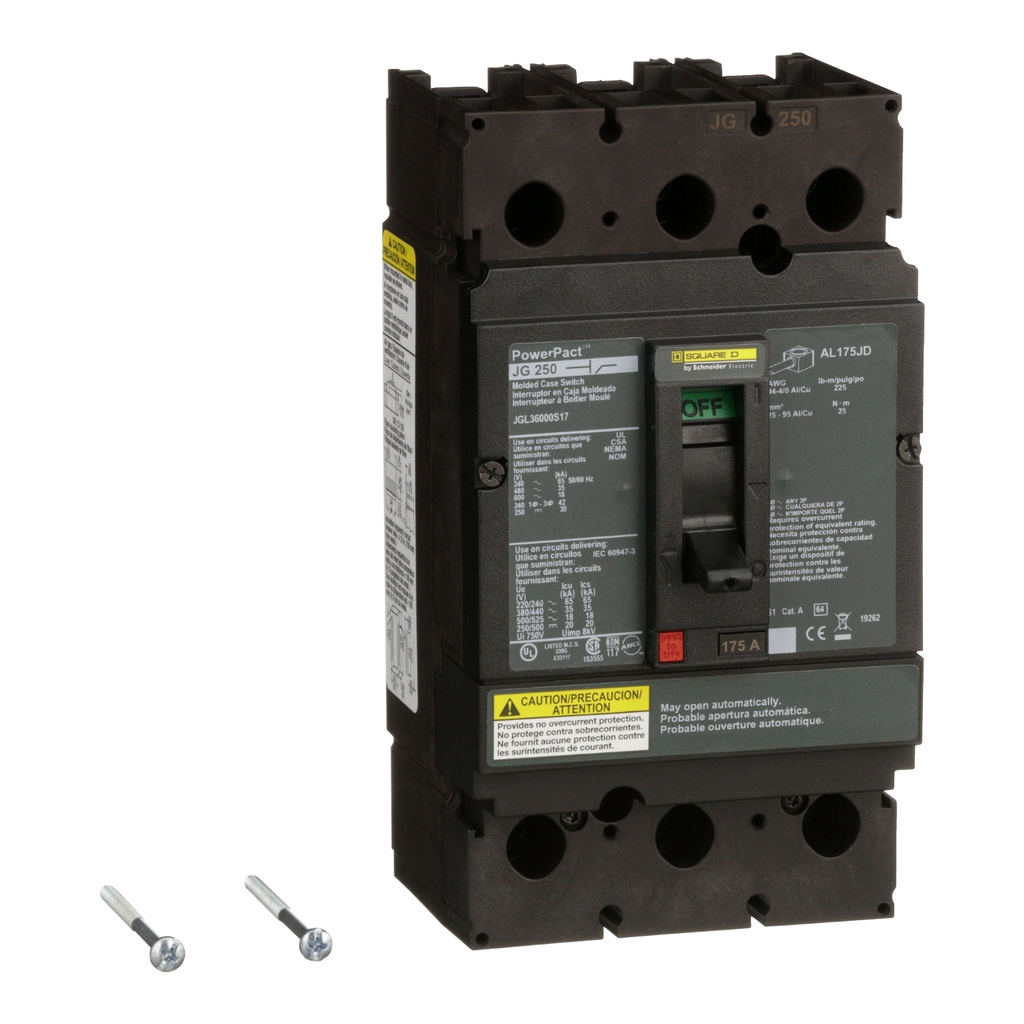

Square D PowerPacT™ JGL Automatic Molded Case Switches 175 A 600 VAC 18 kAIC 3 Pole
Related Items
Select Options
| Brand | Square D |
| Mounting Type | unit mount |
| Voltage | 600 VAC |
| Frame Type | J Frame |
| Interrupting Rating | 18 kAIC |
| Trip Type | Fixed Thermal and Magnetic Trip |
| Amperage | 175 A |
| Circuit Breaker Type | J-frame |
| Number of Poles | 3 Pole |
| Product Certifications | CSA ,, UL Listed ,, IEC |
| [Ith] Conventional Free Air Thermal Current | 175 A |
| Magnetic Tripping Current | 3125-3125 A |
| PowerPacT™ H- and J-Frame Circuit Breakers and Switches – Installation - JYT65471_Rev+02 (pdf) | Installation and Instruction Manuals |
|
| PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf) | Catalog |
|
| Certificate 3 | Compliance |
|
| Certificate 5 | Compliance |
|
| Certificate 4 | Compliance |
|
| Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf) | Catalog |
|
| Certificate 2 | Compliance |
|
| PowerPacT with MicroLogic Brochure - 0600BR1101 (pdf) | Brochure |
|
| PowerPacT M-, P-, and R-frame and NS Circuit Breakers Catalog - 0612CT0101 (pdf) | Catalog |
|
| Certificate 7 | Compliance |
|
| Certificate 6 | Compliance |
|
| Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf) | Brochure |
|
| Certificate 1 | Compliance |
|
| Certificate 8 | Compliance |
|
