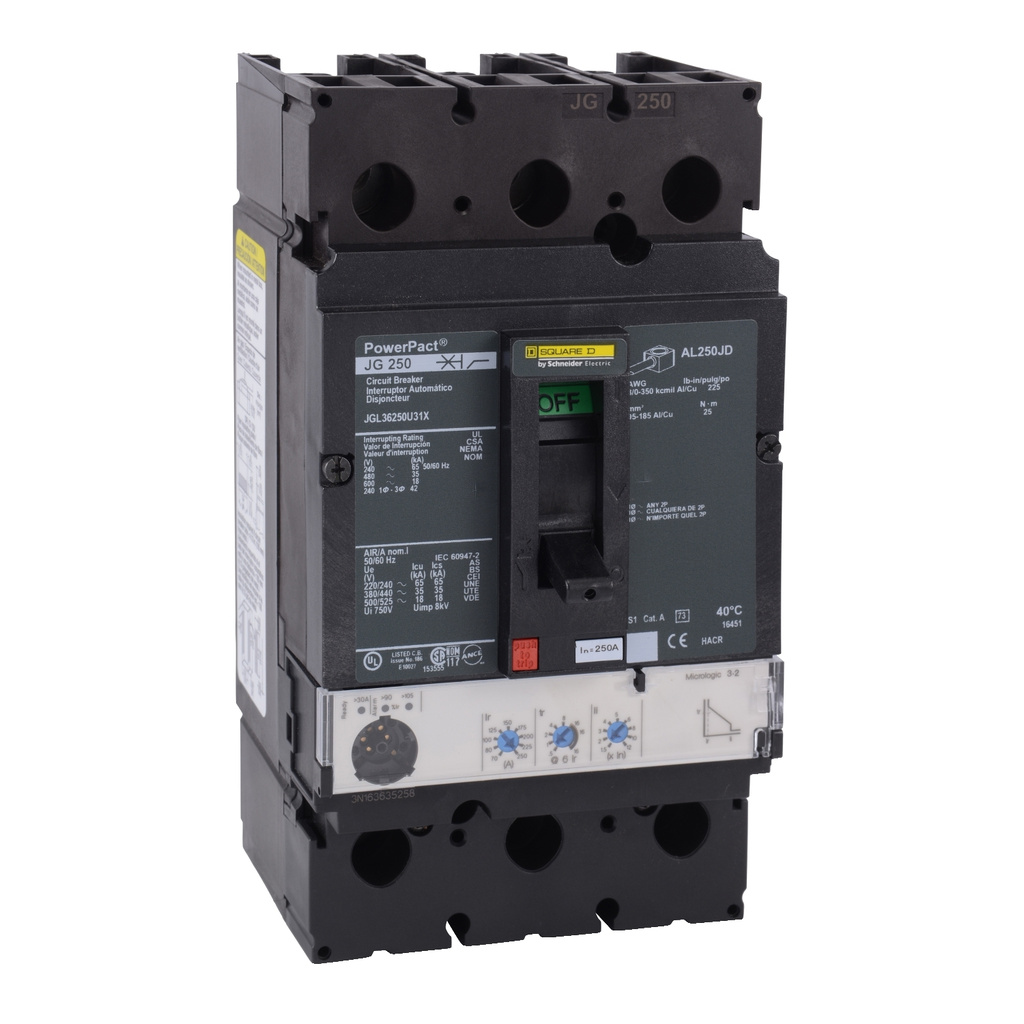

Square D PowerPacT™ JGL Cable-in / Cable-out Molded Case Switches 250-250 A 600 VAC 35 kAIC 3 Pole
PowerPact™ Molded Case Switches
- JGL Series
- Cable-in/Cable-out
Related Items
Select Options
| Brand | Square D |
| Mounting Type | unit mount lug) |
| Voltage | 600 VAC |
| Frame Type | J Frame |
| Interrupting Rating | 35 kAIC |
| Trip Type | Electronic |
| Amperage | 250-250 A |
| Circuit Breaker Type | Molded Case Breaker |
| Number of Poles | 3 Pole |
| Net Weight | 2.4 kg |
| Product Certifications | UL ,, CSA ,, NOM |
| Wire Stripping Length | 25 mm |
| [Ith] Conventional Free Air Thermal Current | 250 A |
| PowerPact J, JD, JG, JJ, JL, JR. MICROLOGIC LI, LSI, LSIG 70A-250A - CCC_Certificate_Ex_8-2020 (pdf) | Compliance |
|
| Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf) | Catalog |
|
| Mechanical Lug Kits Installation Instructions - 48940-221-02 (pdf) | Installation and Instruction Manuals |
|
| Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf) | Brochure |
|
| PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf) | Catalog |
|
| PowerPacT with MicroLogic Brochure - 0600BR1101 (pdf) | Brochure |
|
