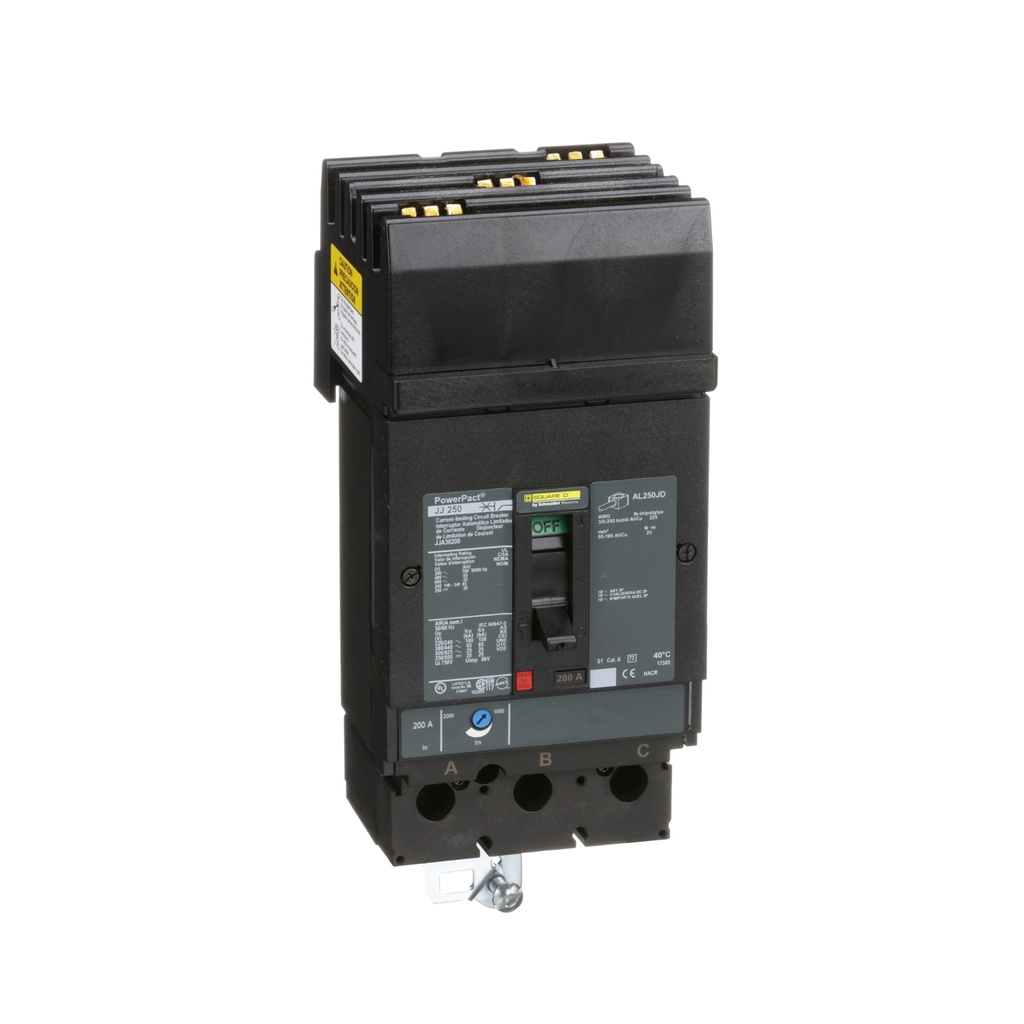

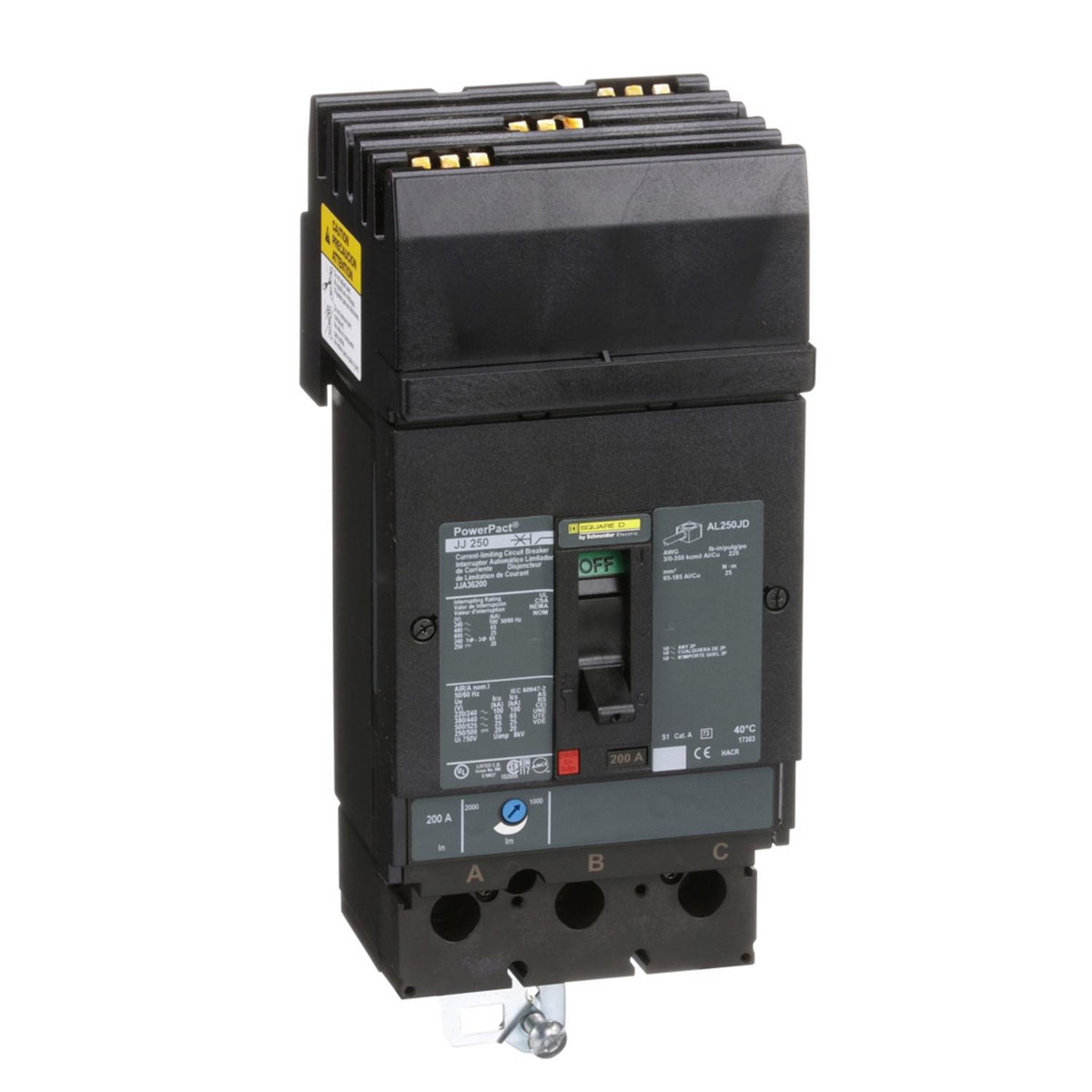

Square D PowerPacT™ JJA Cable-in / Cable-out Molded Case Industrial Circuit Breakers 200-200 A 600 VAC 25 kAIC 3 Pole 3 Phase
PowerPact™ Industrial Circuit Breakers
- JJA Series
- Cable-in/Cable-out
Related Items
Select Options
| Brand | Square D |
| Mounting Type | I-Line bracket) |
| Voltage | 600 VAC |
| Frame Type | J Frame |
| Interrupting Rating | 25 kAIC |
| Trip Range | 1000 - 2000 A |
| Number of Phases | 3 Phase |
| Wire Size | 3/0 AWG - 350 kcmil |
| Trip Type | Fixed Thermal and Adjustable Magnetic Trip |
| Amperage | 200-200 A |
| Circuit Breaker Type | Molded Case Breaker |
| Indicator Type | Common Trip |
| Number of Poles | 3 Pole |
| Net Weight | 2.4 kg |
| Product Certifications | UL ,, CSA ,, NOM |
| Wire Stripping Length | 25 mm |
| [Ith] Conventional Free Air Thermal Current | 200 A |
| Magnetic Tripping Current | 2000-2000 A |
| PowerPacT with MicroLogic Brochure - 0600BR1101 (pdf) | Brochure |
|
| Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf) | Brochure |
|
| PowerPact J, JD, JG, JJ, JL, JR. MICROLOGIC LI, LSI, LSIG 70A-250A - CCC_Certificate_Ex_8-2020 (pdf) | Compliance |
|
| Power Distribution Connectors Installation for Circuit Breakers and Switches - 48040-929-04 (pdf) | Installation and Instruction Manuals |
|
| PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf) | Catalog |
|
