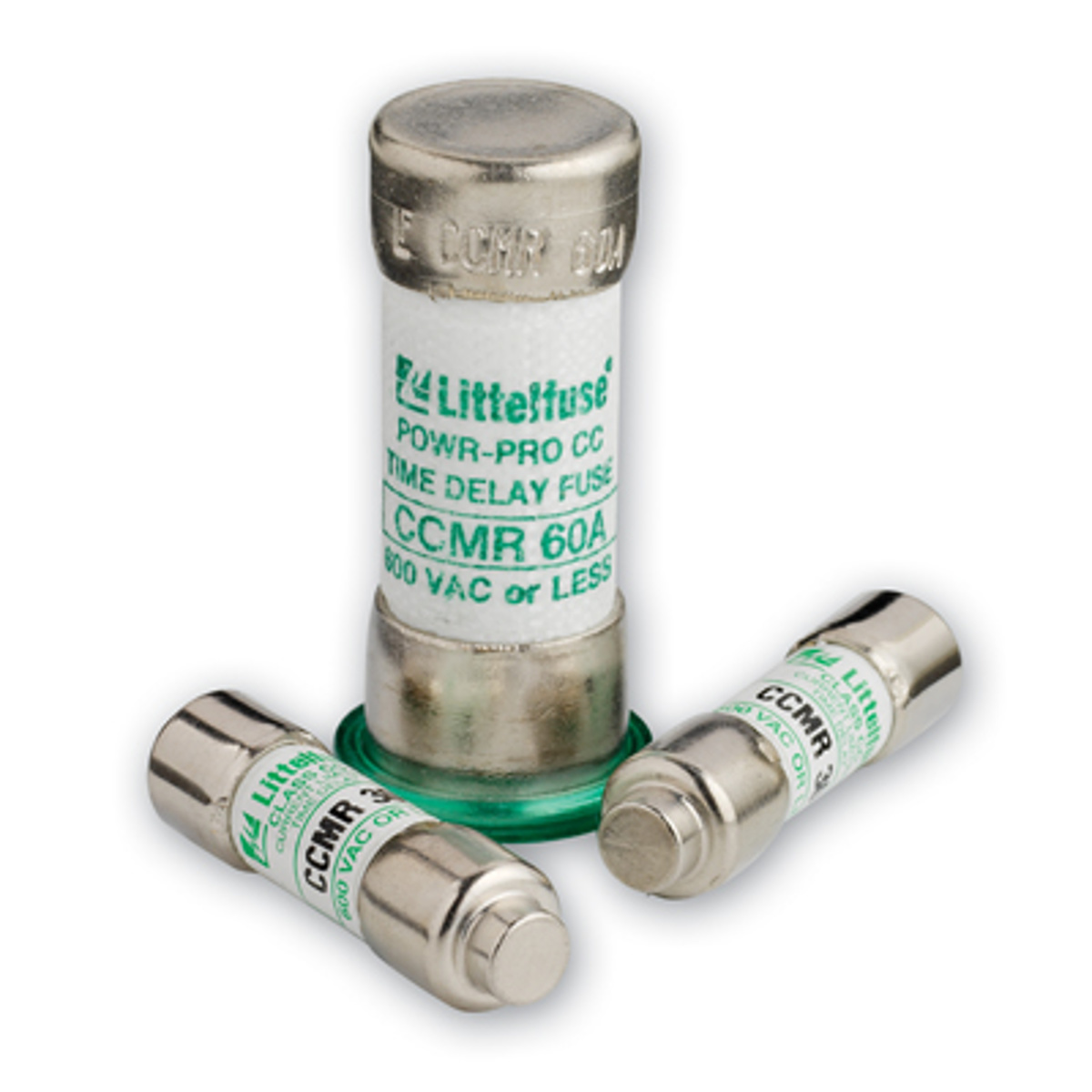

Littelfuse CCMR POWR-PRO® Series Class CC/CD Fuses 6-1/4 A 600 VAC/300 VDC 200/20 kA
Mfg #:
CCMR625TXP
BOR #:
2918441
The CCMR series POWR-PRO CC fuses are true dual element, time-delay fuses specifically engineered for space-saving motor branch circuit protection. These fuses are recommended for motor circuits up to 40 HP and for general purpose circuits up to 60 amps.
- Extremely current-limiting
- Ampere Range: 2/10 - 60 amperes
- 300 kA Interrupting Rating (self-certified)
- Voltage Rating: 600 VAC (contact BSE for DC voltages)
- Ideal for space saving protection of motors up to 40 hp, designed specifically to withstand sustained starting currents of small motors.
- RoHS Compliant (except 35-60 A)
Brand | Littelfuse |
Voltage | 600 VAC/300 VDC |
Indicator Type | Non-indicating |
Mounting Type | Clip |
Fuse Speed | Time Delay |
Terminal Type | Ferrule |
Fuse Class | Class CC |
Interrupting Rating | 200/20 kA |
Rejecting | Non-rejection |
Length | 1-1/2 in |
Diameter | 13/32 in |
Amperage | 6-1/4 A |
