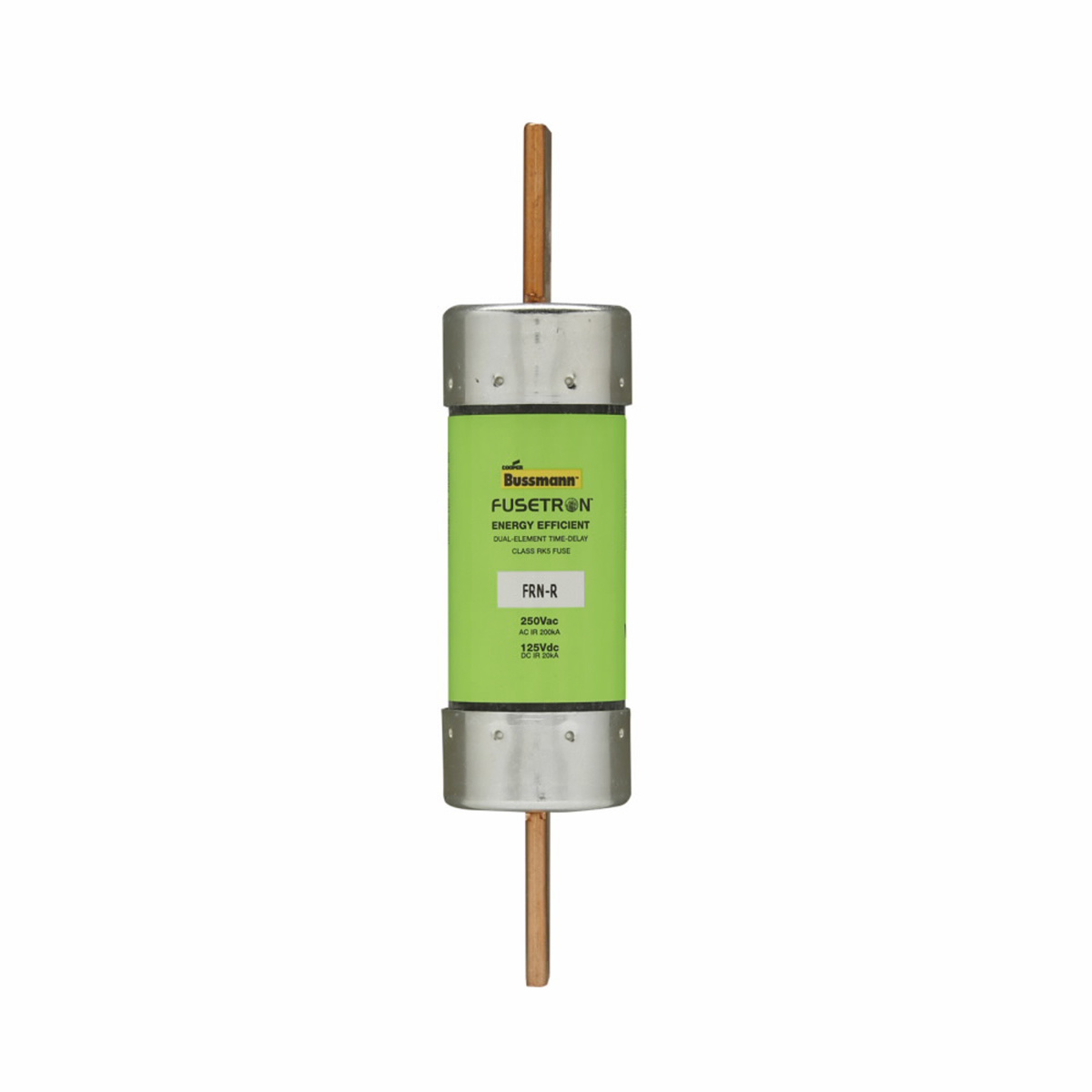

Eaton Bussmann FRN-R Fusestron™ Series Time Delay Class RK5 Fuses 175 A 250 VAC/125 VDC 200/20 kA
Mfg #:
FRNR175
BOR #:
113783
Typical applications: Power panelboards, motor control centers, combination starters, machinery disconnects.
- Amps: 1/10-600A
- Volts: 250Vac (or less), 125Vdc (1/10-200A), 250Vdc (201-600A)
- UL listed and CSA certified
- RoHS compliant
- 10 seconds (minimum) at 500% rated amps
Brand | Eaton Bussmann |
Fuse Class | Class RK5 |
Interrupting Rating | 200/20 kA |
Diameter | 1.56 in |
Length | 7-1/8 in |
Voltage | 250 VAC/125 VDC |
Amperage | 175 A |
Mounting Type | Holder |
Material | Fiberglass |
Terminal Type | Knife Blade |
Indicator Type | Non-indicating |
Rejecting | Non-rejection |
Fuse Speed | Time Delay |
