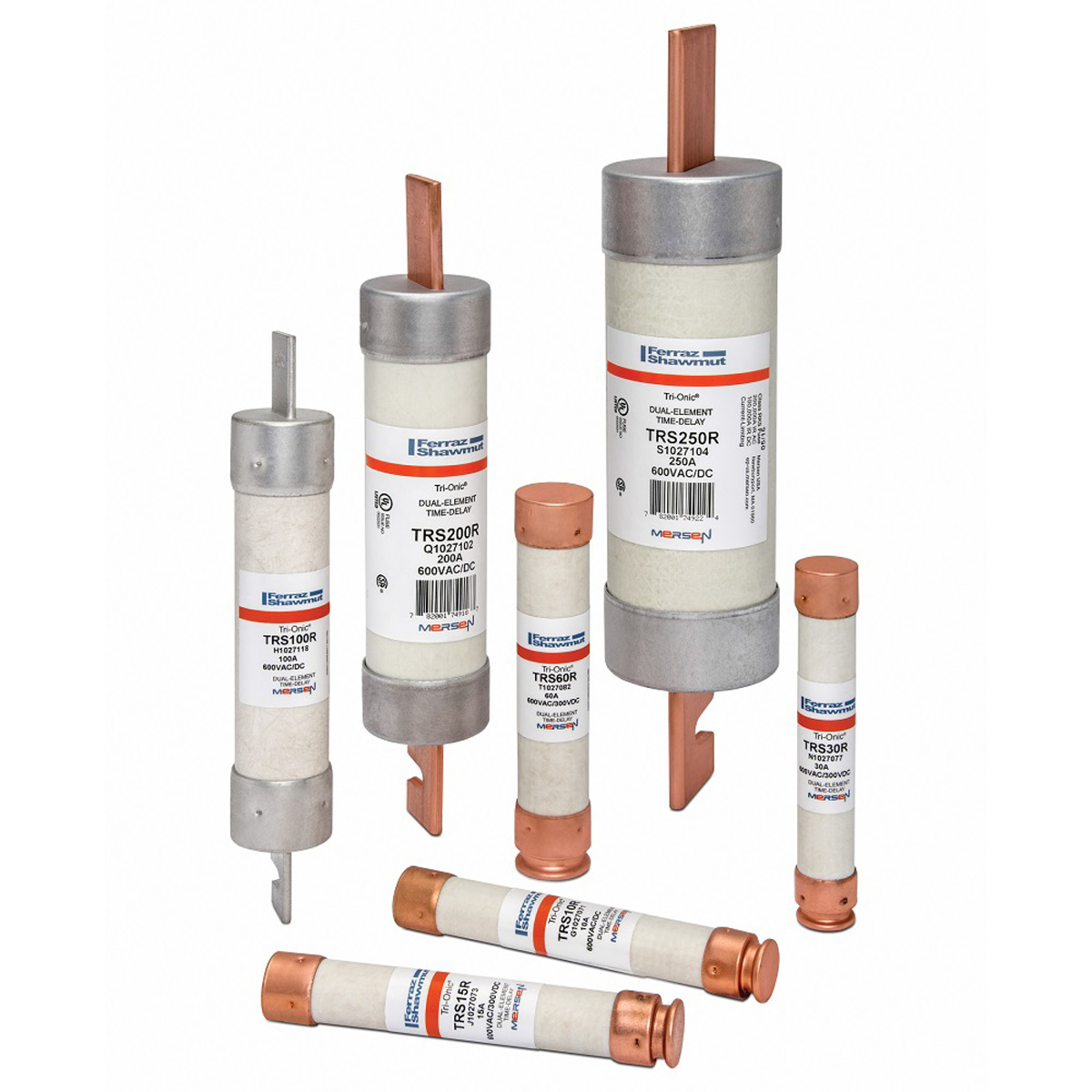

Ferraz Shawmut Tri-Onic® TRS Series Current Limiting Fuses 100 A 600 VAC/VDC 200/100 kA

Mfg #: TRS100R
BSE #: 1649961

Tri-onic® SmartSpot® fuses now provide a visual open fuse indicator.

  • UL listed and CSA certified
  • 600 VAC
  • Current limiting for low peak let-thru current
  • Rejection-style design prevents replacement errors
  • Tri-onic proven time delay characteristic safely handles harmless starting currents and inrush currents associated with today is motors and transformers
See More
Looking for prices?
Product can be ordered only in multiples of

Brand Ferraz Shawmut
Fuse Speed Time Delay
Indicator Type Non-indicating
Rejecting Rejection
Fuse Body Type Cartridge/Cylindrical
Terminal Type Knife Blade
Mounting Type Holder
Material Polyester
Voltage 600 VAC/VDC
Amperage 100 A
Interrupting Rating 200/100 kA
Fuse Element Dual Element
Diameter (Fraction) 1-5/16 in
Length (Fraction) 7-7/8 in
