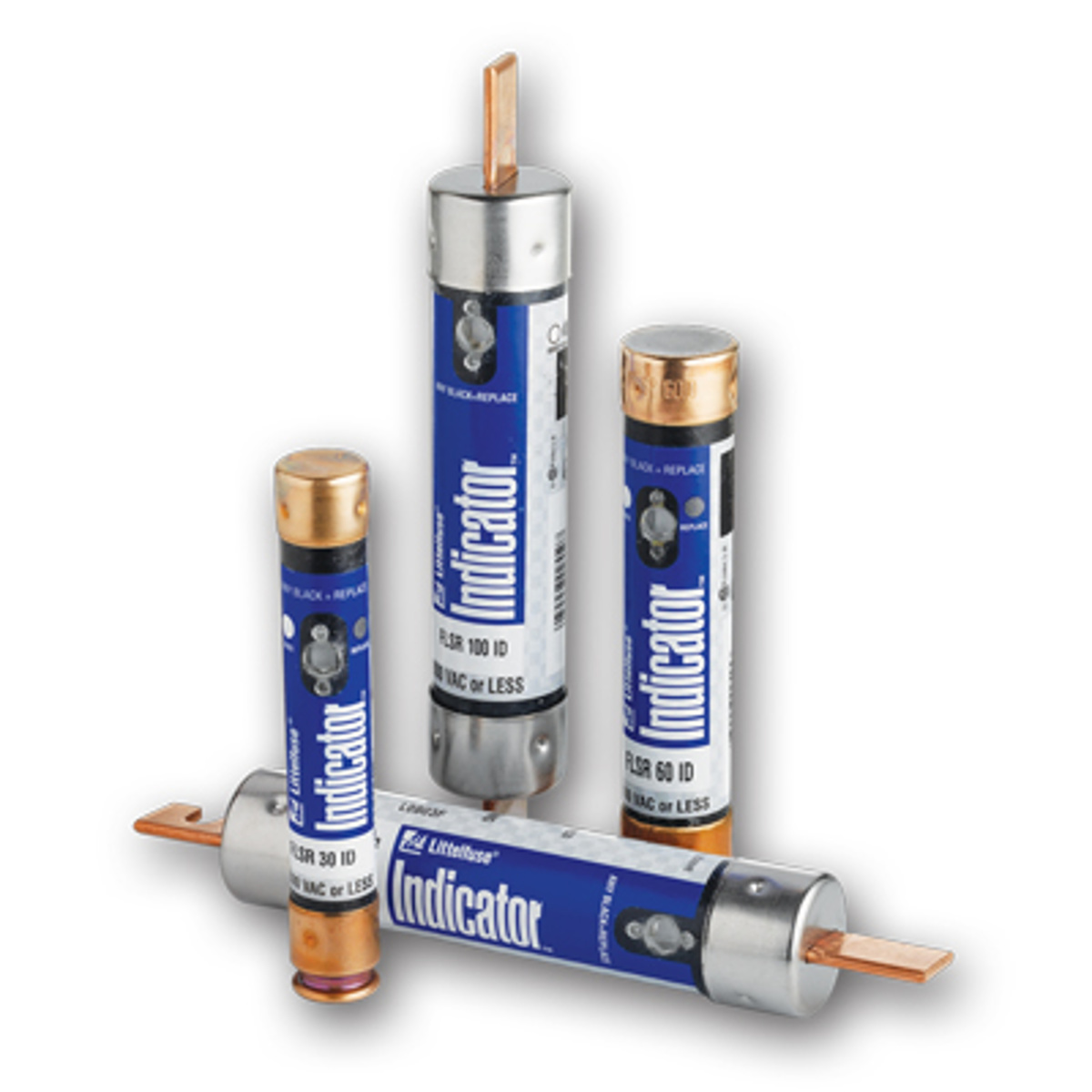

Littelfuse FLNR-ID POWR-GARD® Series Time Delay Indicating Class RK5 Fuses 200 A 250 VAC/125 VDC 200/20 kA

Mfg #: FLNR200ID
BOR #: 124278
Looking for prices?

The Littelfuse FLNR-ID Indicator fuses provide visual indication when the fuse has blown, reducing down time and increasing safety. Ideal for use with all general-purpose circuits, motors, transformers, solenoids, fluorescent lighting and all system compo

  • Ampere range: 1/10 - 600 amperes
  • Interrupting rating: 200,000 AC / 20,000 DC amperes
  • Voltage Rating: 250 VAC / 1250 VDC
  • 1/10-30 amperes is non-indicating
  • Time delay
See More
Product can be ordered only in multiples of
Brand Littelfuse
Fuse Class Class RK5
Interrupting Rating 200/20 kA
Voltage 250 VAC/125 VDC
Amperage 200 A
Length (Fraction) 7-1/8 in
Mounting Type Holder
Diameter (Fraction) 1-19/32 in
Material Composite
Terminal Type Knife Blade
Indicator Type Indicating
Rejecting Non-rejection
Fuse Speed Time Delay
Littelfuse Specification Sheet Specification Sheet
