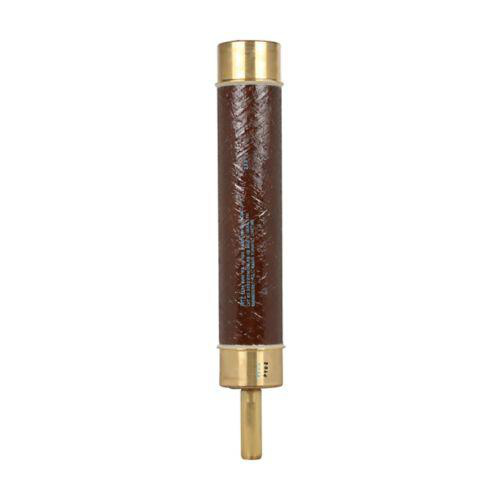

Eaton Cooper Power ELSG Full Range Current Limiting Fuses 180 A 8.3 kV 50 kA
Mfg #:
3593125M01M
BOR #:
153201
Eaton designs its Cooper Power™ series ELSG full-range current-limiting fuse for use in padmounted switchgear filled with Envirotemp™ FR3™ fluid, mineral oil or approved equivalent. It may also be used to protect power transformers, feeders and other equi
- The fuse provides consistent clearing of low currents as well as reliable high speed interruption of high magnitude short circuit currents.
- Its current-limiting capability limits both peak current magnitude and fault duration, thus limiting the let-through energy.
- ELSG fuses have both the low current and high current clearing sections in one housing. This eliminates expulsion by-products discharging into the oil when the fuse operates.
- Concerns associated with miscoordination of separate expulsion and current-limiting fuse sections in the field are eliminated. Also, field testing the currentlimiting section when the expulsion section operates is also eliminated.
- The E-rated ELSG fuses have time-current characteristics that coordinate easily with other upstream and downstream protective devices.
- Wetwell Holders
- Fiberglass Housing
- Mica Spider
- Low Current CLearing Section
- Double Sealing System
| Brand | Eaton Cooper Power |
| Amperage | 180 A |
| Indicator Type | Non-indicating |
| Voltage | 8.3 kV |
| Interrupting Rating | 50 kA |
| Diameter | 3.3 in |
| Eaton Cooper Power Specification Sheet | Specification Sheet |
|
