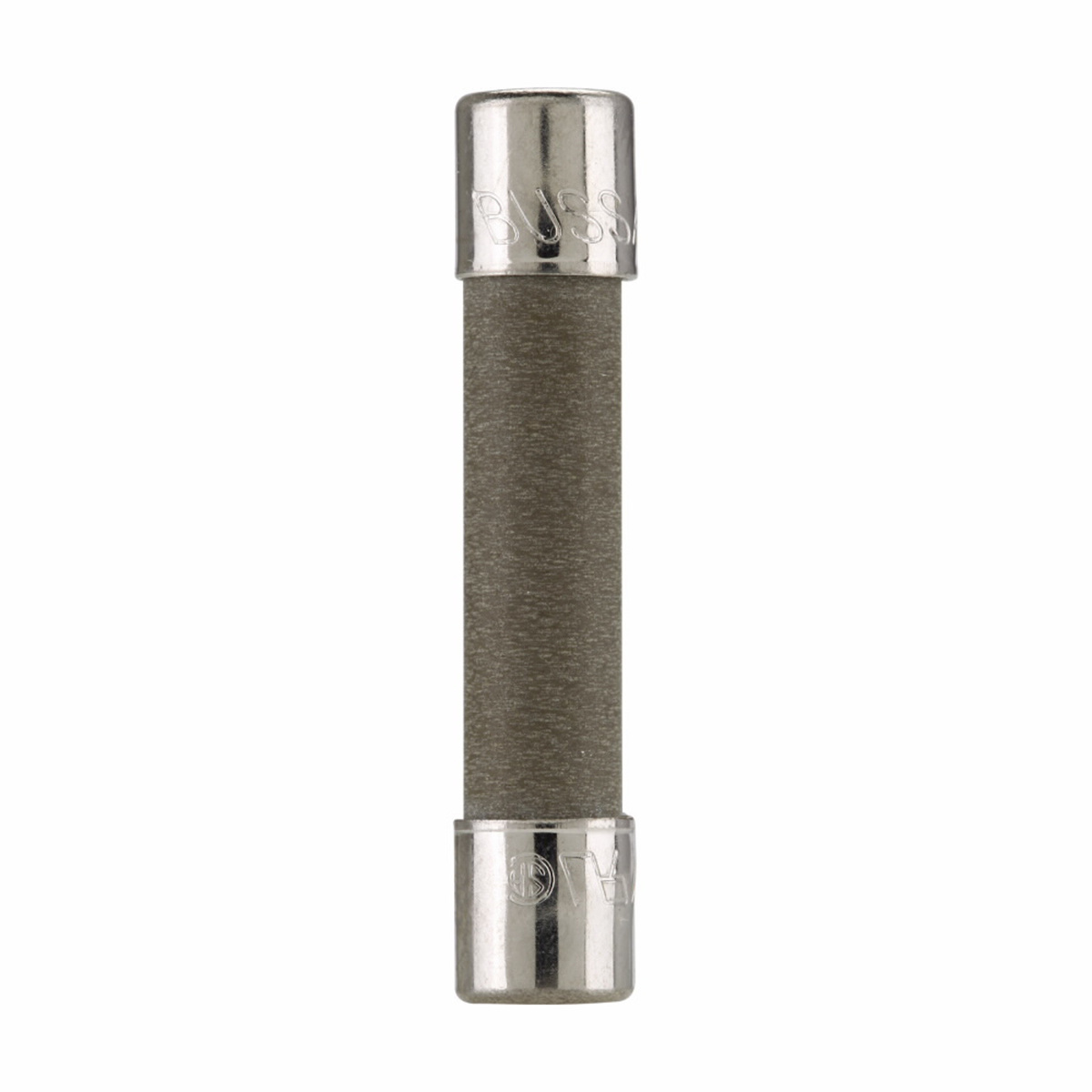

Eaton Bussmann ABC-R Series Fast Acting Fuses 15 A 250 VAC/125 VDC Ceramic 0.75/10 kA

PrimaryProductImage

PrimaryProductImage

Mfg #: ABC15R

BOR #: 1986267

View all 26 in product family

Looking for prices?

Sign In

Create an Account

1/4 in Dia. x 1 1/4 in length fast-acting ferrule fuses.

Construction: Ceramic tube with nickel-plated brass endcaps
Typical Applications: Electronic Circuits
Volts: 250Vac/125Vdc (1/4-20A) in in 125Vac/125Vdc (25-30A)
Prefix BK denotes package of 100 in
RoHS compliant

See More

Product can be ordered only in multiples of

Brand	Eaton Bussmann
Length	1.25 in
Interrupting Rating	0.75/10 kA
Amperage	15 A
Diameter	0.25 in
Material	Ceramic
Voltage	250 VAC/125 VDC
Terminal Type	Ferrule
Mounting Type	Clip
Rejecting	Non-rejection
Fuse Speed	Fast Acting
Indicator Type	Non-indicating

Related Documents

Eaton Bussmann Specification Sheet

Specification Sheet
