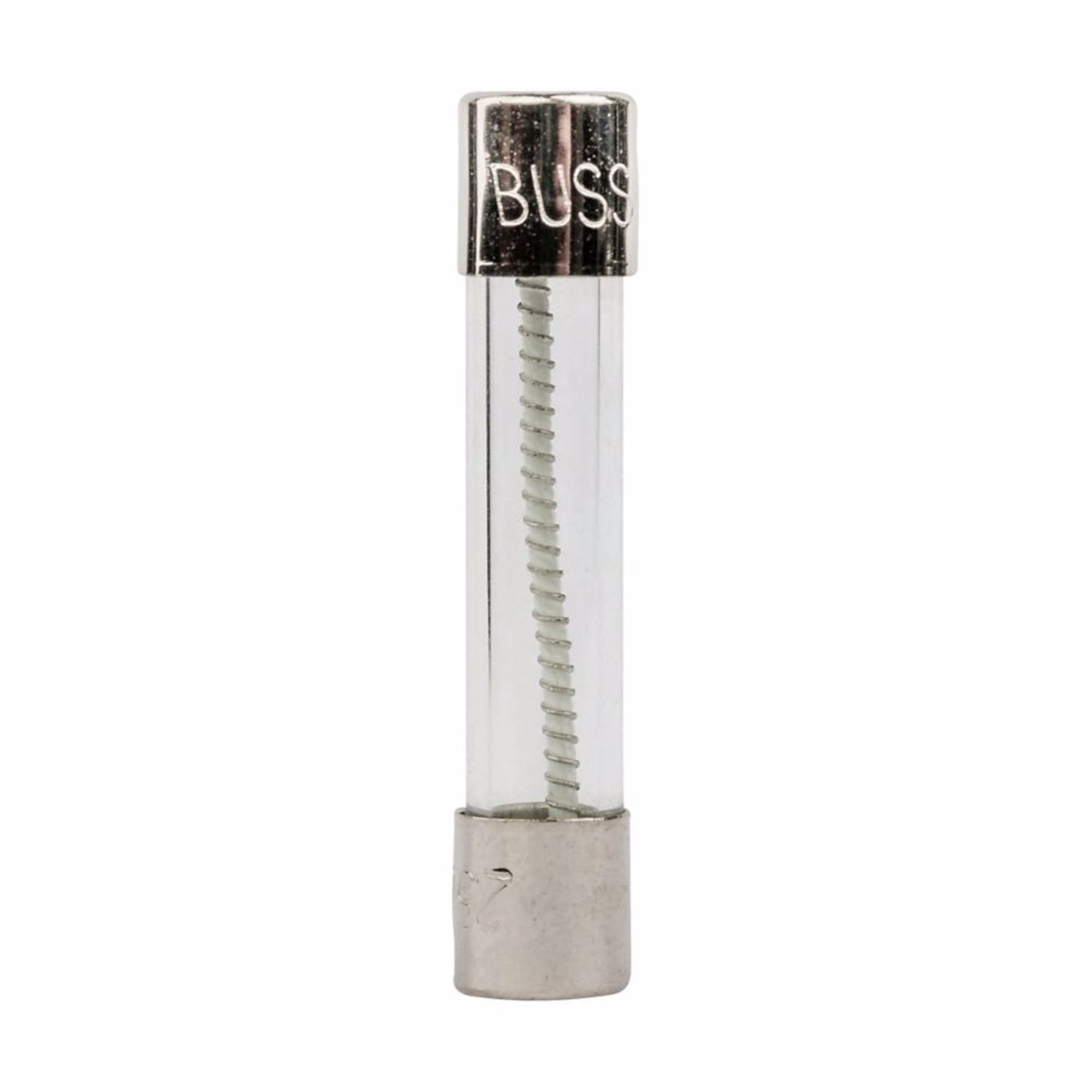

Eaton Bussmann MDL-R Series Time Delay Fuses 2 A 250 VAC Glass 0.10/10 kA
Mfg #:
MDL2R
BOR #:
1986440
1/4 in Dia. x 1 1/4 in length time-delay ferrule fuses.
- Amps: 1/16-30A
- Glass tube with nickel-plated brass endcaps
- Typical Applications: Electronic Circuits
- Volts: 250Vac (1/16-8A), 32Vac (9-30A)
- Prefix BK denotes package of 100 in
- RoHS compliant
Related Items
Select Options
| Brand | Eaton Bussmann |
| Length | 1.25 in |
| Interrupting Rating | 0.10/10 kA |
| Amperage | 2 A |
| Diameter | 0.25 in |
| Material | Glass |
| Voltage | 250 VAC |
| Terminal Type | Ferrule |
| Mounting Type | Clip |
| Rejecting | Non-rejection |
| Fuse Speed | Time Delay |
| Indicator Type | Non-indicating |
| Eaton Bussmann Specification Sheet | Specification Sheet |
|
