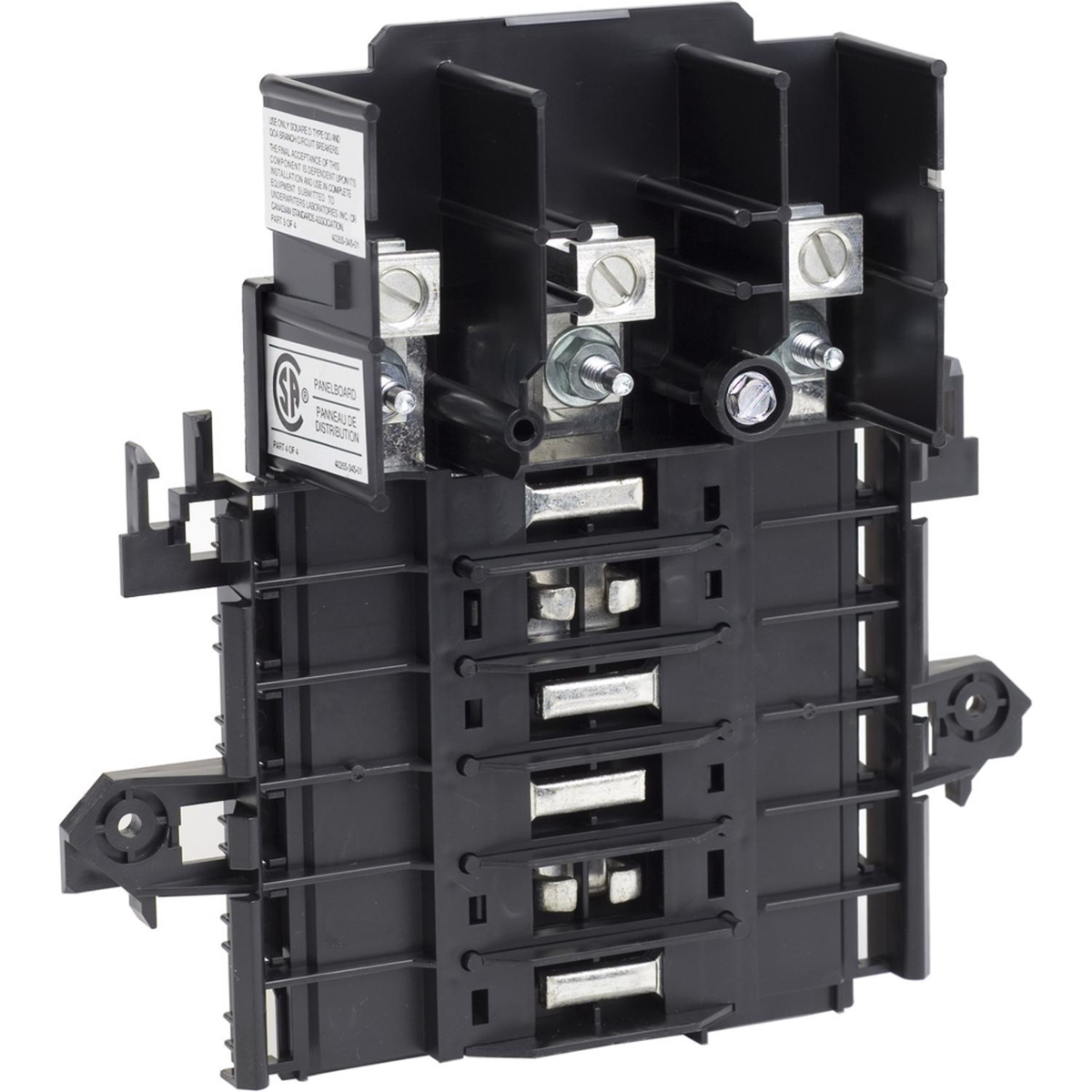

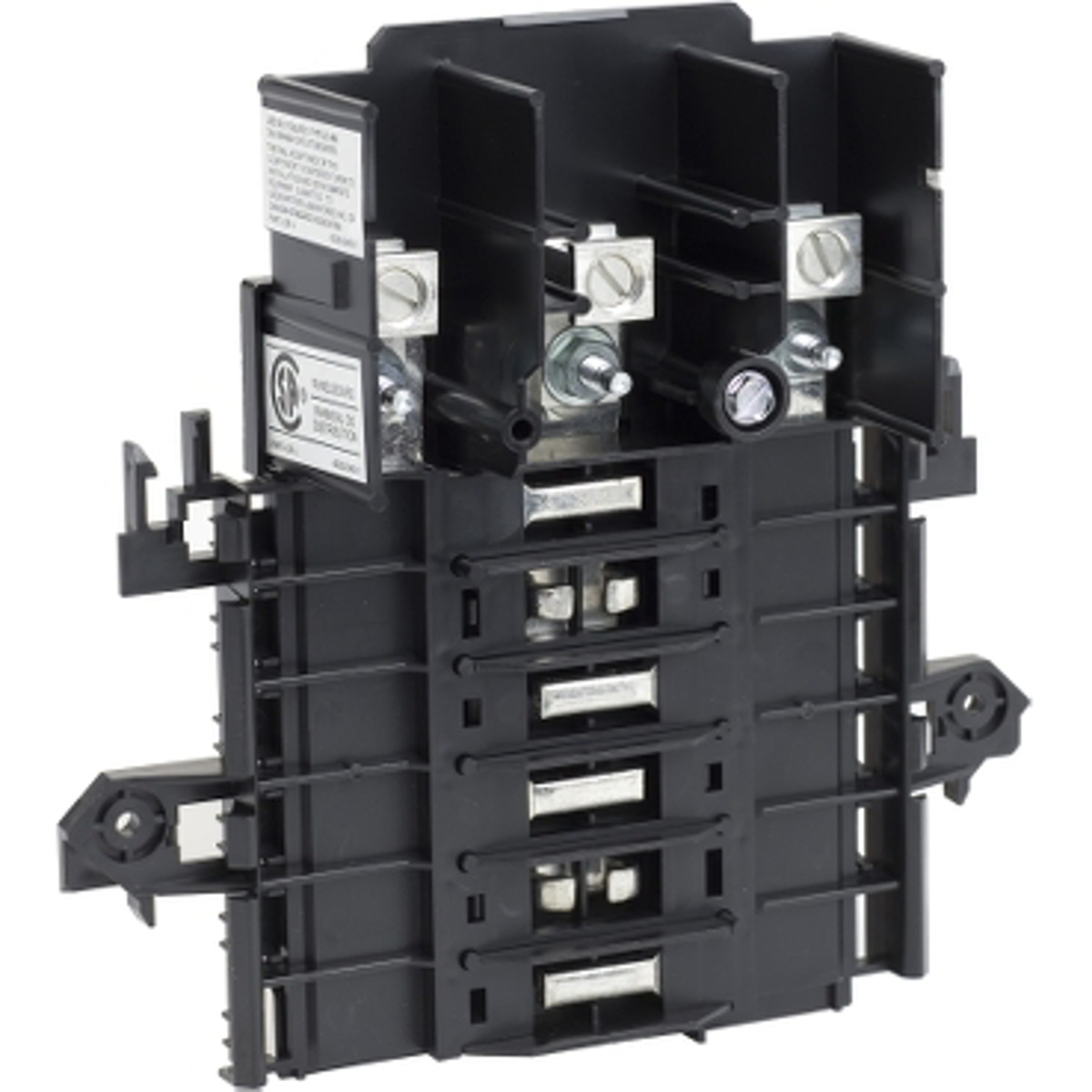

Square D Loadcenter Parts & Accessories
Mfg #:
QON312L125
BOR #:
553776
| Phase | 3 phase |
| [Ith] Conventional Free Air Thermal Current | 125 A |
| Short-Circuit Current | 10 kA |
| Product Certifications | UL ,, CSA |
| Net Weight | 0.680 kg |
| Brand | Square D |
| Amperage | 125 A |
| Number of Phases | 3 phase 3 wires |
| Certificate 1 | Compliance |
|
| QO and Homeline Load Centers and Circuit Breaker Installation Instructions - S1B33894 (pdf) | Installation and Instruction Manuals |
|
| Square D Specification Sheet | Specification Sheet |
|
| Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf) | Catalog |
|
| Small and medium project solutions, available now - brochure - 998-21381316_GMA-US_Small+and+medium+project+solutions+available+now (pdf) | Brochure |
|
| Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf) | Catalog |
|
| Certificate 2 | Compliance |
|
