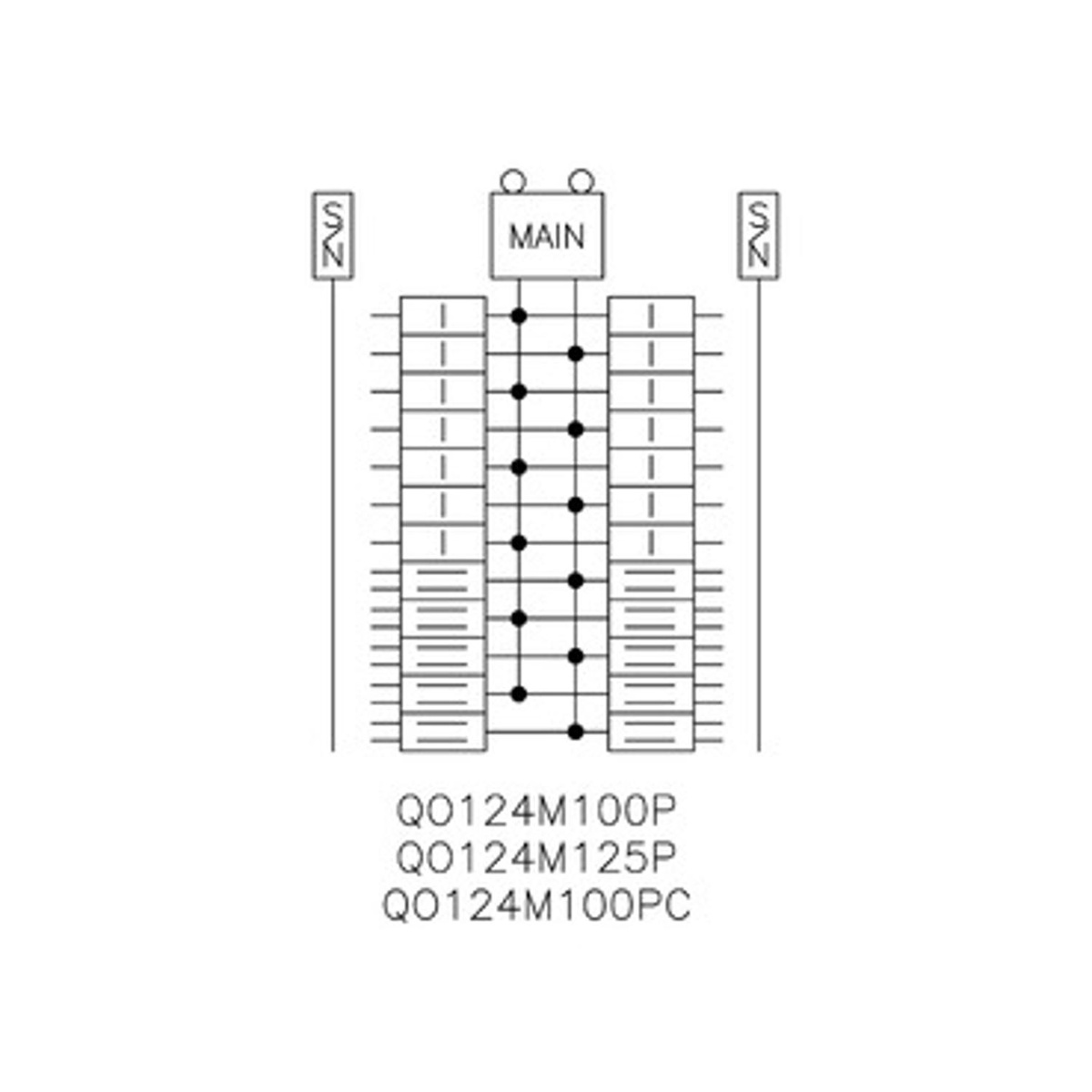

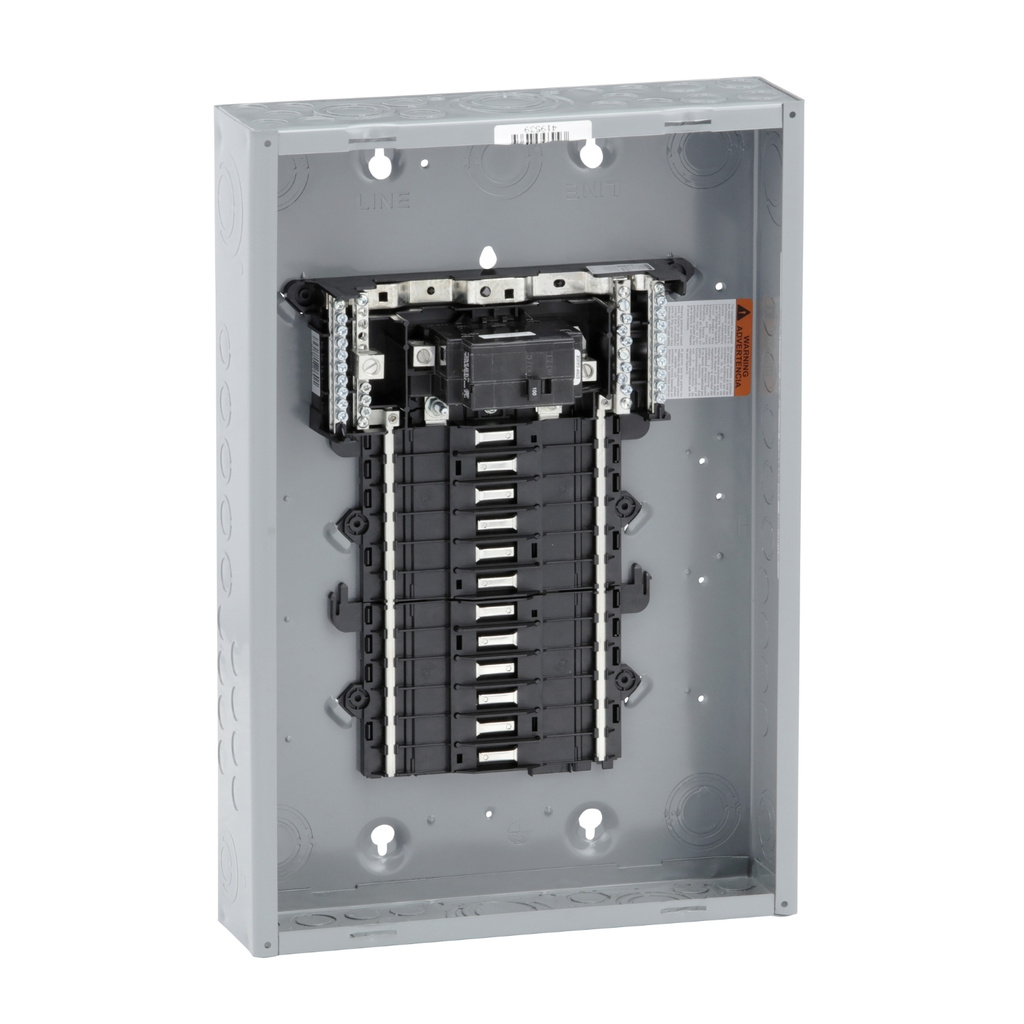

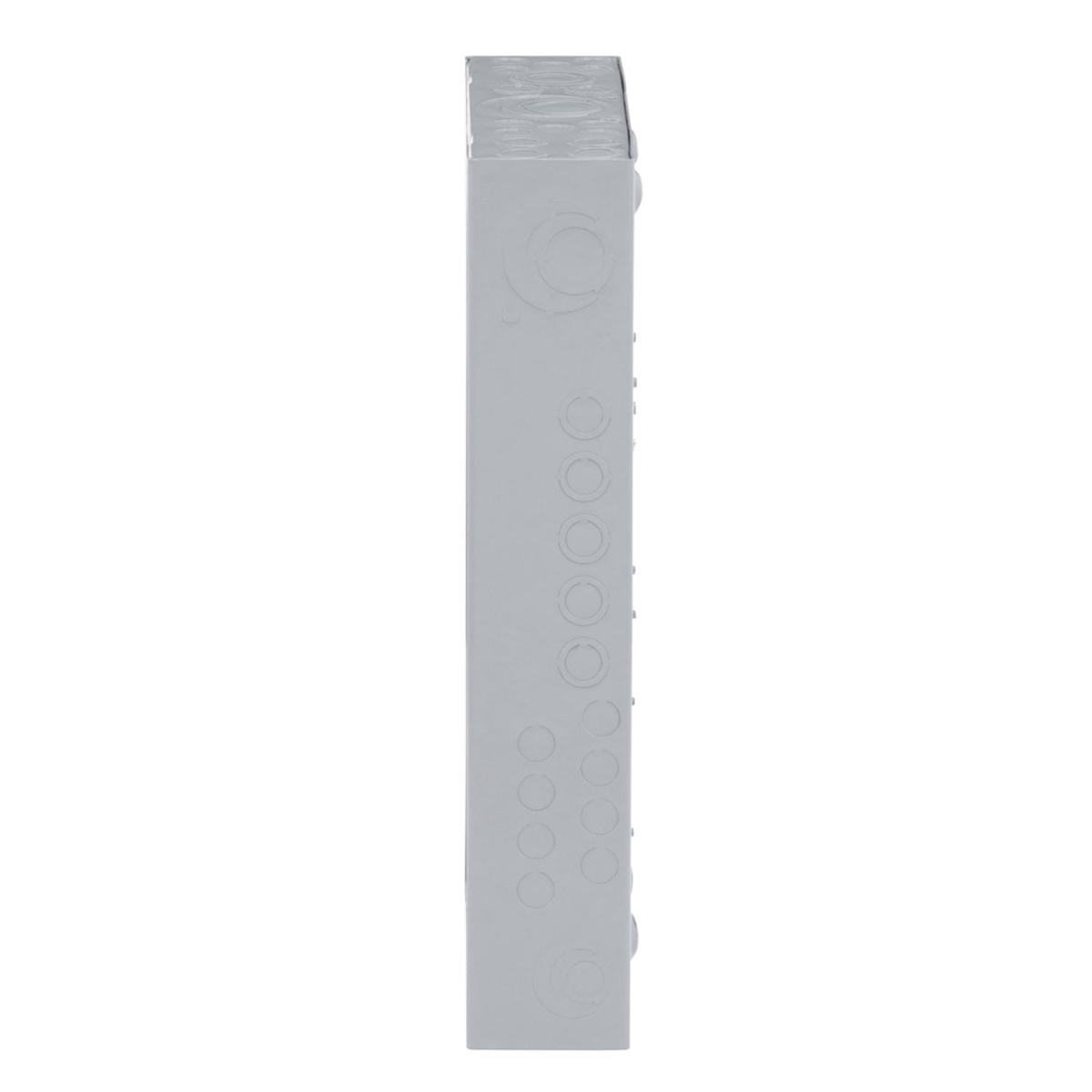

Square D QO™ N1 Convertible Main Breaker Loadcenters 100 A 120/240 V 24
Image shown may be a representative image and may not reflect the exact product
Related Items
Select Options
| Brand | Square D |
| Number of Phases | 1 phase 3-wire |
| Wire Size | 6 - 2/0 AWG |
| Voltage | 120/240 V |
| Bus Material | Copper |
| Enclosure Type | N1 Enclosure |
| Box Number | 7 |
| Number of Circuits | 34 Circuit |

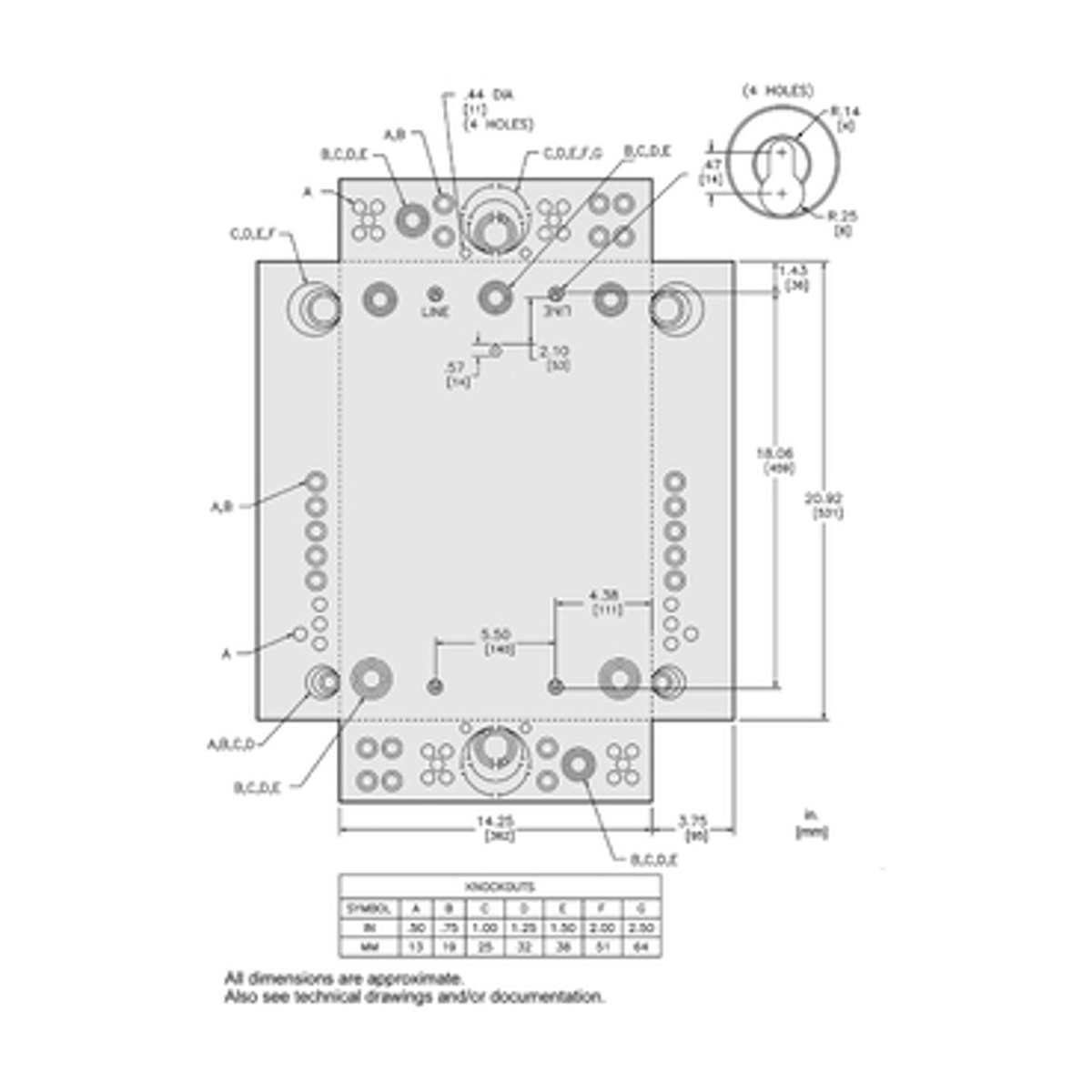

| Height | 20.91 in |
| Cover Type | order separately |
| Interrupting Rating | 22 kAIC |
| Number of Spaces | 24 |
| Cover - Catalog Number (Flush) | QOC24UF |
| Amperage | 100 A |
| Cover - Catalog Number (Surface) | QOC24US |
| Series | QO™ |
| NEMA Rating | NEMA 1 |
| Brochure 1 | Brochure |
|
| Certificate | Compliance |
|
| Load Centers: Section 1 - Digest 179 (2024) - Load-Centers-CSEDs-Digest-Catalog-0100CT2401-SEC-01 (pdf) | Catalog |
|
| QO and Homeline Load Centers and Circuit Breaker Installation Instructions - S1B33894 (pdf) | Installation and Instruction Manuals |
|
| Brochure 2 | Brochure |
|
| Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf) | Catalog |
|
| Brochure 3 | Brochure |
|
