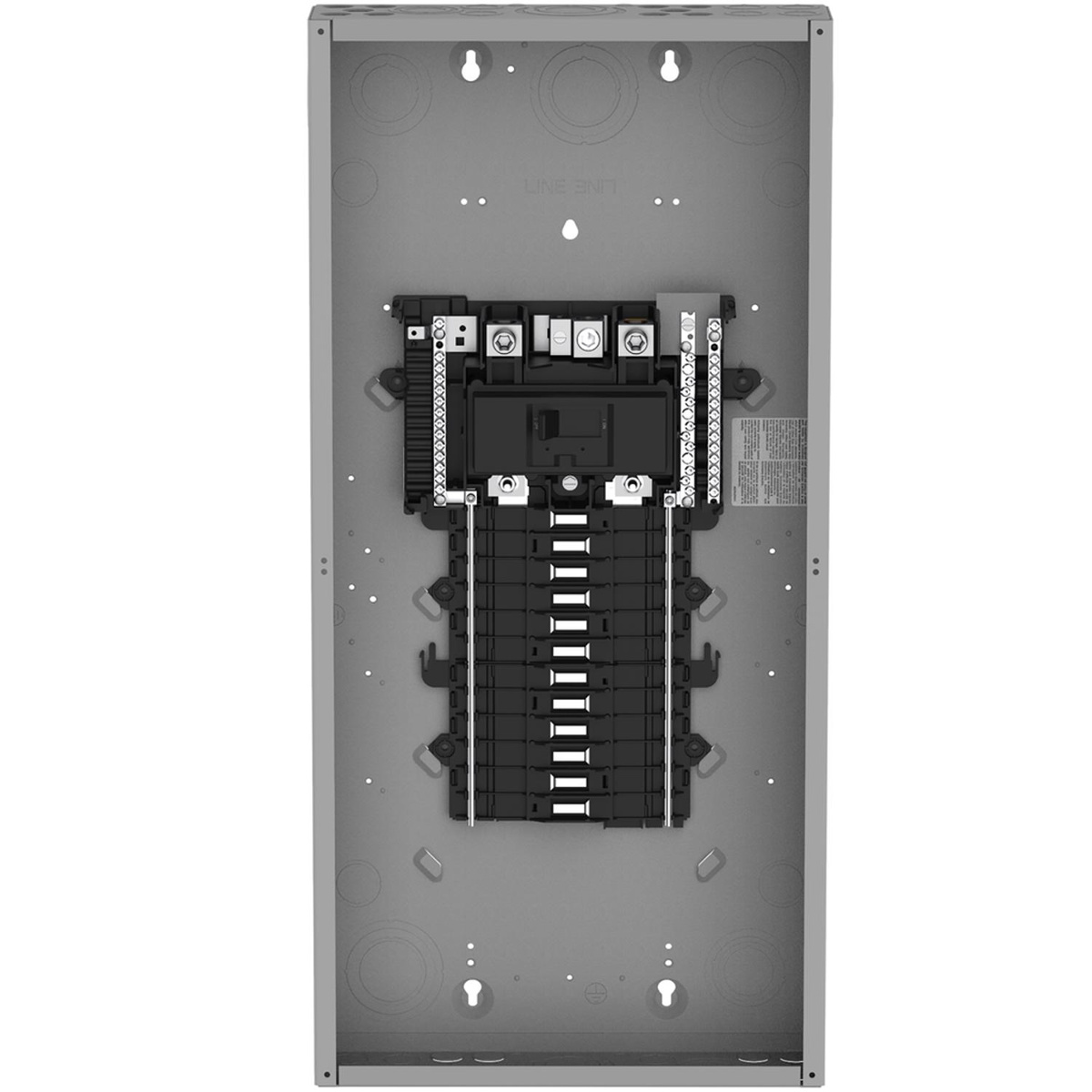

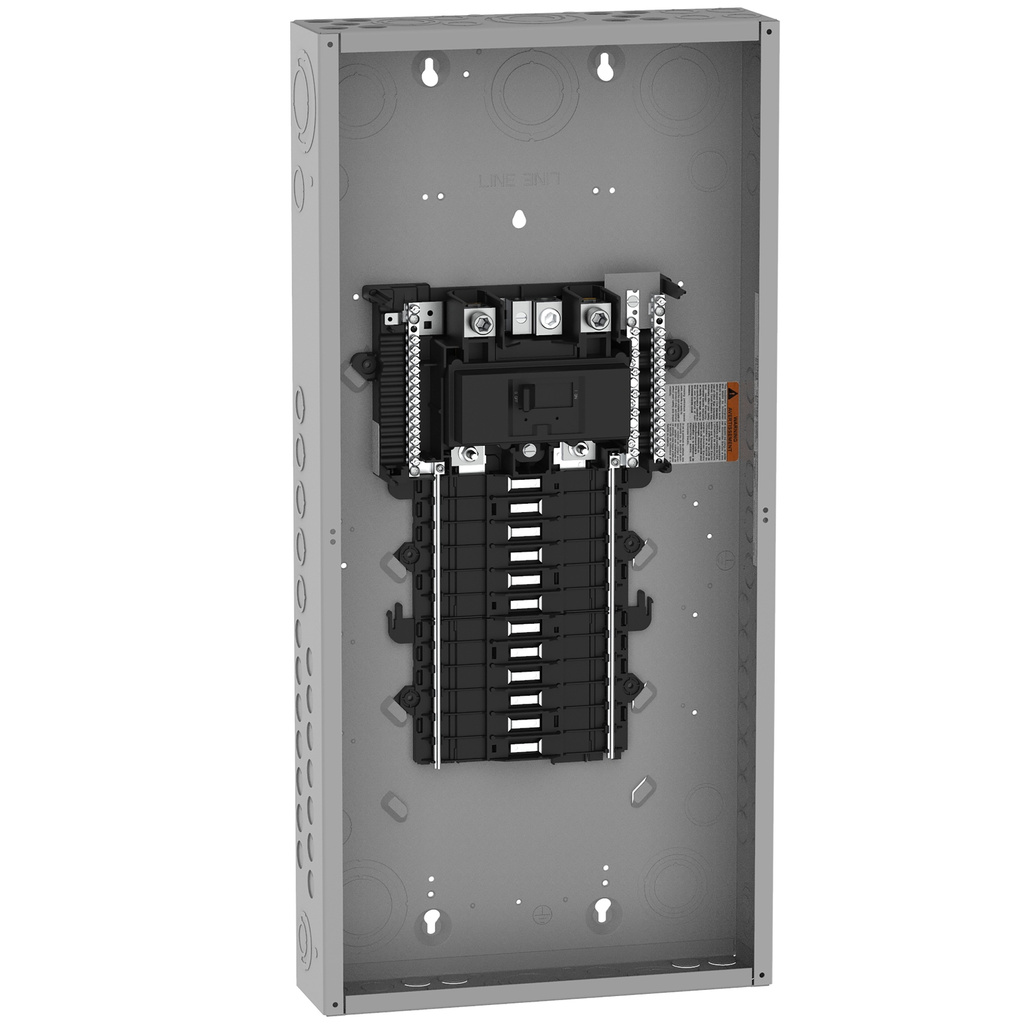

Square D QO™ N1 Convertible Main Breaker Loadcenters 200 A 120/240 V 24

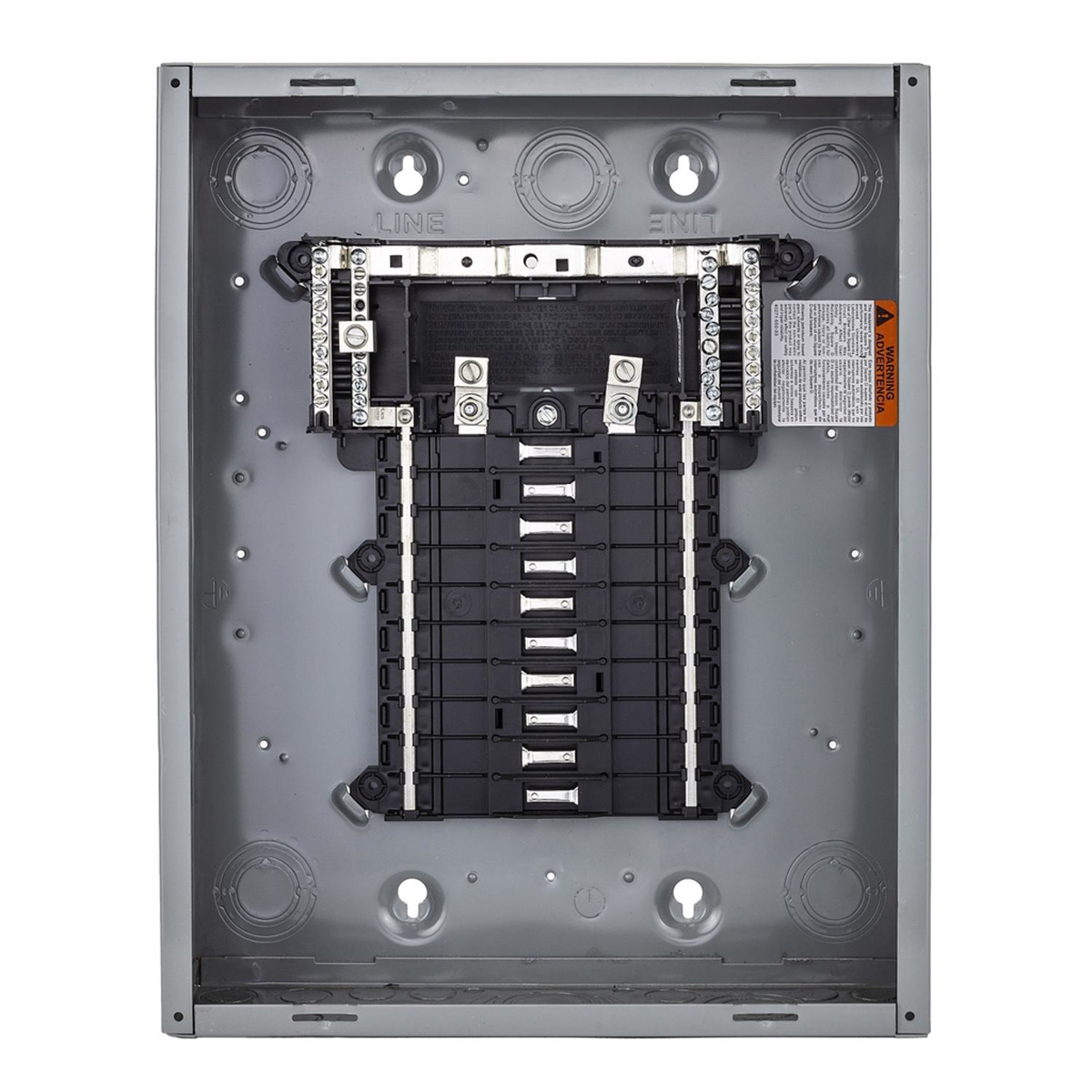

Image shown may be a representative image and may not reflect the exact product
Related Items
Select Options
| Brand | Square D |
| Number of Phases | 1 Phase |
| Voltage | 120/240 V |
| Bus Material | Copper |
| Number of Circuits | 36 Circuit |
| Cover Type | order separately |
| Number of Spaces | 24 |
| Amperage | 200 A |
| Series | QO™ |
| NEMA Rating | NEMA 1 |
| Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf) | Catalog |
|
| Brochure 2 | Brochure |
|
| Brochure 1 | Brochure |
|
| Load Centers: Section 1 - Digest 179 (2024) - Load-Centers-CSEDs-Digest-Catalog-0100CT2401-SEC-01 (pdf) | Catalog |
|
| Brochure 3 | Brochure |
|
| Certificate | Compliance |
|
| QO and Homeline Load Centers and Circuit Breaker Installation Instructions - S1B33894 (pdf) | Installation and Instruction Manuals |
|
