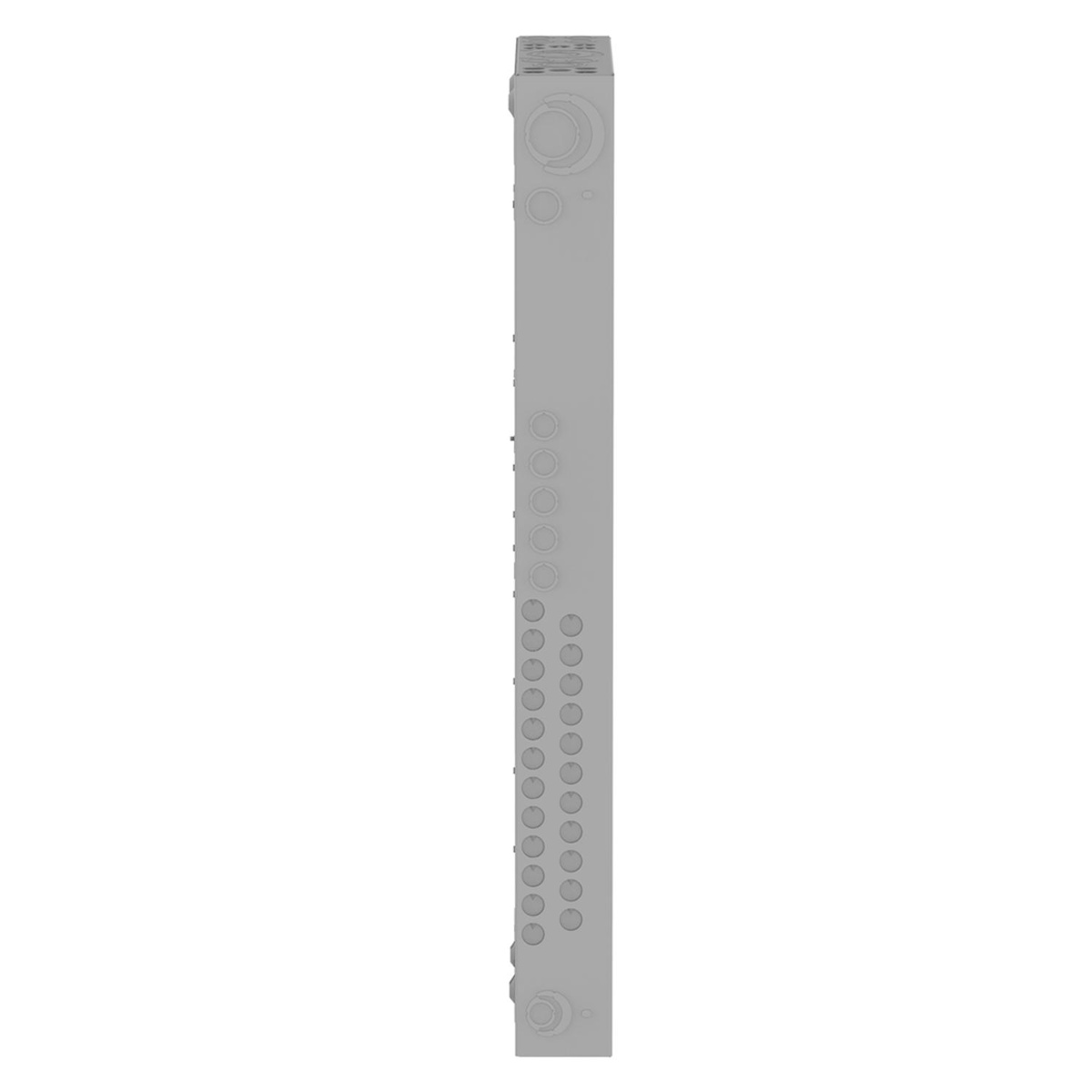

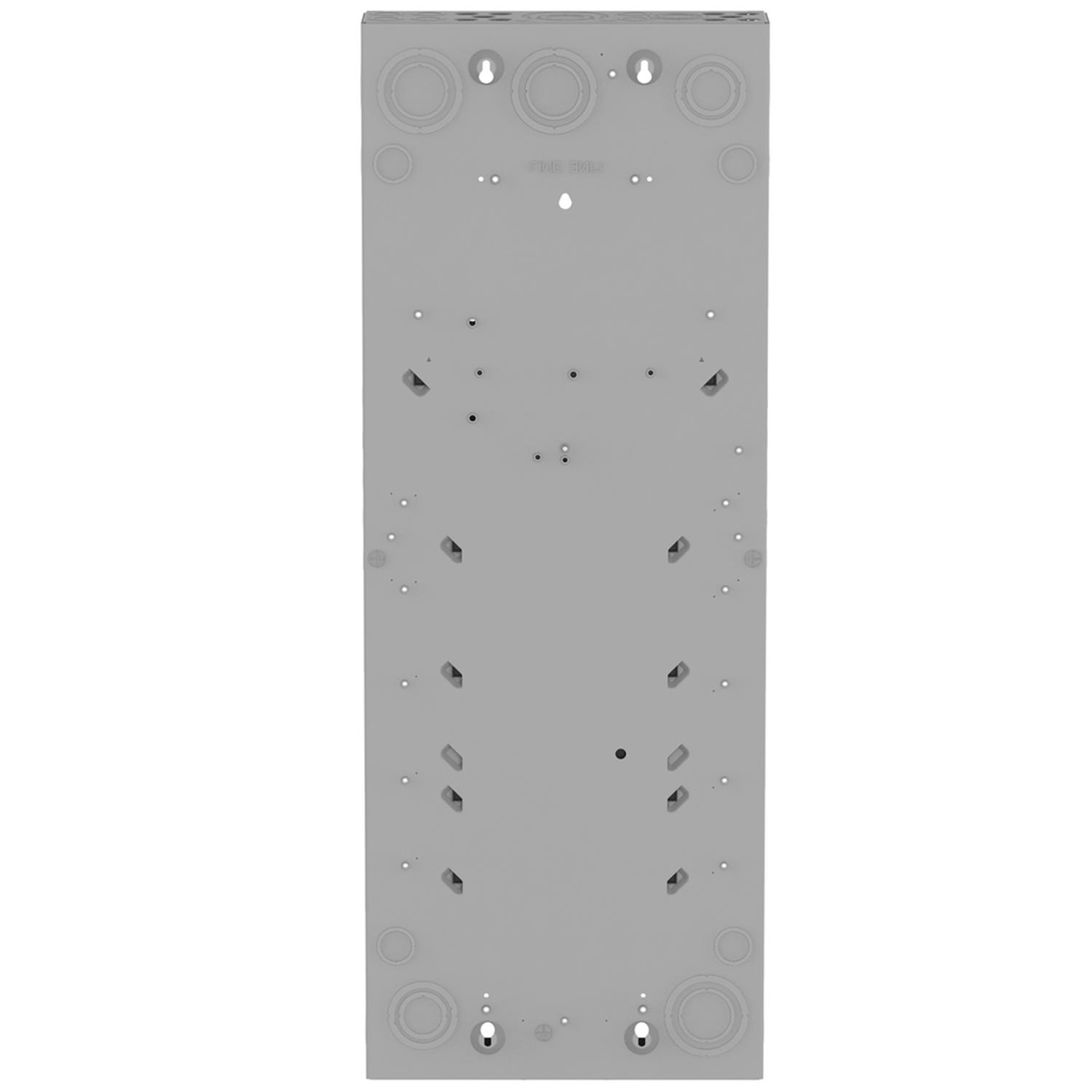

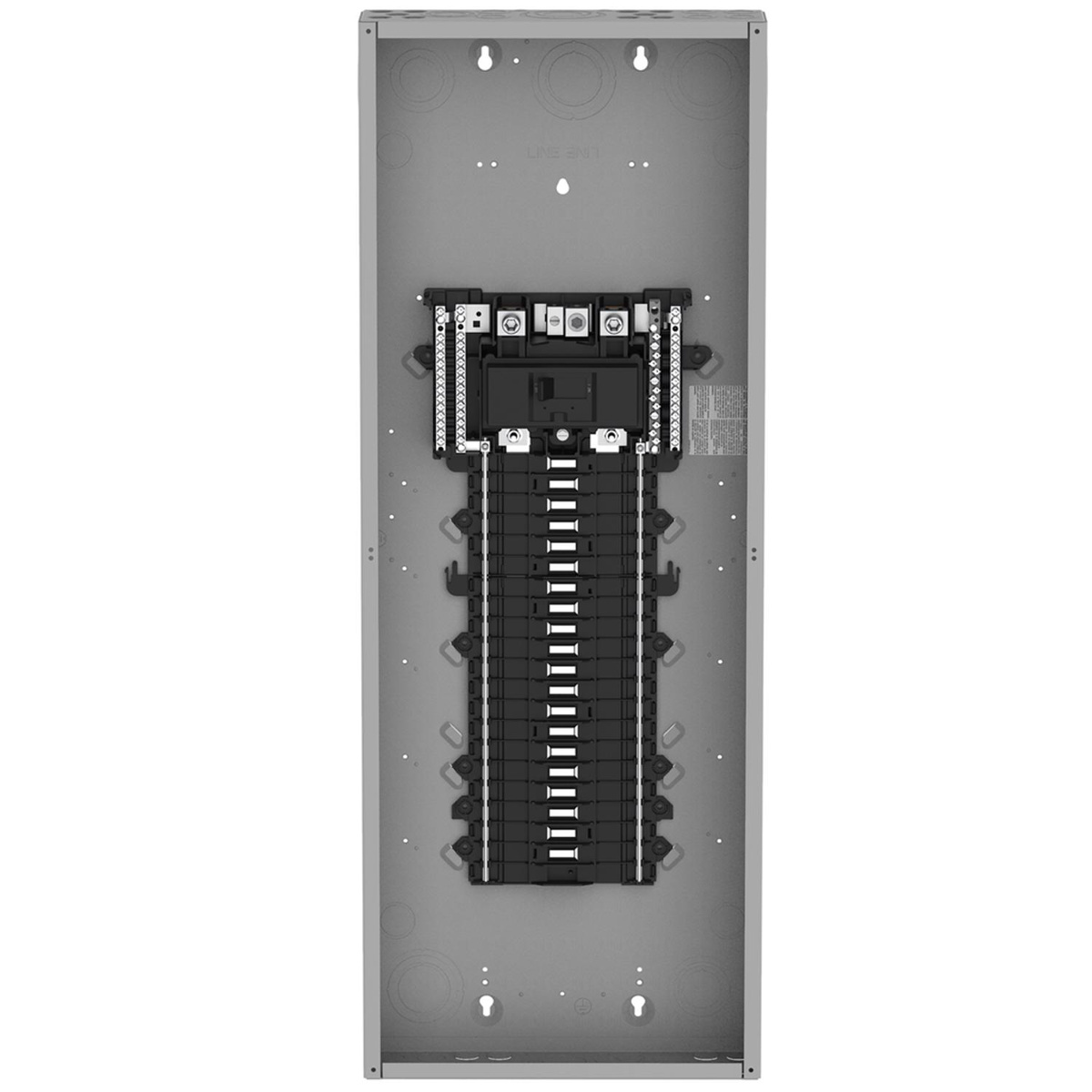

Square D QO™ N1 Convertible Main Breaker Loadcenters 225 A 120/240 V 40
Image shown may be a representative image and may not reflect the exact product
| Brand | Square D |
| Number of Phases | 1 Phase |
| Voltage | 120/240 V |
| Bus Material | Copper |
| Number of Circuits | 60 Circuit |
| Cover Type | order separately |
| Number of Spaces | 40 |
| Amperage | 225 A |
| Series | QO™ |
| NEMA Rating | NEMA 1 |
| Brochure 3 | Brochure |
|
| Brochure 2 | Brochure |
|
| Certificate | Compliance |
|
| Brochure 1 | Brochure |
|
