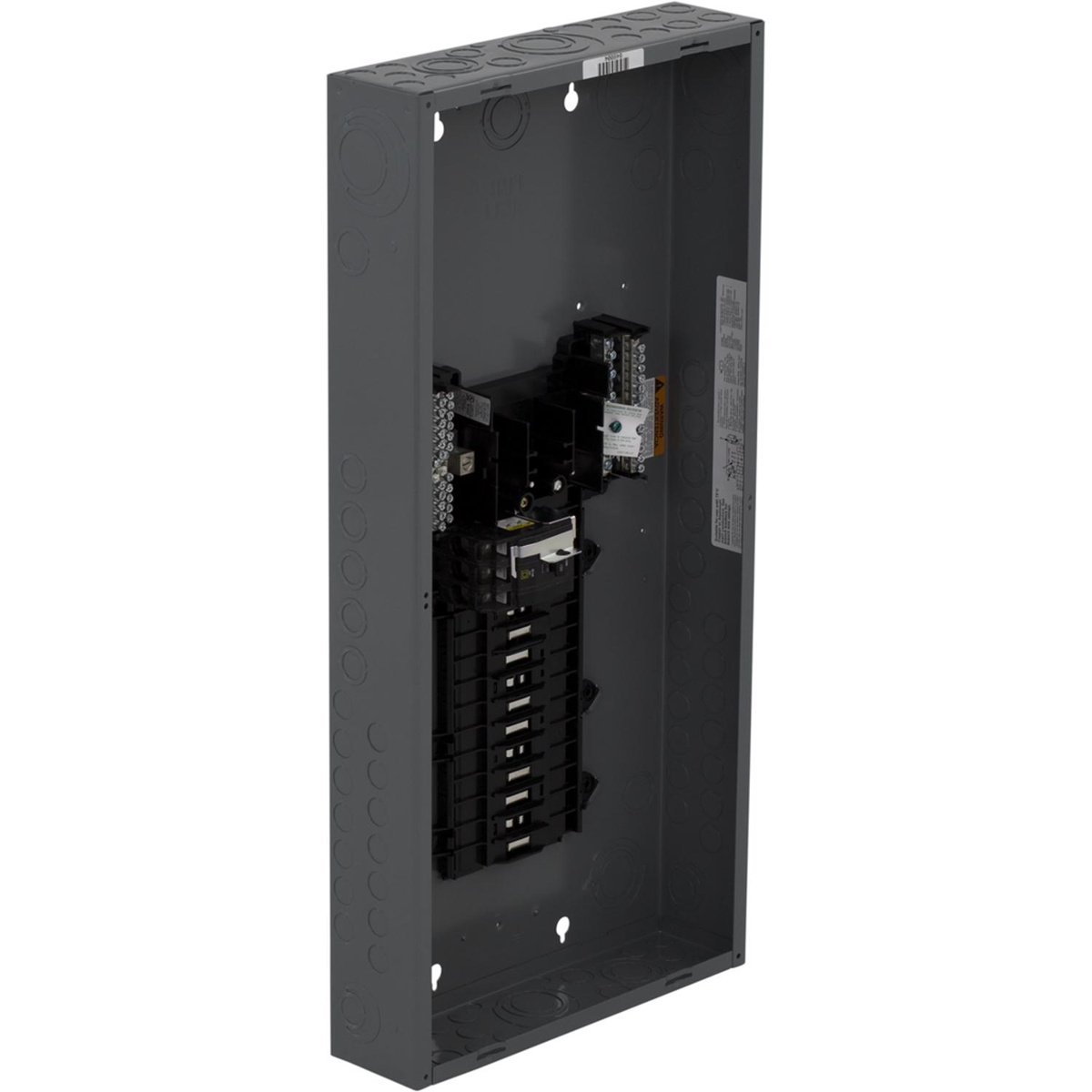

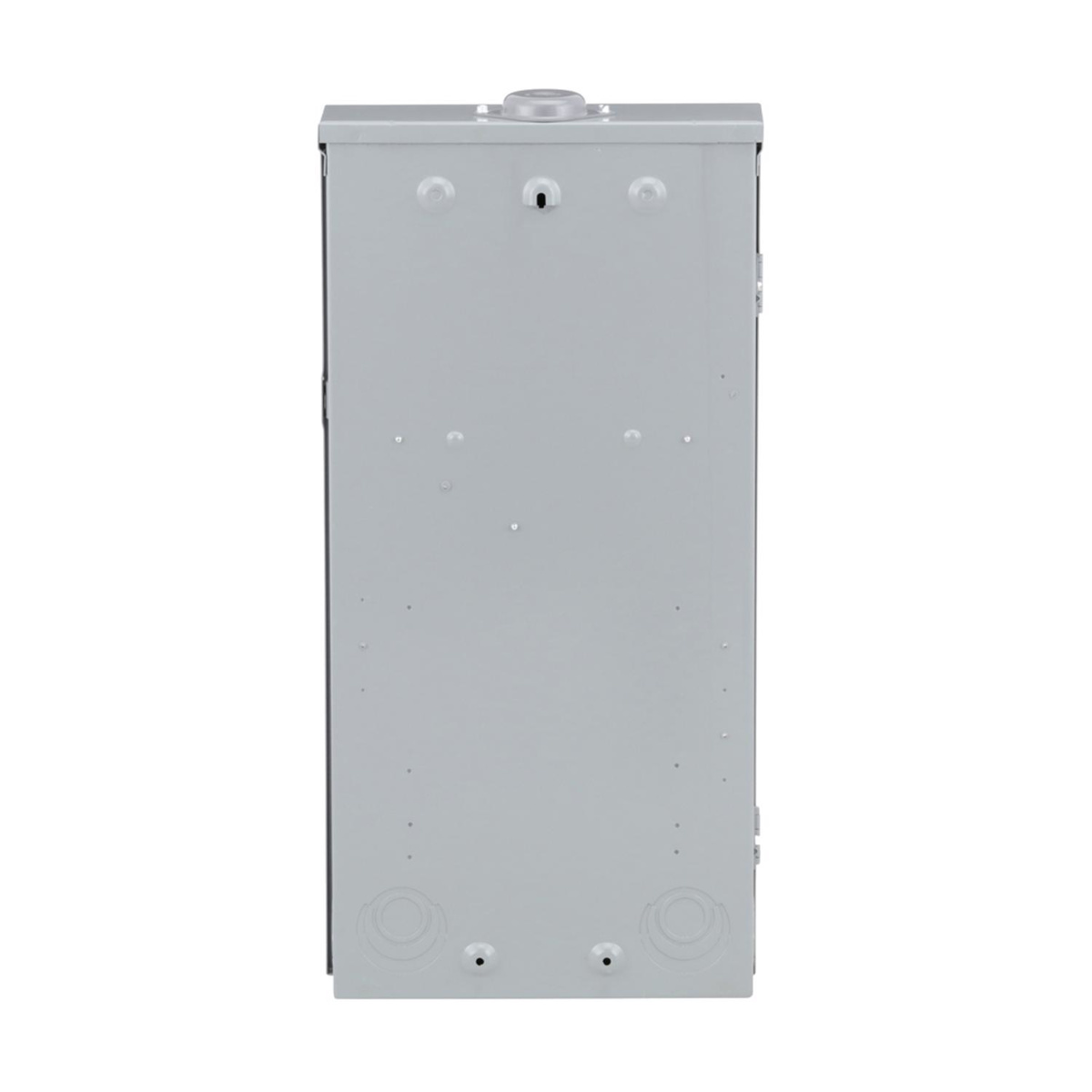

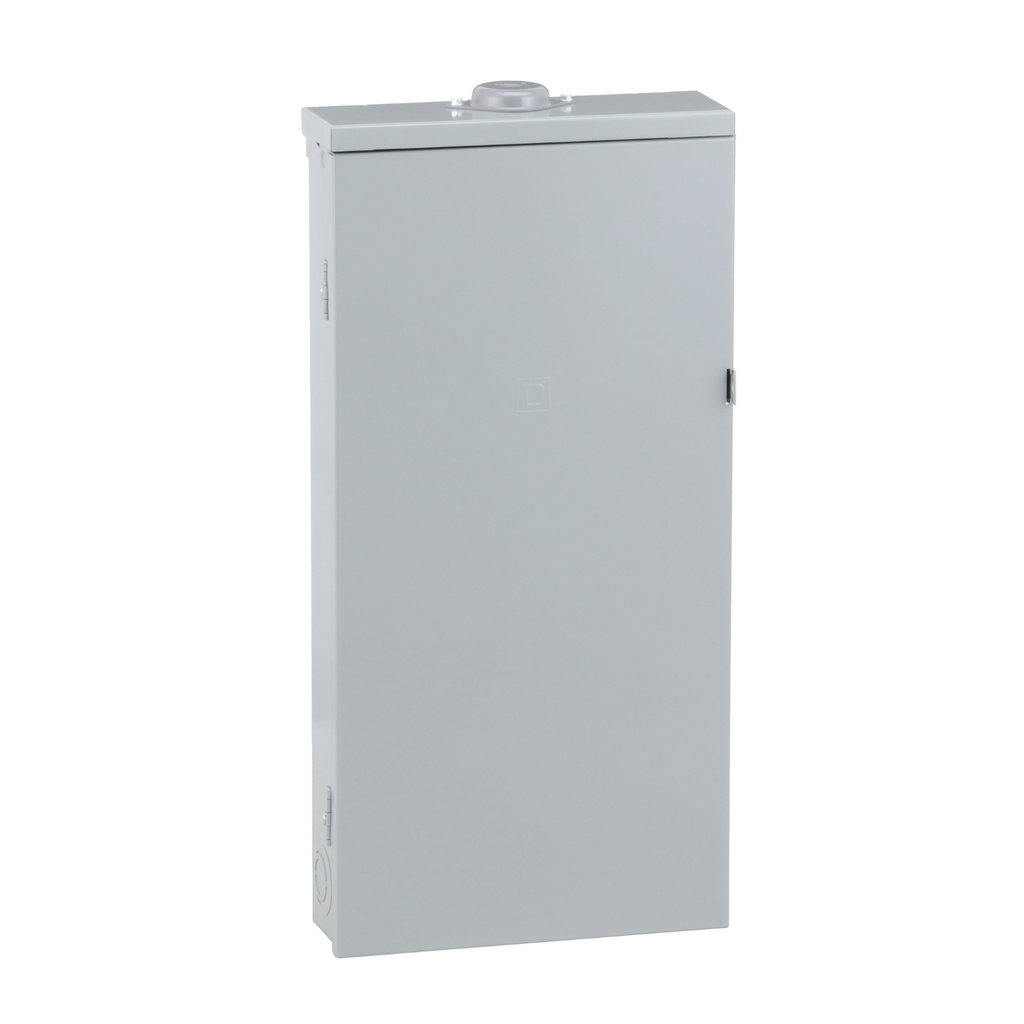

Square D QO™ N3R Convertible Main Breaker Loadcenters 100 A 120/240 V 27
Image shown may be a representative image and may not reflect the exact product
Related Items
Select Options
| Brand | Square D |
| Number of Phases | 3 phase 4 wires ,, 3 phase 3 wires |
| Wire Size | 4 - 2/0 AWG |
| Voltage | 120/240 V |
| Bus Material | Copper |
| Enclosure Type | N3R Enclosure |
| Includes | Cover |
| Box Number | 6R |
| Number of Circuits | 27 Circuit |
| Cover Type | surface cover |
| Interrupting Rating | 25 kAIC |
| Number of Spaces | 27 |
| Amperage | 100 A |
| Series | QO™ |
| NEMA Rating | NEMA 3R |
| Load Centers: Section 1 - Digest 179 (2024) - Load-Centers-CSEDs-Digest-Catalog-0100CT2401-SEC-01 (pdf) | Catalog |
|
| QO and Homeline Load Centers and Circuit Breaker Installation Instructions - S1B33894 (pdf) | Installation and Instruction Manuals |
|
| Square D Specification Sheet | Specification Sheet |
|
| Square D QO Load Centers and Circuit Breakers Brochure - 998-1170221_US_B (pdf) | Brochure |
|
| Square D Service Upgrade Load Centers Brochure - 1100BR0901 (pdf) | Brochure |
|
| Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf) | Catalog |
|
| Certificate | Compliance |
|
