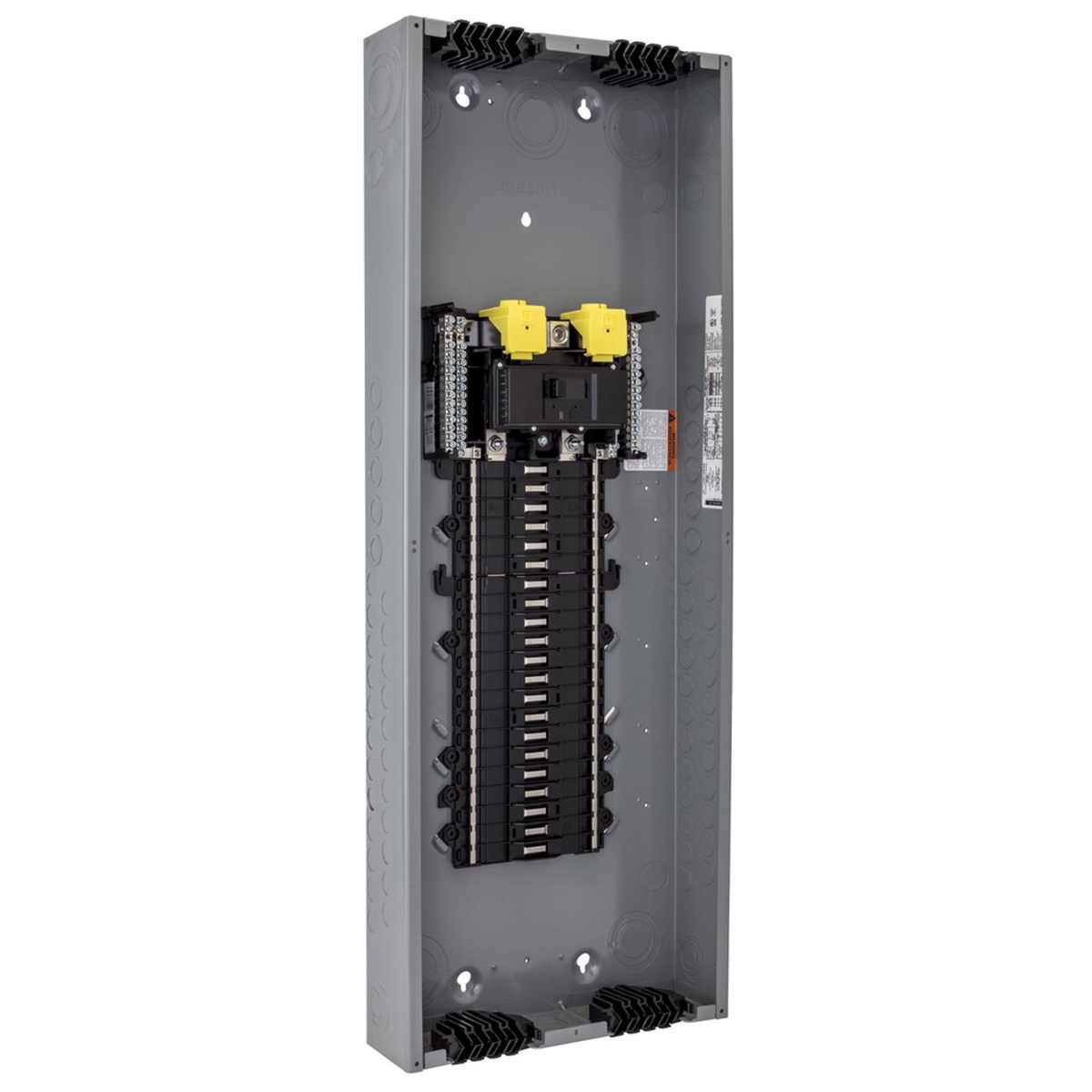

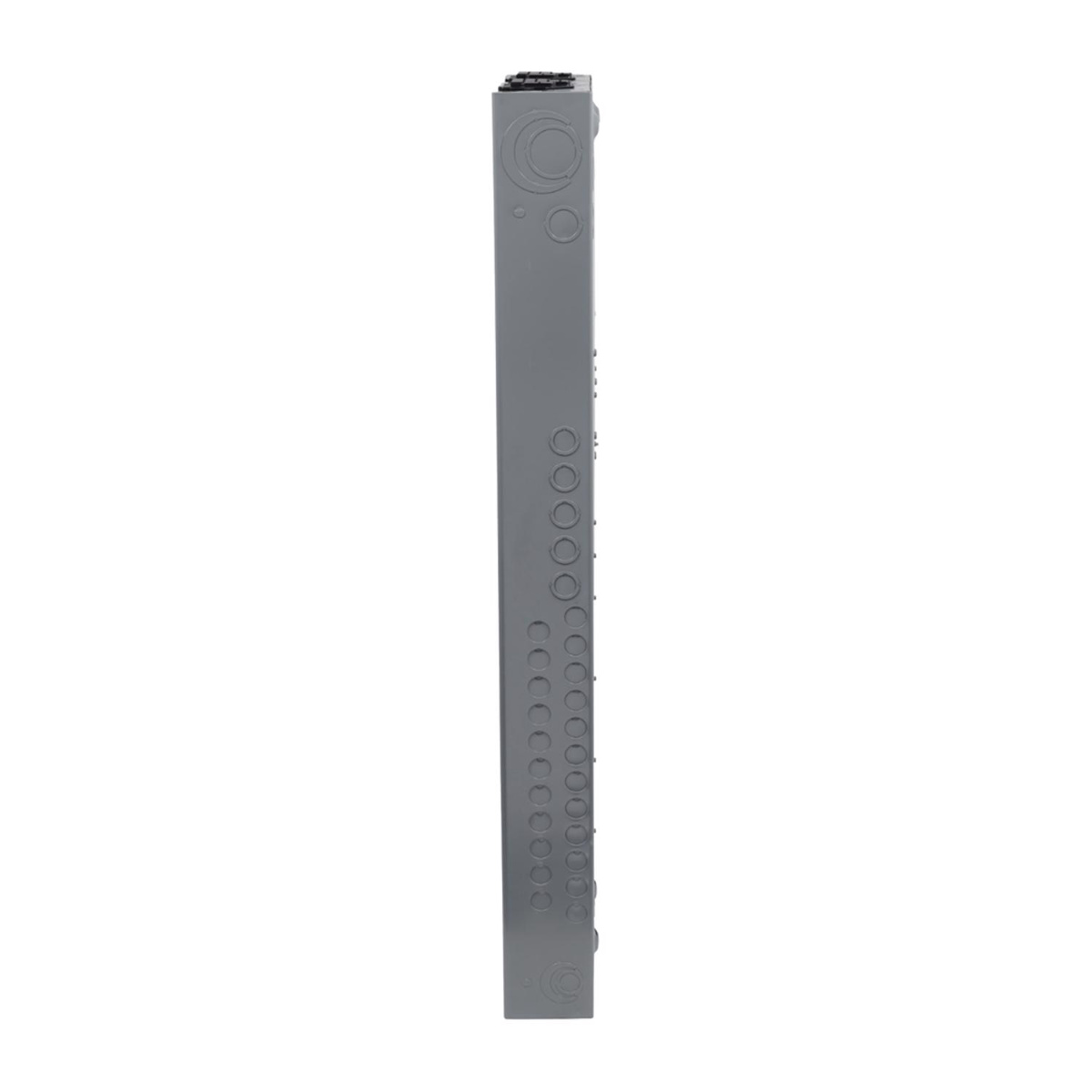

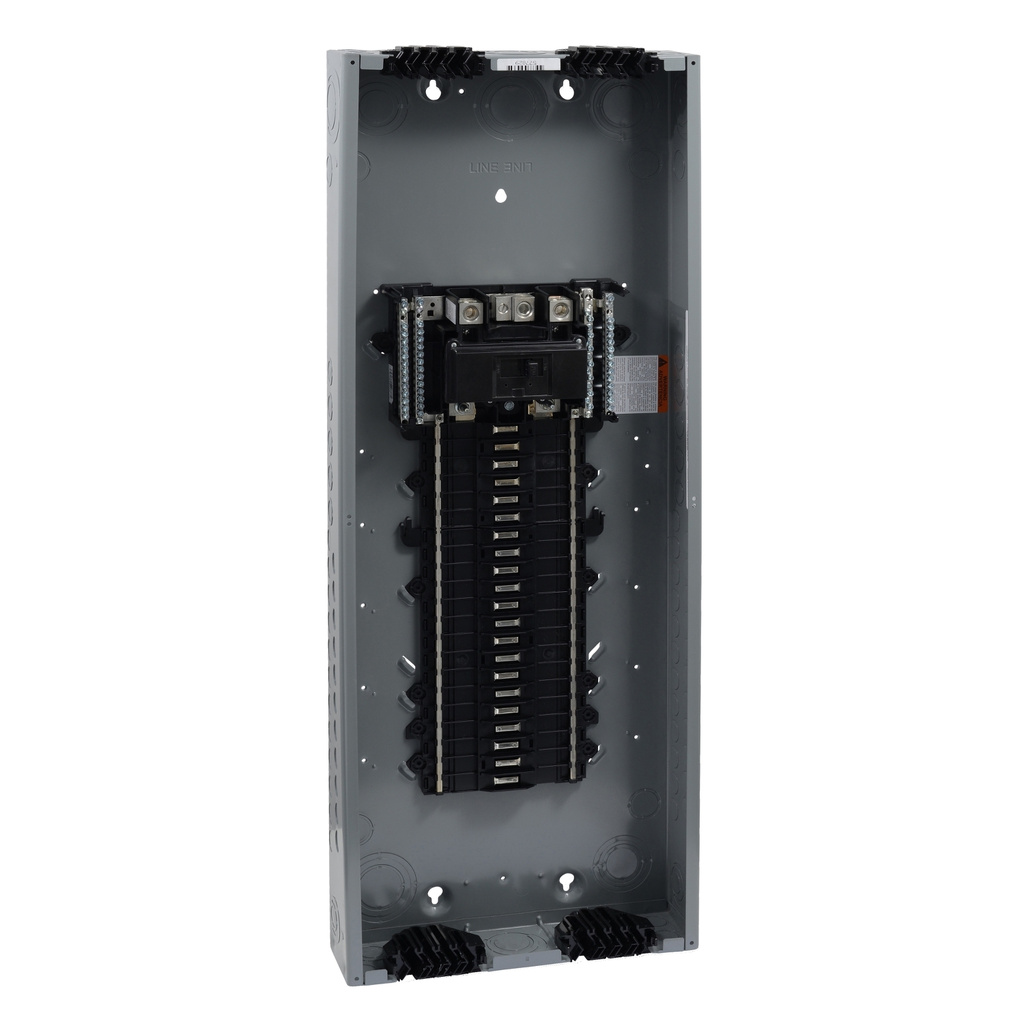

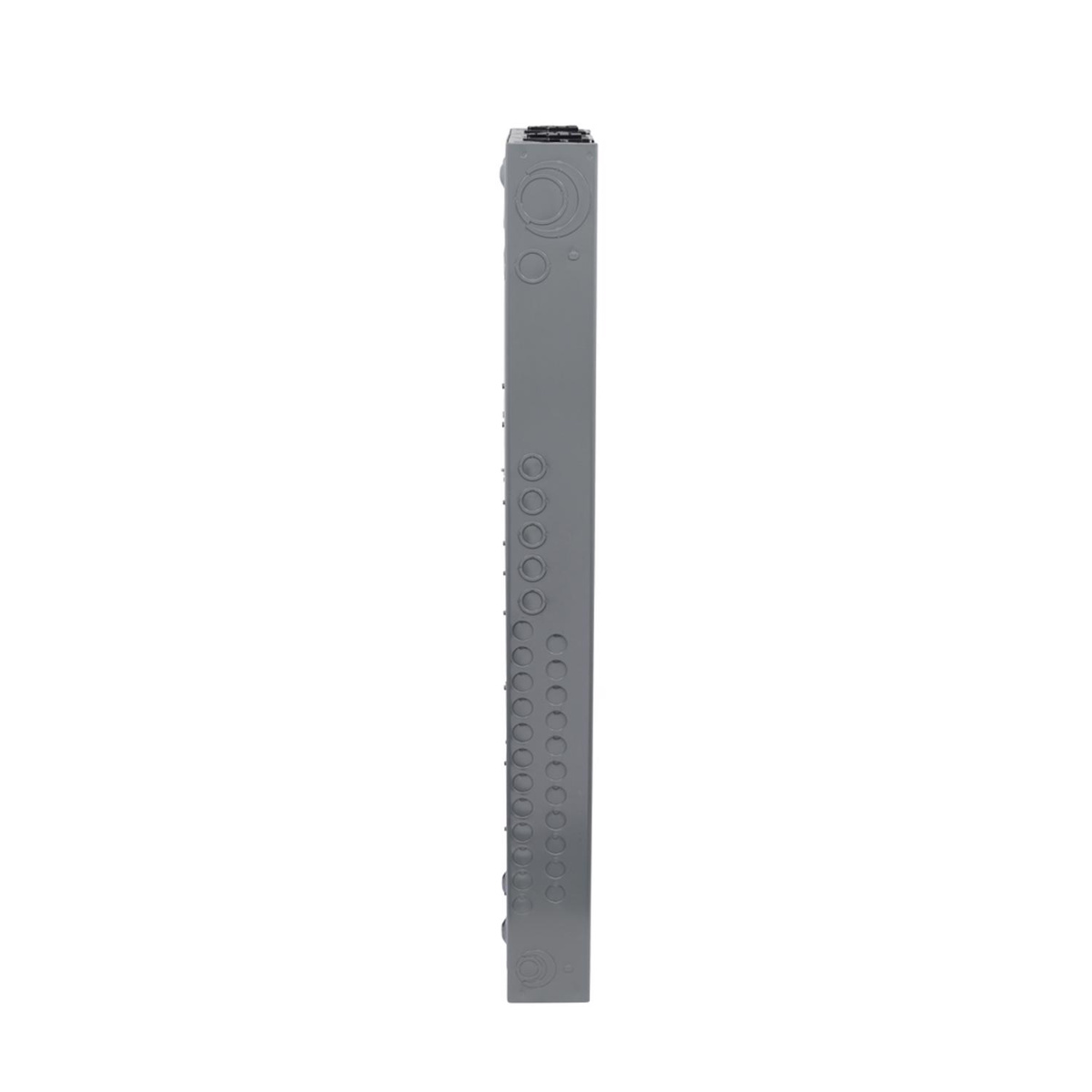

Square D QO™ Qwik-Grip™ N1 Convertible Main Breaker Loadcenters 200 A 120/240 V 42
Related Items
Select Options
| Brand | Square D |
| Number of Phases | 1 phase |
| Depth | 3.74 in |
| Wire Size | 4/0 AWG - 250 kcmil |
| Voltage | 120/240 V |
| Bus Material | Aluminum |
| Box Number | 11Q |
| Number of Circuits | 52 Circuit |
| Cover - Catalog Number (Combination) | QOC42UC |
| Height | 39.37 in |
| Cover Type | Combination/Flush/Surface (Not Included) |
| Interrupting Rating | 22 kAIC |
| Number of Spaces | 42 |
| Cover - Catalog Number (Flush) | QOC42UF |
| Amperage | 200 A |
| Cover - Catalog Number (Surface) | QOC42US |
| Series | QO™ |
| NEMA Rating | NEMA 1 |
| Brochure 1 | Brochure |
|
| Certificate | Compliance |
|
| QO and Homeline Load Centers and Circuit Breaker Installation Instructions - S1B33894 (pdf) | Installation and Instruction Manuals |
|
| Load Centers: Section 1 - Digest 179 (2024) - Load-Centers-CSEDs-Digest-Catalog-0100CT2401-SEC-01 (pdf) | Catalog |
|
| Brochure 2 | Brochure |
|
| Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf) | Catalog |
|
