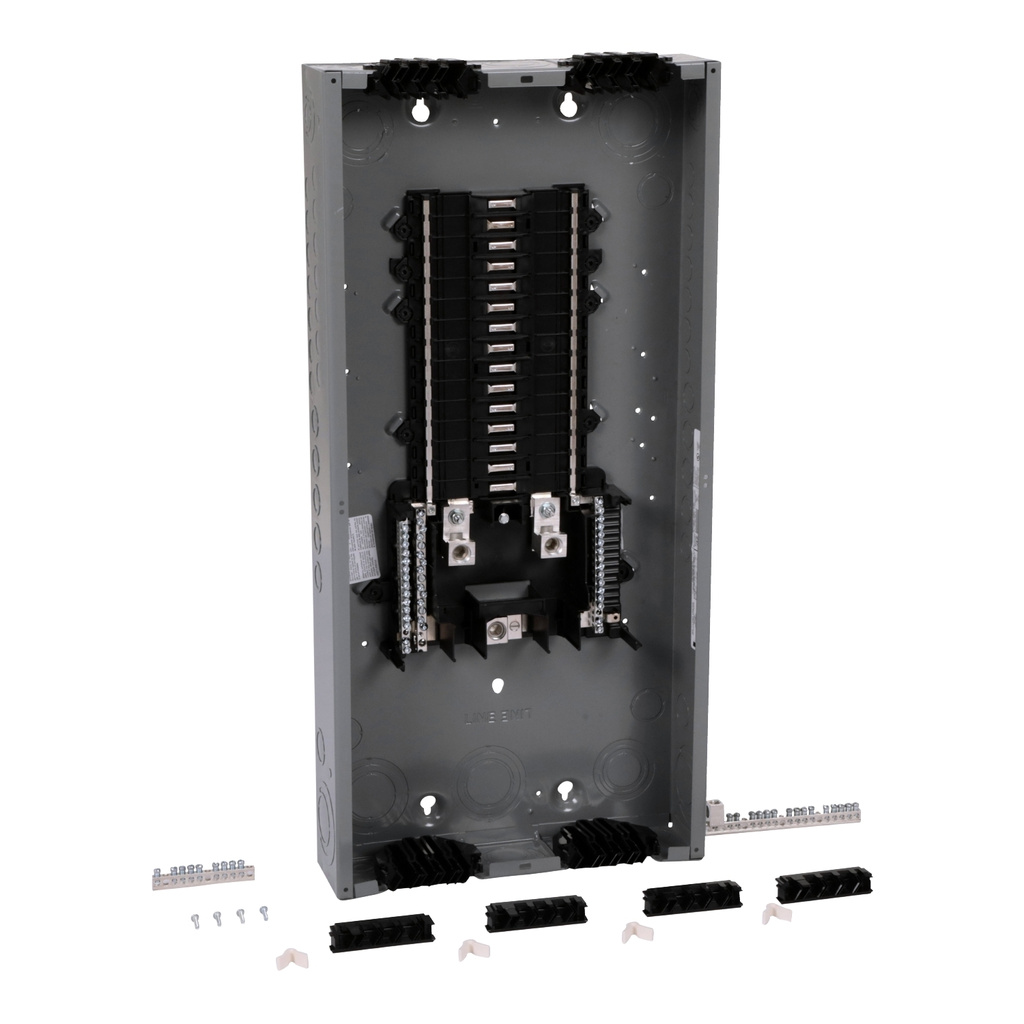

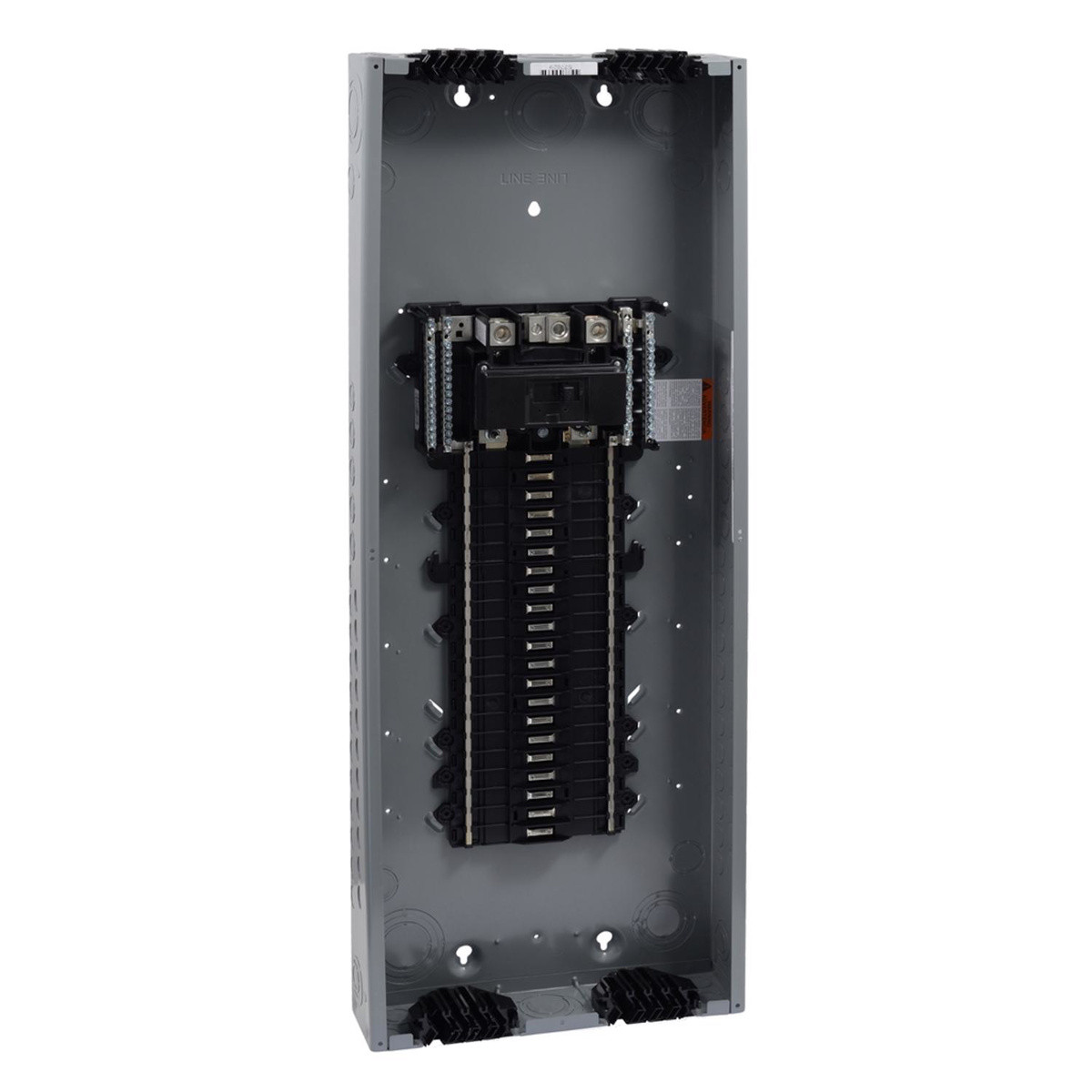

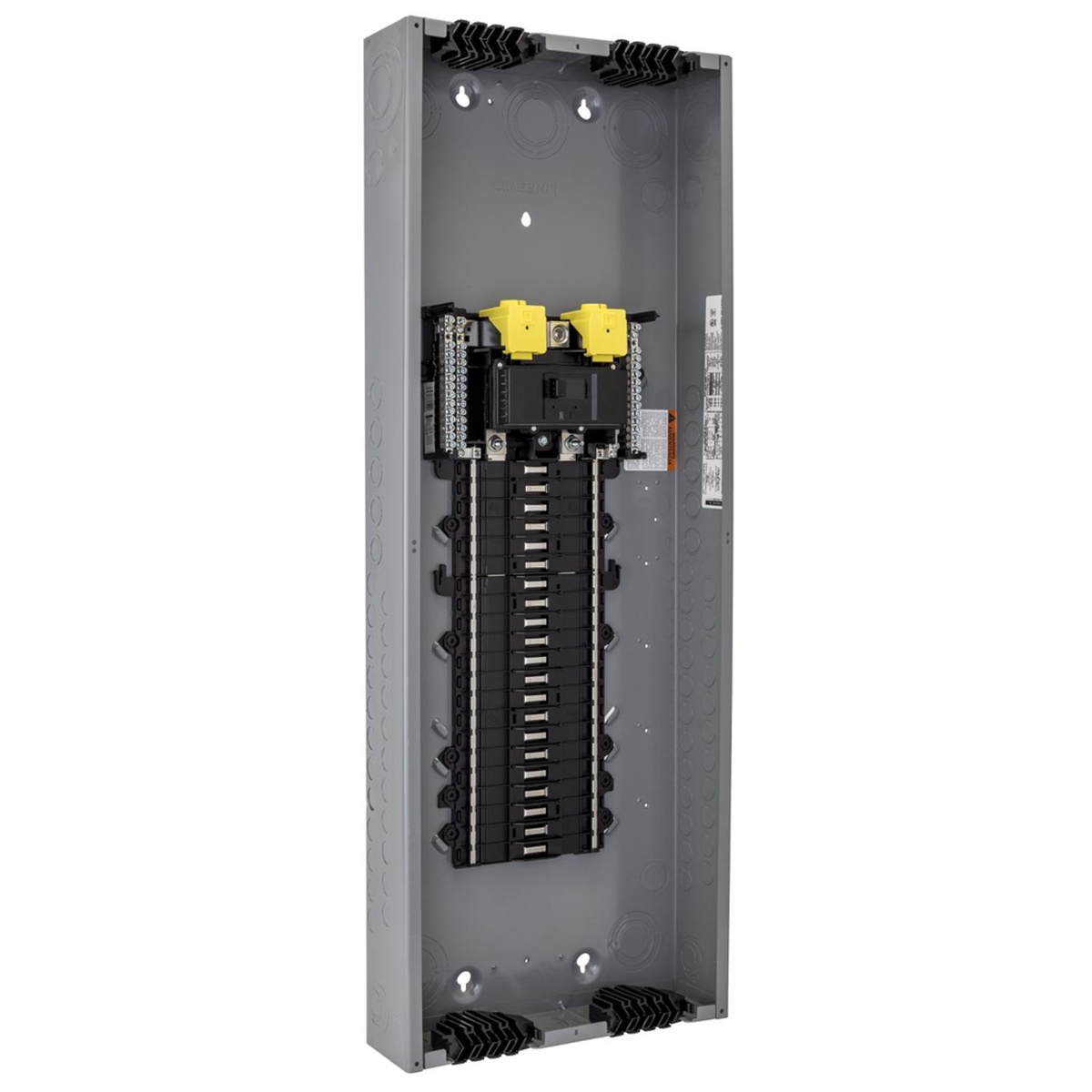

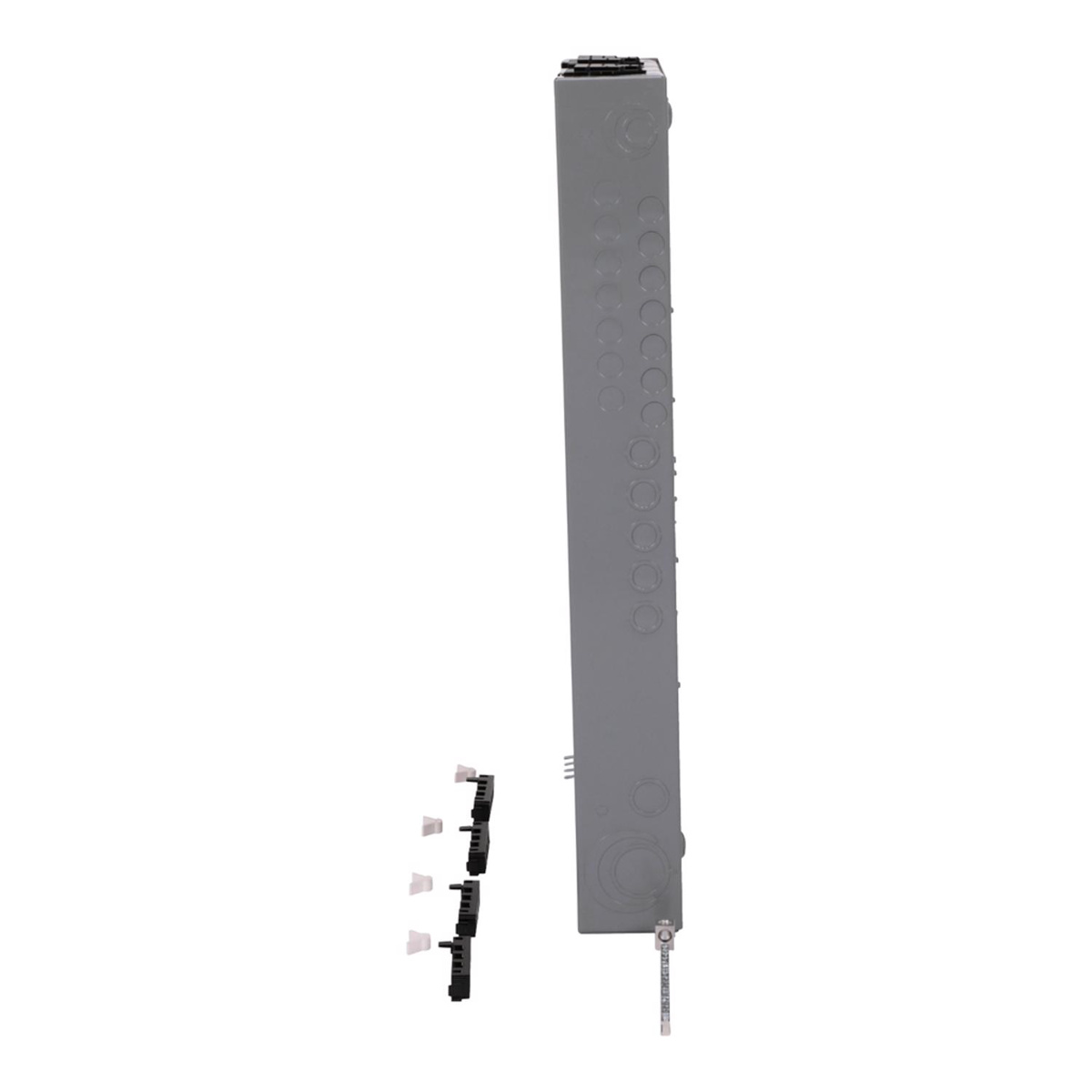

Square D QO™ Qwik-Grip™ N1 Convertible Main Lug Loadcenters 200 A 120/240 V 30
Image shown may be a representative image and may not reflect the exact product
Related Items
Select Options
| Circuit Breaker Type | QO |
| Brand | Square D |
| Number of Phases | 1 phase |
| Wire Size | 6 AWG - 300 kcmil |
| Voltage | 120/240 V |
| Bus Material | Copper |
| Includes | Order Cover Separately |
| Box Number | 9Q |
| Number of Circuits | 40 Circuit |
| Cover Type | order separately |
| Number of Spaces | 30 |
| Cover - Catalog Number (Flush) | QOC30UF |
| Amperage | 200 A |
| Cover - Catalog Number (Surface) | QOC30US |
| Series | QO™ |
| NEMA Rating | NEMA 1 |
| QO and Homeline Load Centers and Circuit Breaker Installation Instructions - S1B33894 (pdf) | Installation and Instruction Manuals |
|
| Brochure 2 | Brochure |
|
| Square D Specification Sheet | Specification Sheet |
|
| Load Centers: Section 1 - Digest 179 (2024) - Load-Centers-CSEDs-Digest-Catalog-0100CT2401-SEC-01 (pdf) | Catalog |
|
| Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf) | Catalog |
|
| Certificate | Compliance |
|
| Brochure 1 | Brochure |
|
