Square D QO™ Qwik-Grip™ N1 Convertible Main Lug Loadcenters 225 A 120/240 V 42

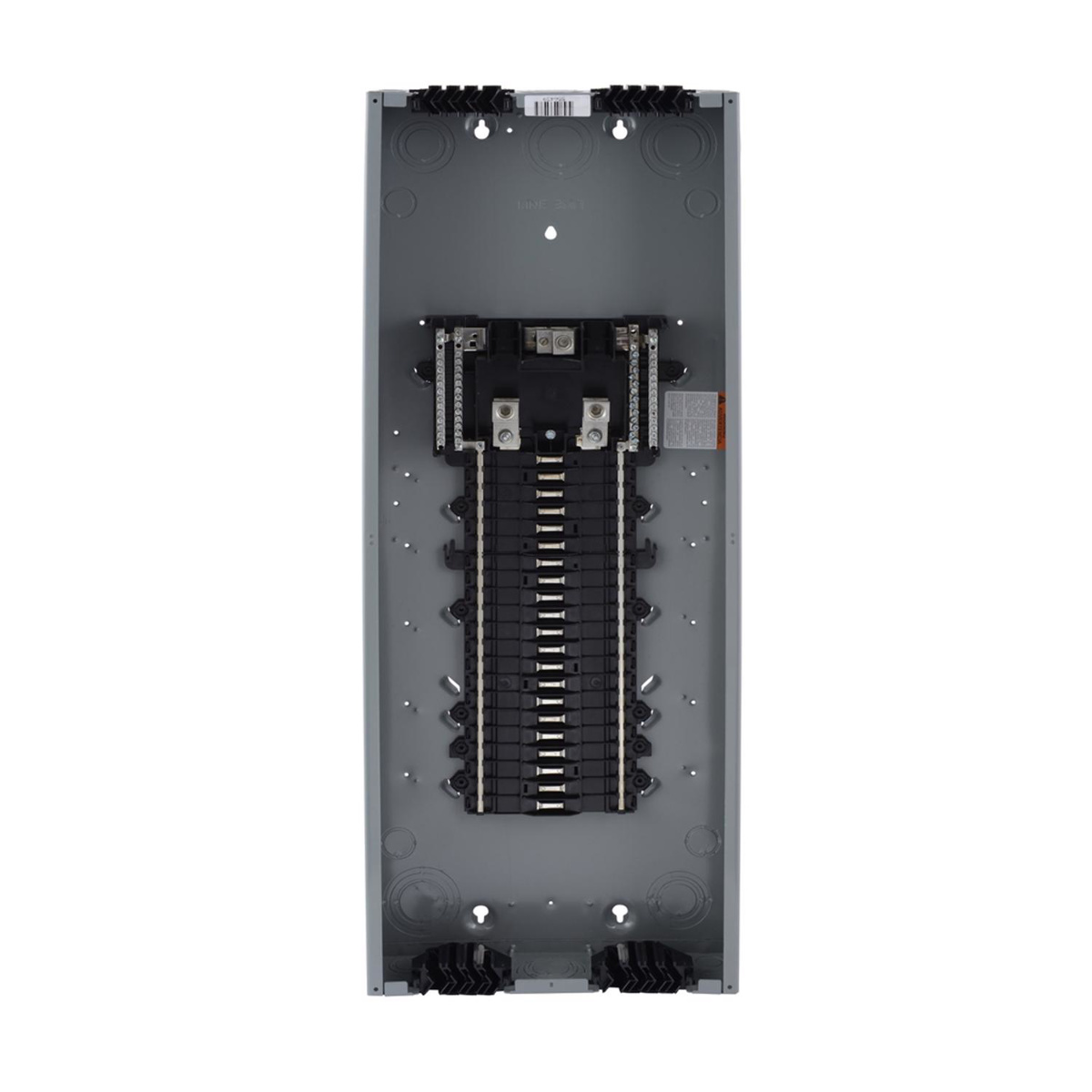

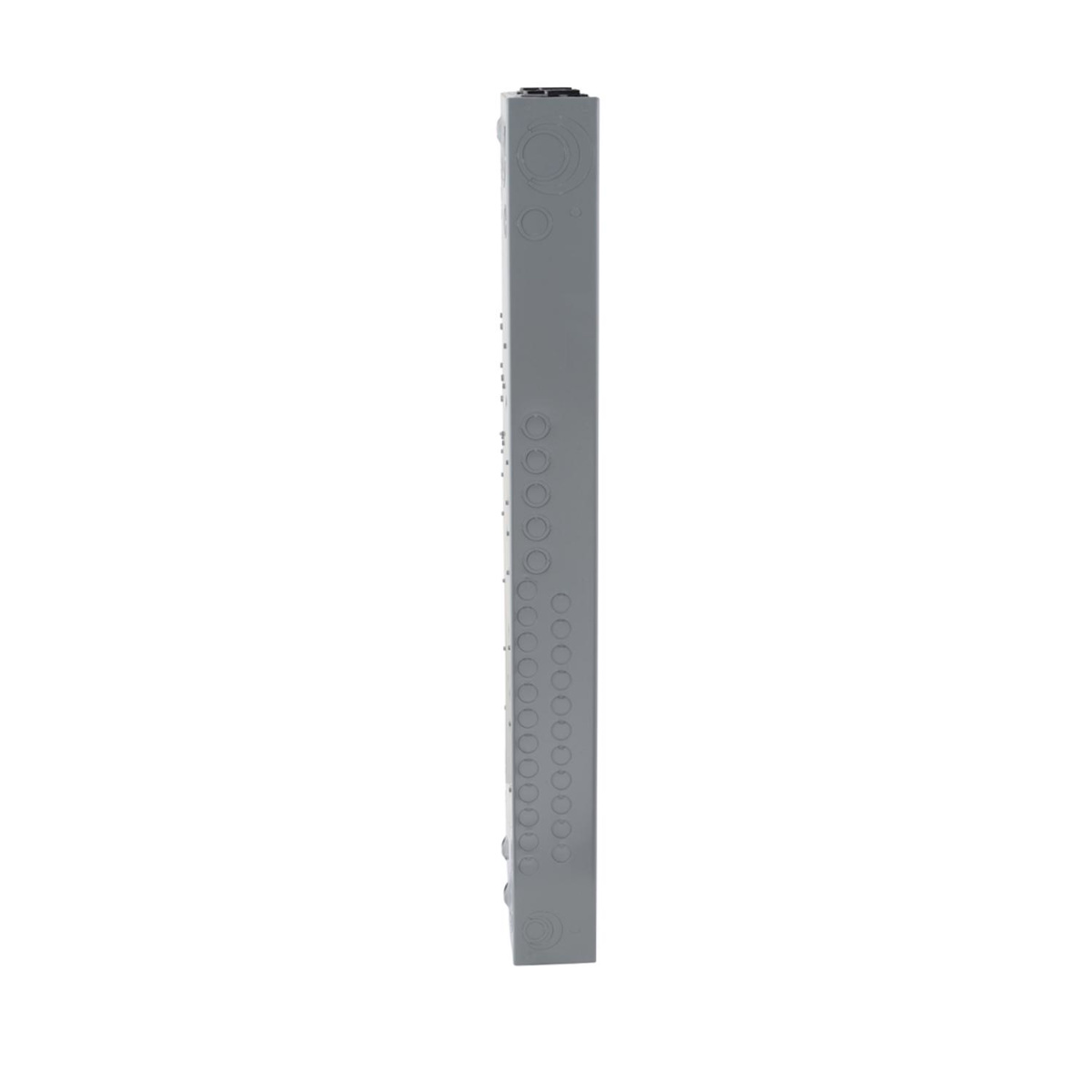

Image shown may be a representative image and may not reflect the exact product
| Brand | Square D |
| Number of Phases | 1 Phase |
| Depth | 3.74 in |
| Wire Size | 6 - 300 kcmil |
| Voltage | 120/240 V |
| Bus Material | Aluminum |
| Box Number | 11Q |
| Number of Circuits | 42 Circuit |
| Cover - Catalog Number (Combination) | QOC42UC |
| Height | 37.99 in |
| Cover Type | order separately |
| Interrupting Rating | 65 kAIC |
| Number of Spaces | 42 |
| Cover - Catalog Number (Flush) | QOC42UF |
| Amperage | 225 A |
| Cover - Catalog Number (Surface) | QOC42US |
| Series | QO™ |
| NEMA Rating | NEMA 1 |
| Brochure 2 | Brochure |
|
| Square D Retail Products Catalog | Catalog |
|
| Certificate | Compliance |
|
| Brochure 1 | Brochure |
|
