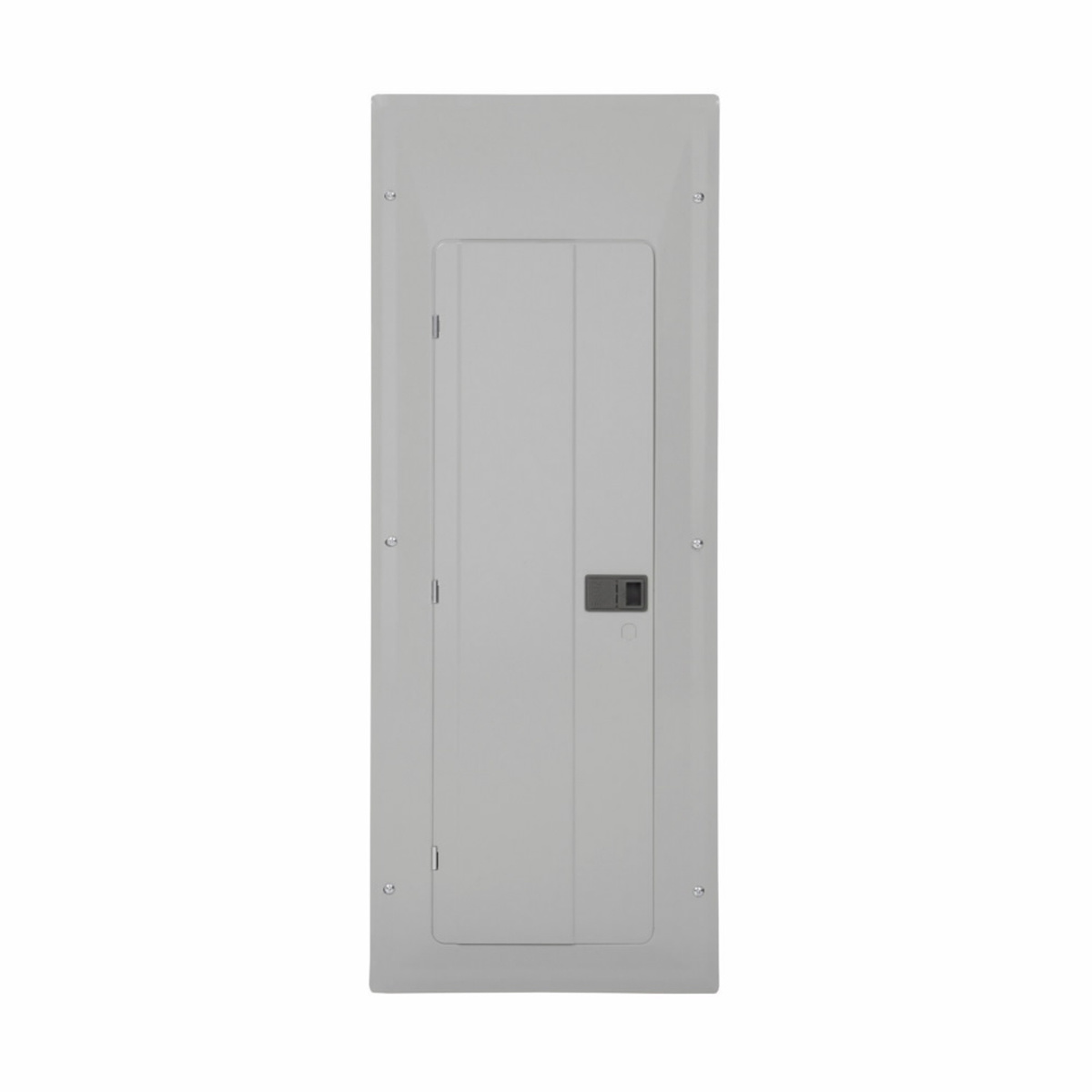

Eaton BR NEMA 1 Main Breaker Load Centers 200 A 208Y/120 VAC 30 Space
Mfg #:
3BR3042B200
BOR #:
3276469
| Brand | Eaton |
| Interrupting Rating | 10 kAIC |
| Number of Spaces | 30 Space |
| Amperage | 200 A |
| Series | BR Series |
| NEMA Rating | NEMA 1 |
| Number of Phases | 3 Phase |
| Wire Size | 1 AWG - 250 kcmil |
| Voltage | 208Y/120 VAC |
| Bus Material | Aluminum |
| Includes | Cover |
| Box Number | L1 |
| Enclosure Type | N1 Enclosure |
| Number of Circuits | 42 Circuit |
| Cover Type | Combination |
| Eaton Specification Sheet | Specification Sheet |
|
