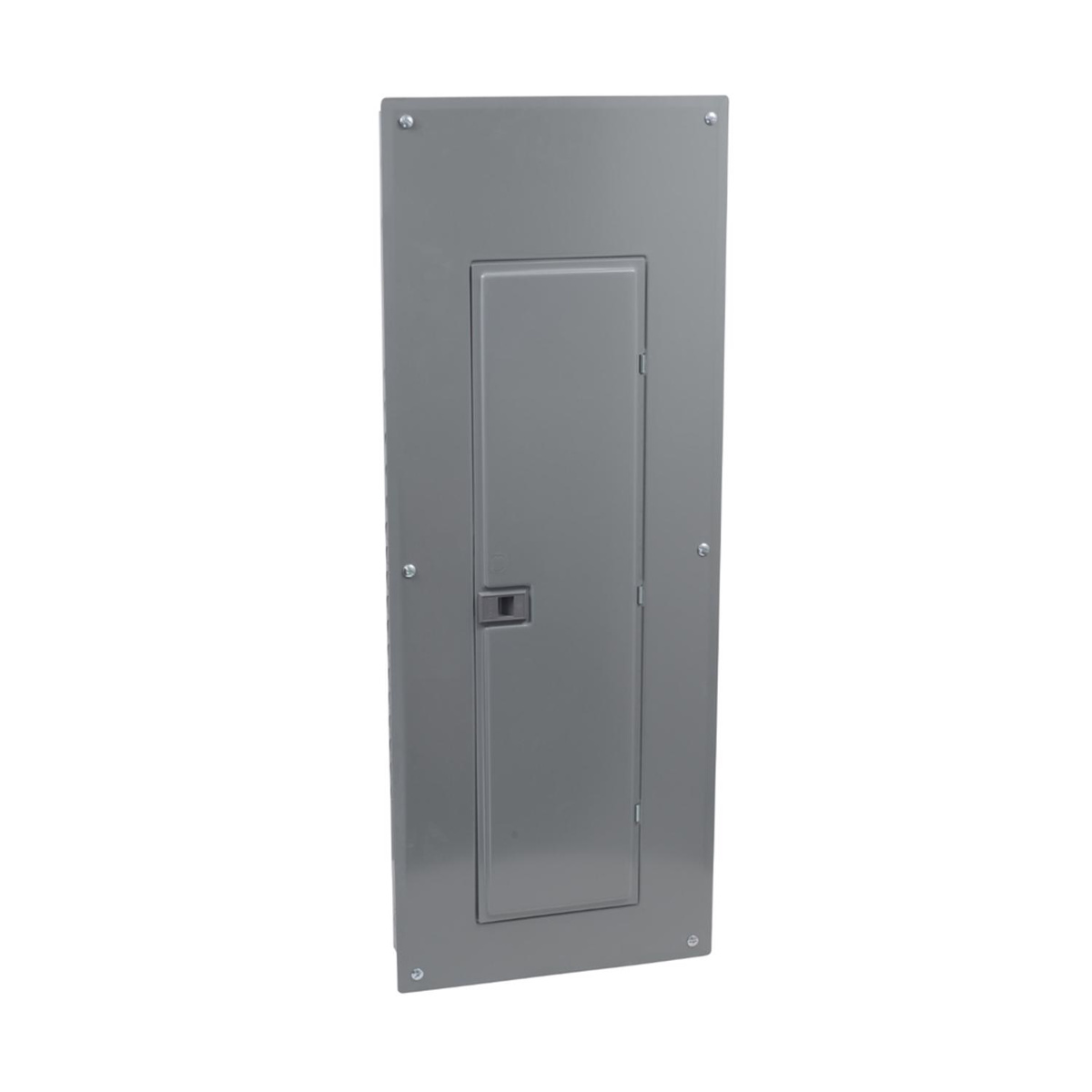

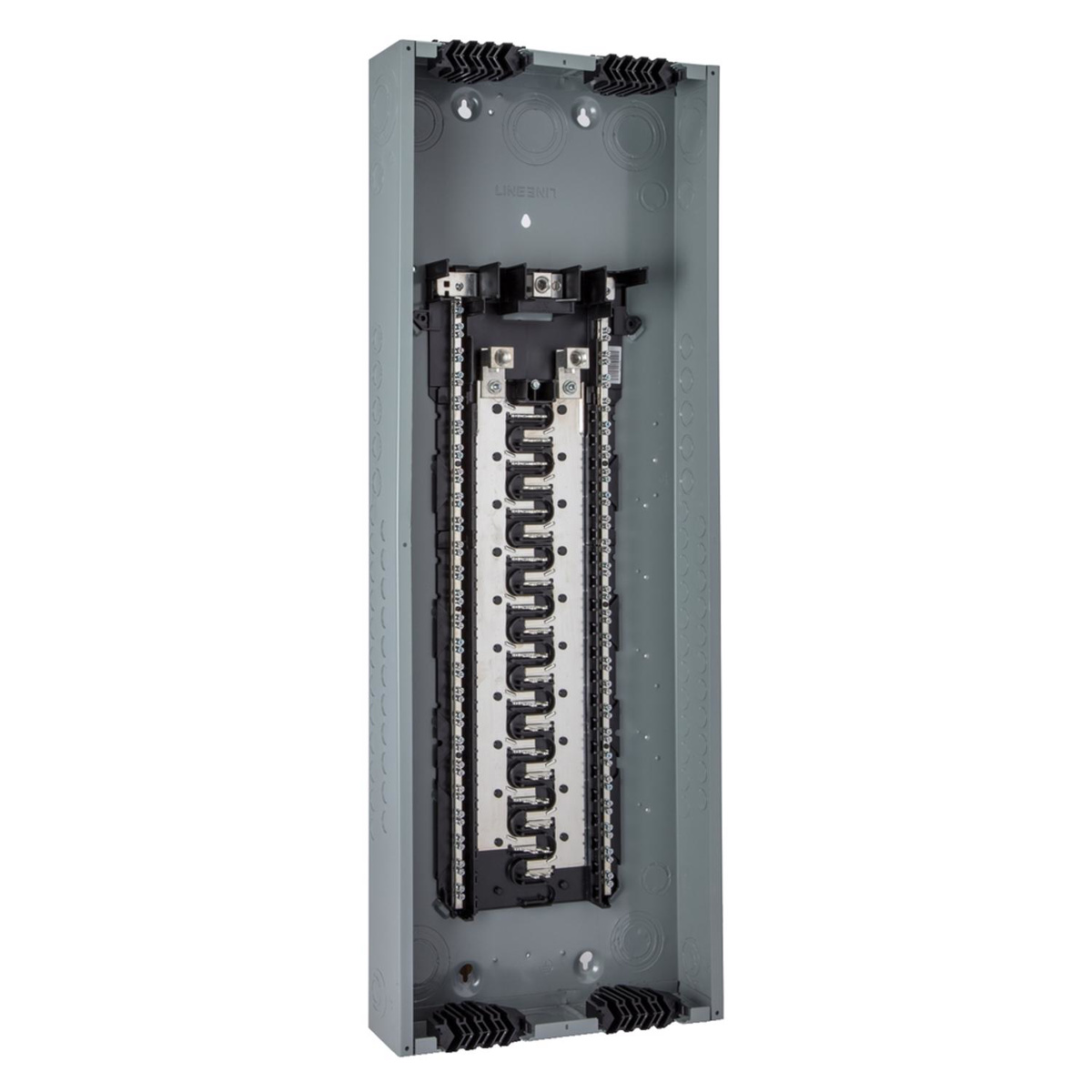

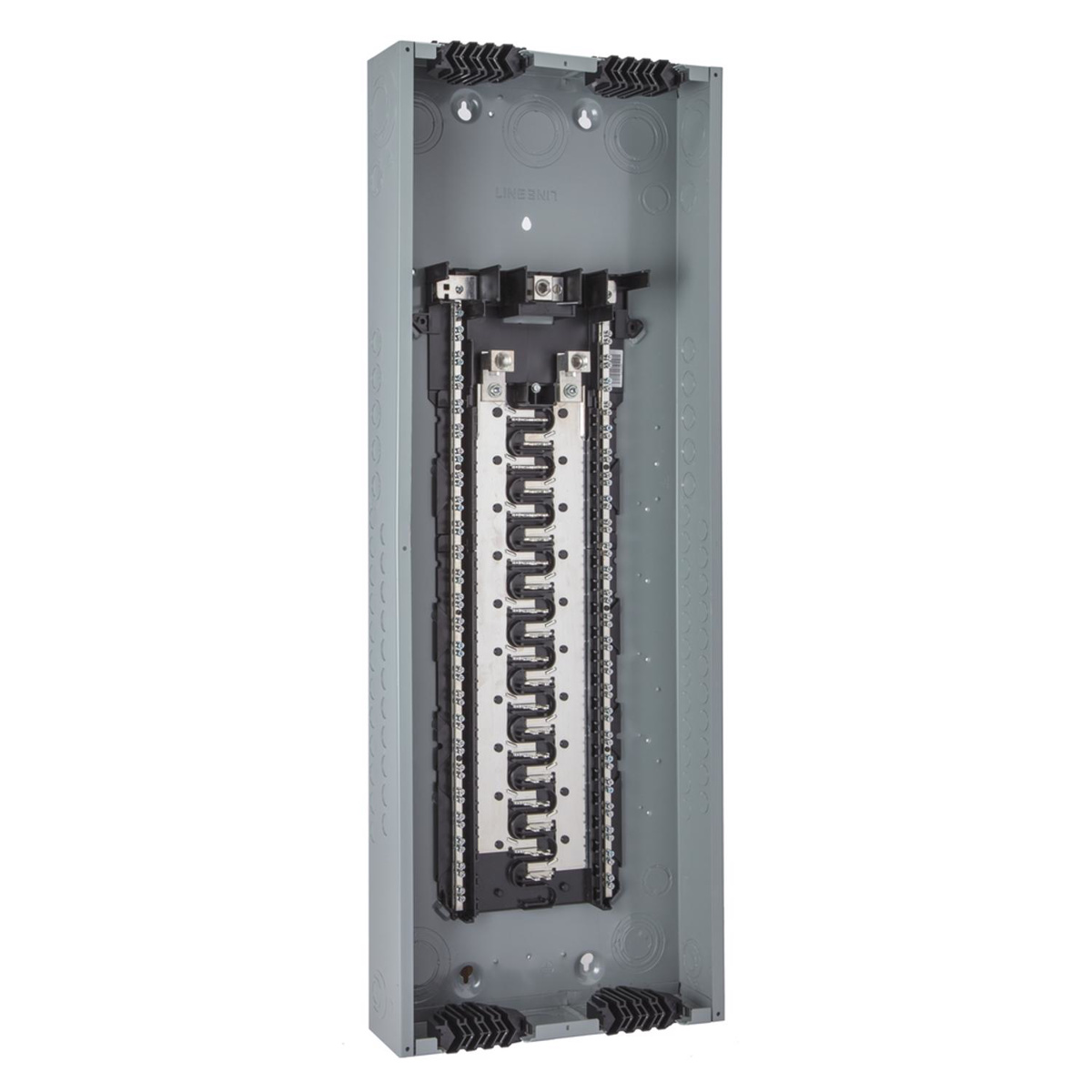

Square D Homeline™ HOM Series Plug-on Neutral Main Breaker/Convertible Loadcenters 200 A 120/240 VAC 40 Spaces

Mfg #: HOM4080M200PQC
BSE #: 3349064

Electrical contractors will appreciate not having to remove knockouts, install wire connectors and blindly pull wire into the load center versus the ability to slide wires from the front with the Qwik-Grip wire management system.

  • Qwik-Grip wire management system eliminates the need for most knock-outs and romex connectors, and feeds from the front making wire management easy to see
  • Qwik-Grip retaining clip snaps in place for secure wire retention
  • Qwik-Grip simplifies NM-B wire installation
  • For new construction, remodels or service upgrades
  • UL Listed
See More
Looking for prices?
Product can be ordered only in multiples of

Brand Square D
Series Homeline™
Amperage 200 A
Enclosure Type N1 Enclosure
Interrupting Rating 22 kAIC
Number of Spaces 40 Spaces
Number of Circuits 80 Circuits
Cover Type Combination
Bus Material Aluminum
Includes Qwik-Grip
Wire Size (1) 4 AWG to 250 kcmil
Voltage 120/240 VAC
Number of Phases 1 Phase
NEMA Rating NEMA 1
