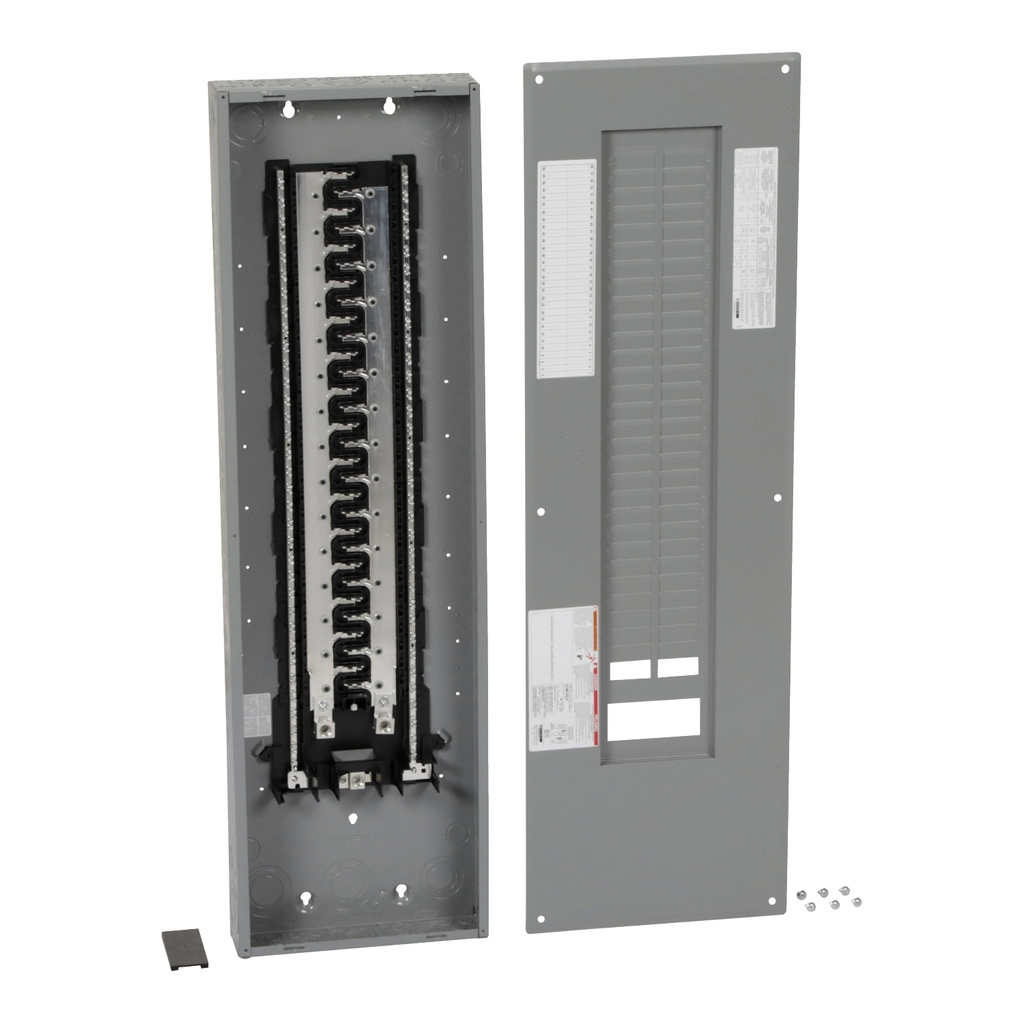

Square D Homeline™ N1 Main Lug Only Loadcenters 225 A 120/240 V 60
Image shown may be a representative image and may not reflect the exact product
Related Items
Select Options
| Brand | Square D |
| Phase | 1 phase |
| Material | tin plated aluminium busbar |
| [Ith] Conventional Free Air Thermal Current | 225 A |
| Enclosure Material | Welded Sheet Steel |
| Short-Circuit Current | 10 kA |
| Product Certifications | UL listed file E-6294 |
| Series | Homeline™ |
| Amperage | 225 A |
| NEMA Rating | NEMA 1 |
| Voltage | 120/240 V |
| Number of Phases | 1 phase |
| Box Number | 25 |
| Bus Material | Aluminum |
| Cover Type | combination flush/surface cover |
| Number of Spaces | 60 |
| Number of Circuits | 120 Circuit |
| Interrupting Rating | 10 kAIC |
| Certificate | Compliance |
|
| QO and Homeline Load Centers and Circuit Breaker Installation Instructions - S1B33894 (pdf) | Installation and Instruction Manuals |
|
| A Guide to Your Square D Electrical Distribution System - Brochure - 0102BR0201 (pdf) | Brochure |
|
| Square D Homeline Load Centers and Circuit Breakers Brochure - 1170BR1801 (pdf) | Brochure |
|
| Load Centers: Section 1 - Digest 179 (2024) - Load-Centers-CSEDs-Digest-Catalog-0100CT2401-SEC-01 (pdf) | Catalog |
|
| Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf) | Catalog |
|
Converting QO™ & Homeline Load Centers from Main Lug to Main Breaker | Schneider Electric Support
Tutorial for converting QO™ & Homeline Load Centers from main lug to main breaker with the QOM1-VH...
Installing HOMFP Branch Breaker Filler Plate in Homeline Load Centers | Schneider Electric Support
Tutorial for installing the plastic HOMFP branch breaker filler plates in all Homeline Load ...
Differentiating Square D™ QO™ & Homeline™ Load Centers | Schneider Electric Support
Overview comparing the similarities and differences in physical characteristics and features of...
