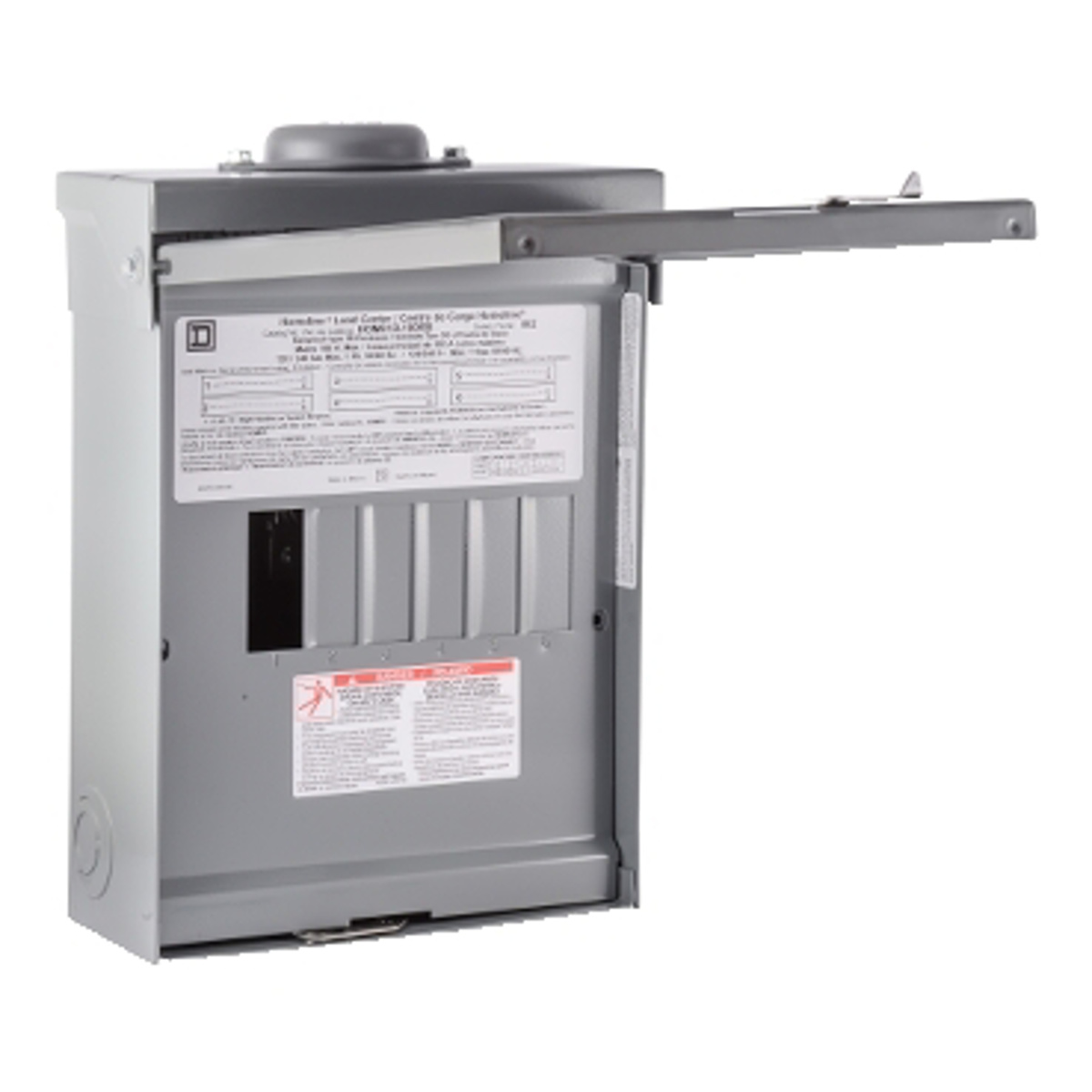

Square D Homeline™ N3R Main Lug Only Loadcenters 100 A 120/240 V 6

Mfg #: HOM612L100RB

BOR #: 258044

View all 3 in product family

Looking for prices?

Create an Account

Product can be ordered only in multiples of

Specifications

Brand	Square D
Series	Homeline™
Amperage	100 A
NEMA Rating	NEMA 3R
Circuit Breaker Type	HOM
Voltage	120/240 V
Number of Phases	1 phase
Includes	Cover
Wire Size	8 - 1 AWG
Box Number	2R
Bus Material	Aluminum
Cover Type	surface cover
Number of Spaces	6
Number of Circuits	12 Circuit
Interrupting Rating	10 kAIC

Related Documents

Certificate	Compliance
QO and Homeline Load Centers and Circuit Breaker Installation Instructions - S1B33894 (pdf)	Installation and Instruction Manuals
QO and Homeline Outdoor Load Centers - Installation Instructions - 40281-607-02 (pdf)	Installation and Instruction Manuals
Square D Homeline Load Centers and Circuit Breakers Brochure - 1170BR1801 (pdf)	Brochure
Load Centers: Section 1 - Digest 179 (2024) - Load-Centers-CSEDs-Digest-Catalog-0100CT2401-SEC-01 (pdf)	Catalog
QO and Homeline Outdoor Load Centers Installation Instructions - 40271-887-03 (pdf)	Installation and Instruction Manuals
Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf)	Catalog
A Guide to Your Square D Electrical Distribution System - Brochure - 0102BR0201 (pdf)	Brochure
