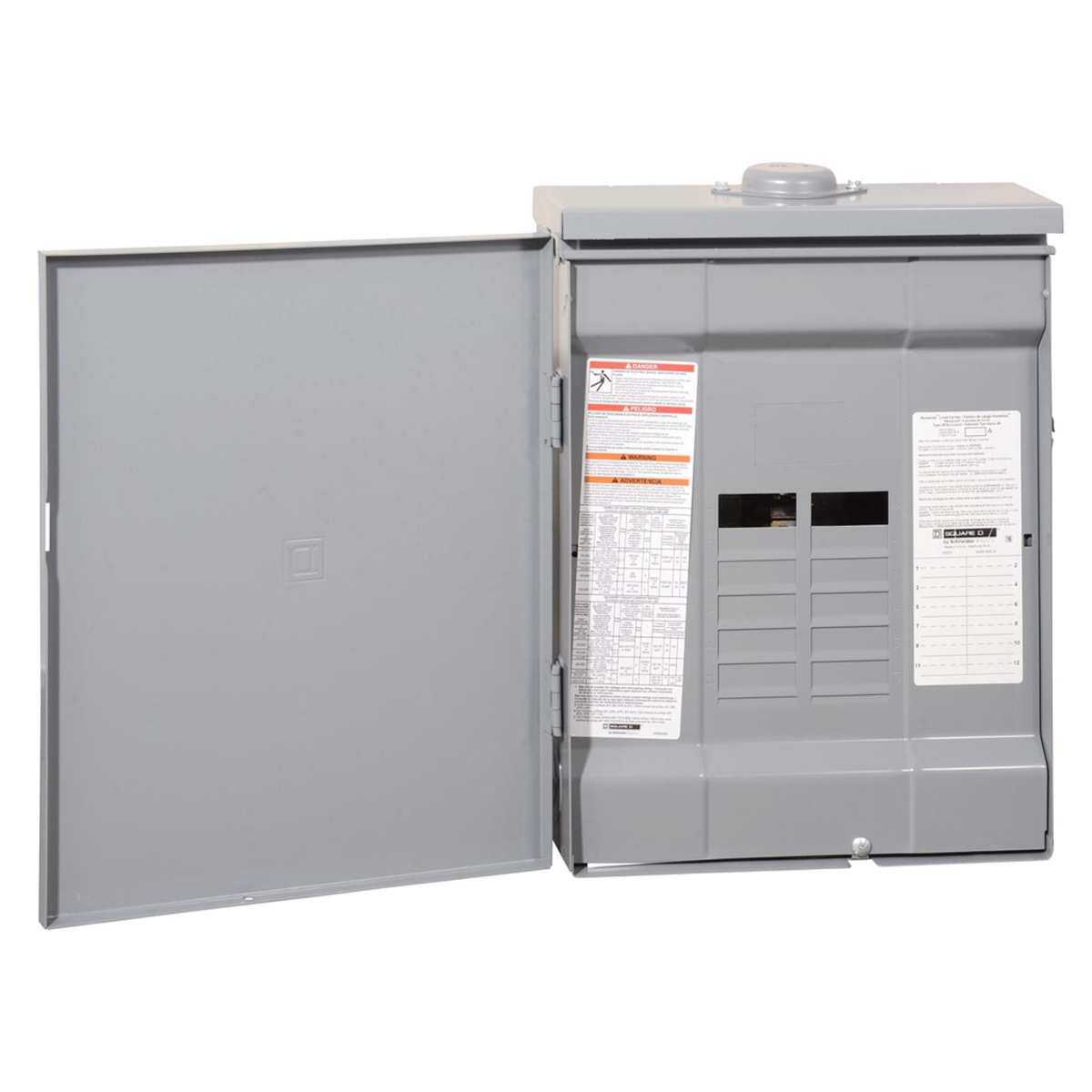

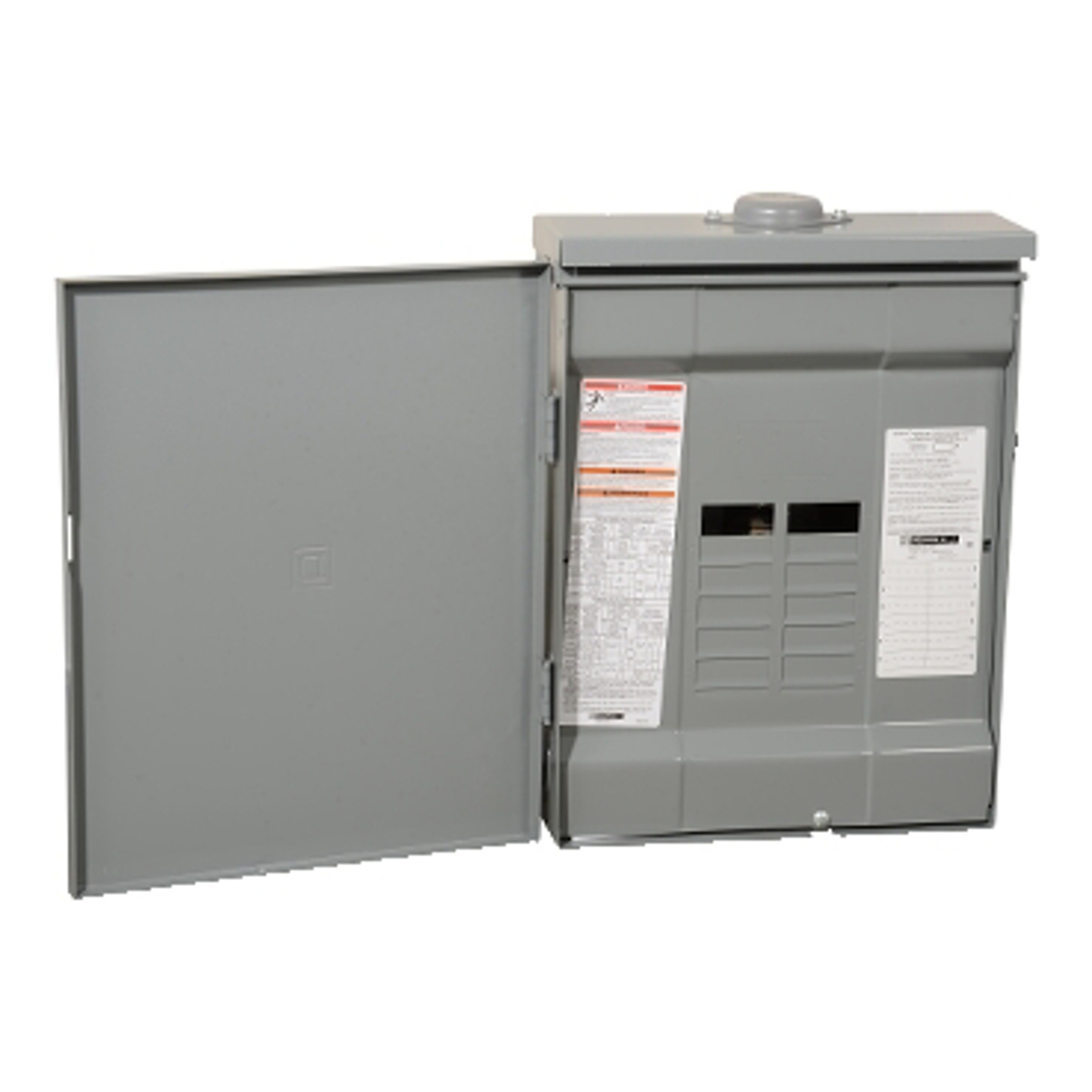

Square D Homeline™ N3R Main Lug Only Loadcenters 125 A 120/240 V 12

Mfg #: HOM1224L125PRB

BOR #: 3170723

View all 10 in product family

Looking for prices?

Create an Account

Homeline™ Main Lug Only Loadcenters

NEMA 3R
Top or bottom feed by rotating enclosure
Welded Sheet Steel Housing

Product can be ordered only in multiples of

Specifications

Brand	Square D
Series	Homeline™
Amperage	125 A
NEMA Rating	NEMA 3R
Circuit Breaker Type	HOM
Voltage	120/240 V
Number of Phases	1 phase
Includes	Cover
Wire Size	6 - 2/0 AWG
Box Number	3R
Bus Material	Aluminum
Cover Type	surface cover
Number of Spaces	12
Number of Circuits	24 Circuit
Interrupting Rating	10 kAIC
