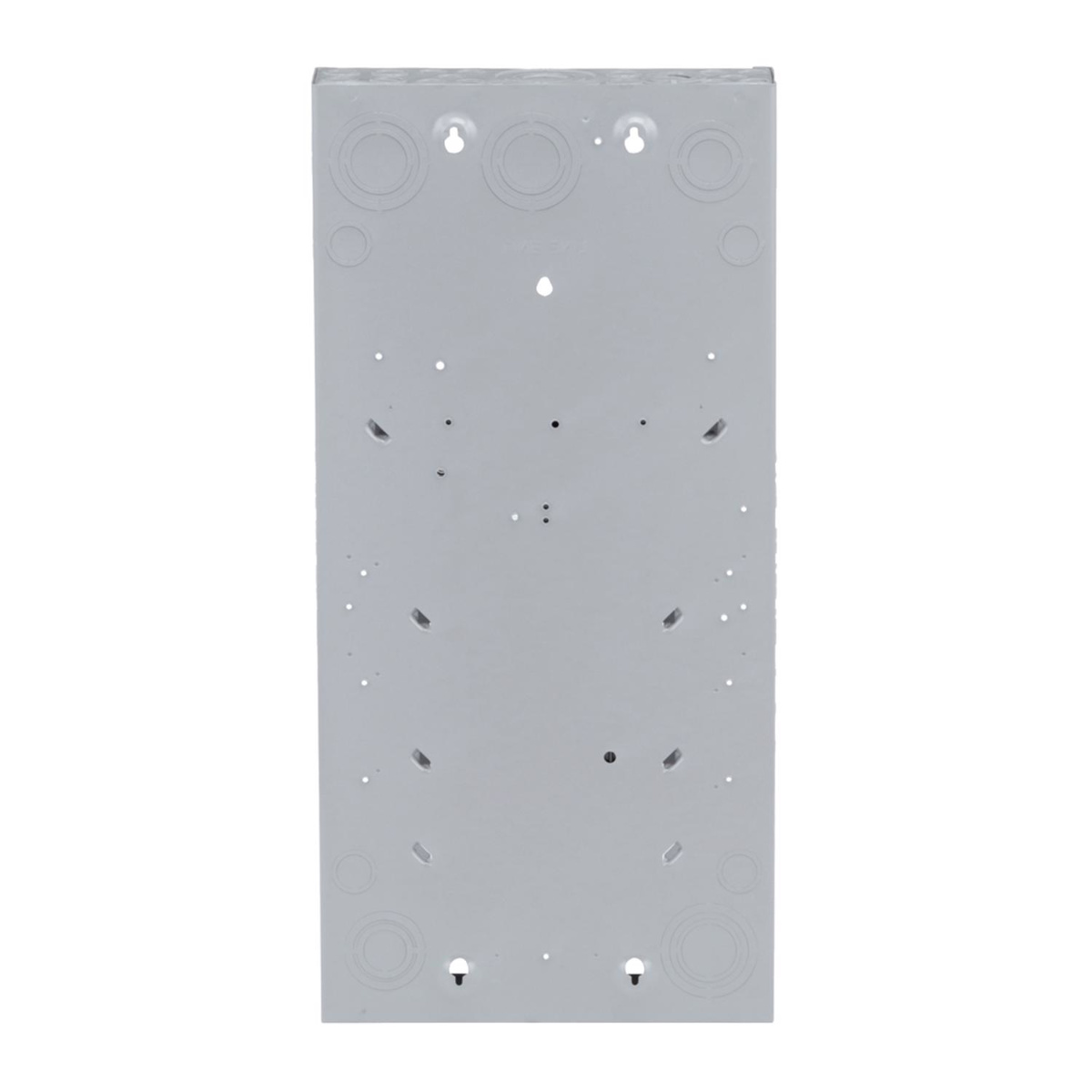

Square D QO™ N1 Main Lug Only Loadcenters 200 A 120/240 VAC, 208Y/120 VAC 18, 18
Image shown may be a representative image and may not reflect the exact product
Related Items
Select Options
| Depth | 14-1/4 in |
| Brand | Square D |
| Series | QO™ |
| Amperage | 200 A |
| NEMA Rating | NEMA 1 |
| Circuit Breaker Type | QO |
| Height | 29-3/4 in |
| Voltage | 120/240 VAC, 208Y/120 VAC |
| Number of Phases | 3 phase 4 wires ,, 3 phase 3 wires |
| Includes | Order Cover Separately |
| Wire Size | 6 AWG - 250 kcmil |
| Box Number | 9 |
| Bus Material | Copper |
| Cover - Catalog Number (Surface) | QOC30US |
| Cover Type | order separately |
| Cover - Catalog Number (Flush) | QOC30UF |
| Number of Spaces | 18, 18 |
| Number of Circuits | 18 Circuit |
| Interrupting Rating | 10 kAIC |
| QO and Homeline Load Centers and Circuit Breaker Installation Instructions - S1B33894 (pdf) | Installation and Instruction Manuals |
|
| Square D Specification Sheet | Specification Sheet |
|
| Load Centers: Section 1 - Digest 179 (2024) - Load-Centers-CSEDs-Digest-Catalog-0100CT2401-SEC-01 (pdf) | Catalog |
|
| Certificate | Compliance |
|
| Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf) | Catalog |
|
| Brochure 2 | Brochure |
|
| Brochure 1 | Brochure |
|
| QO Load Centers and Branch Circuit Breakers Installation Instructions - 40269-469-02 (pdf) | Installation and Instruction Manuals |
|
| Brochure 3 | Brochure |
|
