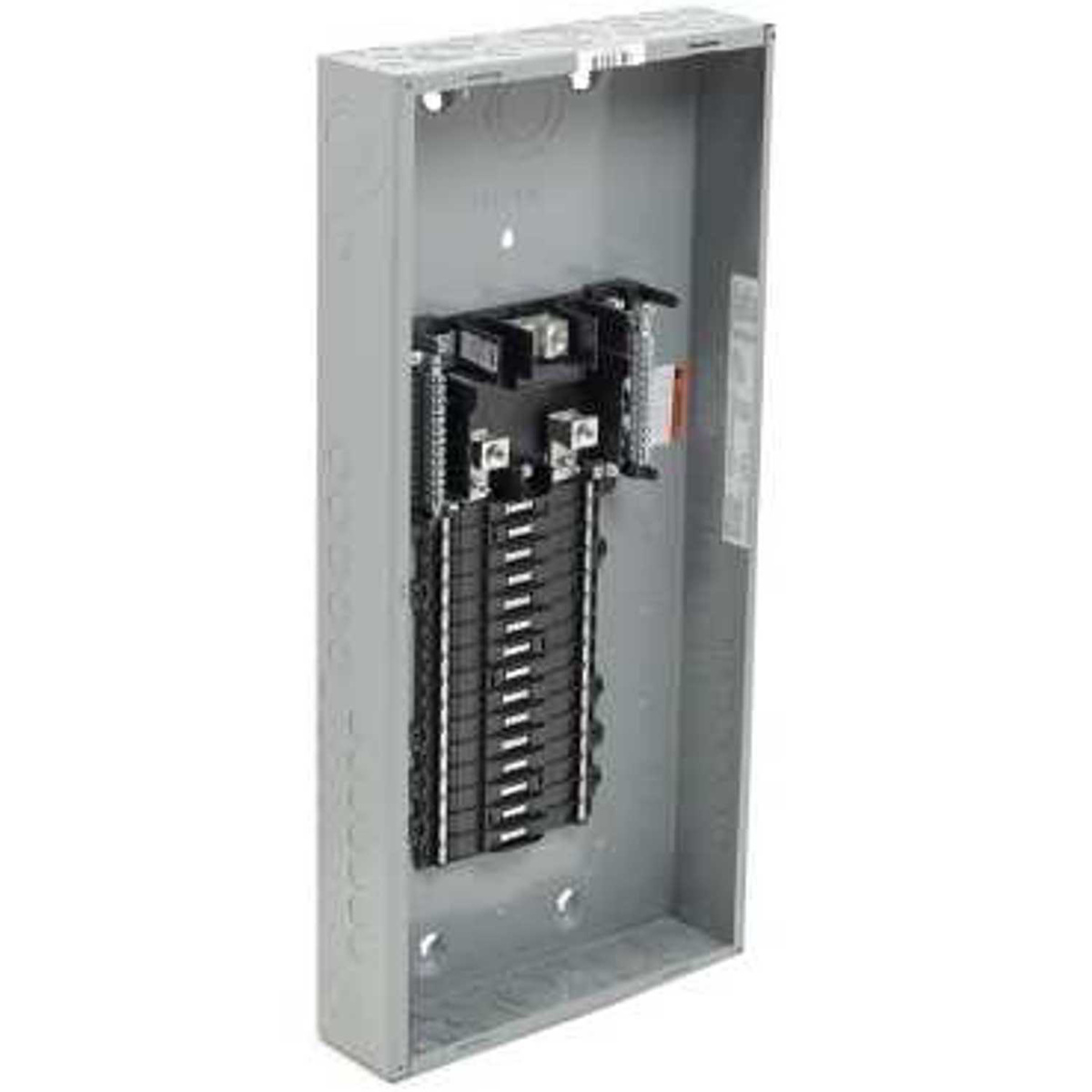

Square D QO™ Series Plug-on Neutral Main Lug Only/Convertible Loadcenters 200 A 120/240 V AC 30 Spaces
Comprehensive selection: single and three phase, 30 to 400 amps, 2 to 42 circuits, indoor and outdoor versions, separate flush or surface mount covers, full complement of accessories.
- Breaker format: 3/4" circuit breaker width
- QO® Circuit Breaker Loadcenters from Square D®, are Underwriters Laboratories (UL) Listed Panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people.
- Qwik-Grip system retaining clip snaps in place for secure wire retention
- Qwik-Grip wire management system eliminates the need for most knock-outs and connectors, and feeds from the front making wire management easy to see
- Qwik-Grip accommodates more wires than knockout end-walls
- Breaker format: 3/4 in circuit breaker width
- Single captive screw interior mounting on indoor panels to ease removal
- New side hinge doors on outdoor convertible main panels
- Outdoor panel covers are lockable with padlock
- Plug-on neutral circuit breaker
- Straight-in wiring to help minimize service cable installation
- Tin plated aluminum bus construction on main lug or main circuit breaker panels
- Top or bottom feed by rotating enclosure
- Factory installed main lugs
- UL listed
|Enclosure Type||N1 Enclosure|
|Number of Spaces||30 Spaces|
|Number of Circuits||30 Circuits|
|Cover - Catalog Number (Flush)||QOC30UF|
|Cover - Catalog Number (Surface)||QOC30US|
|Wire Size||(1) 6 AWG to 250 kcmil|
|Voltage||120/240 V AC|
|Number of Phases||1 Phase|
|NEMA Rating||NEMA 1|
