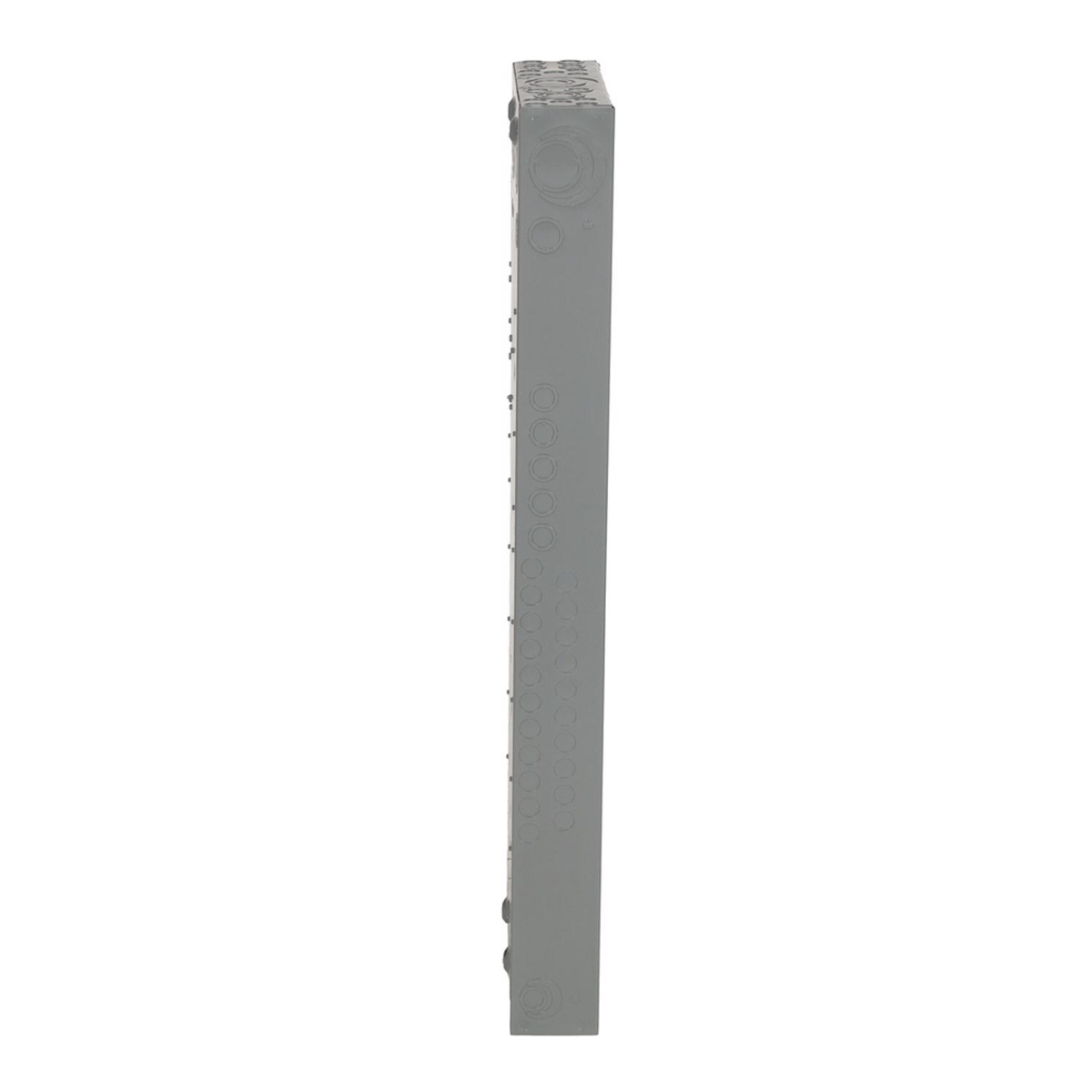

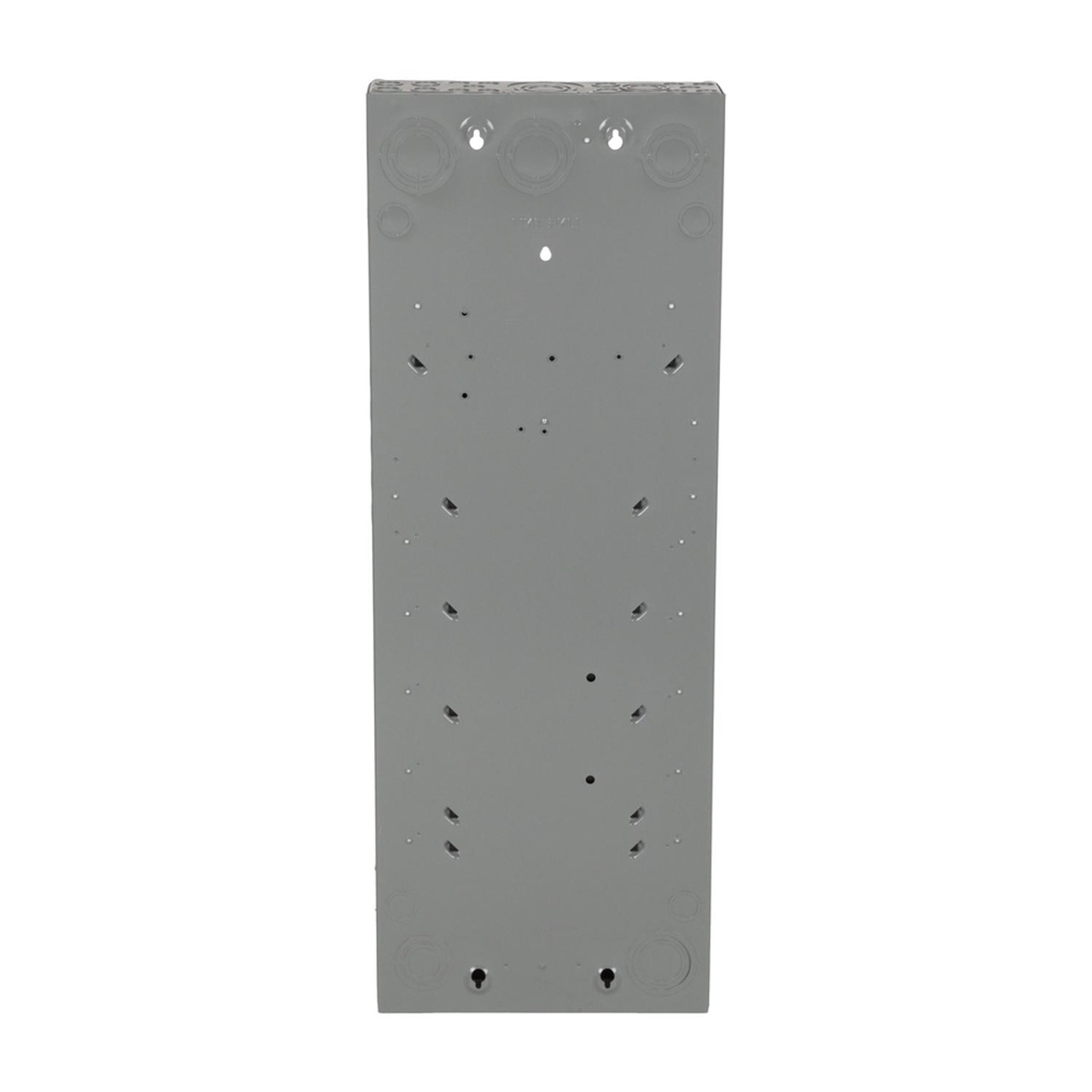

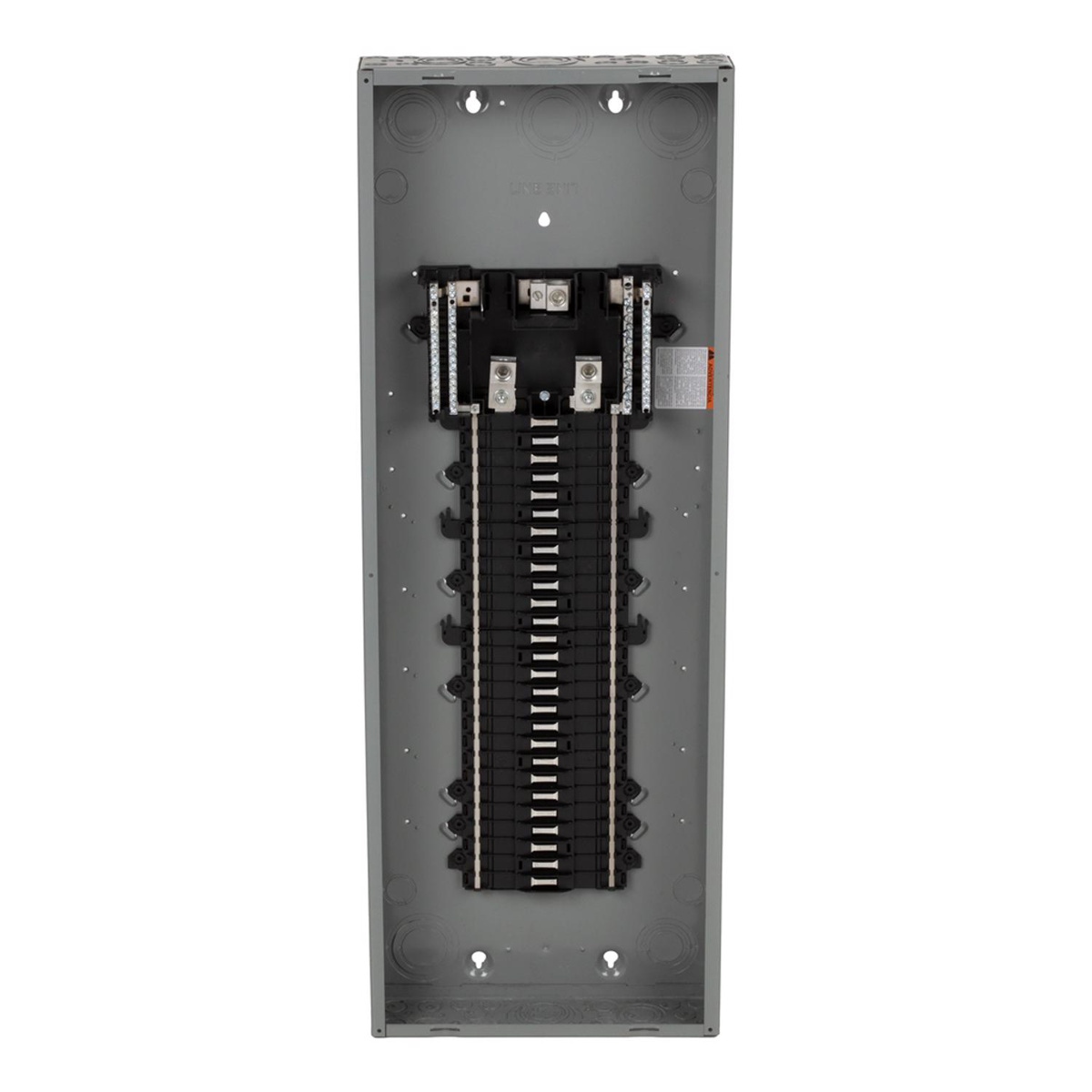

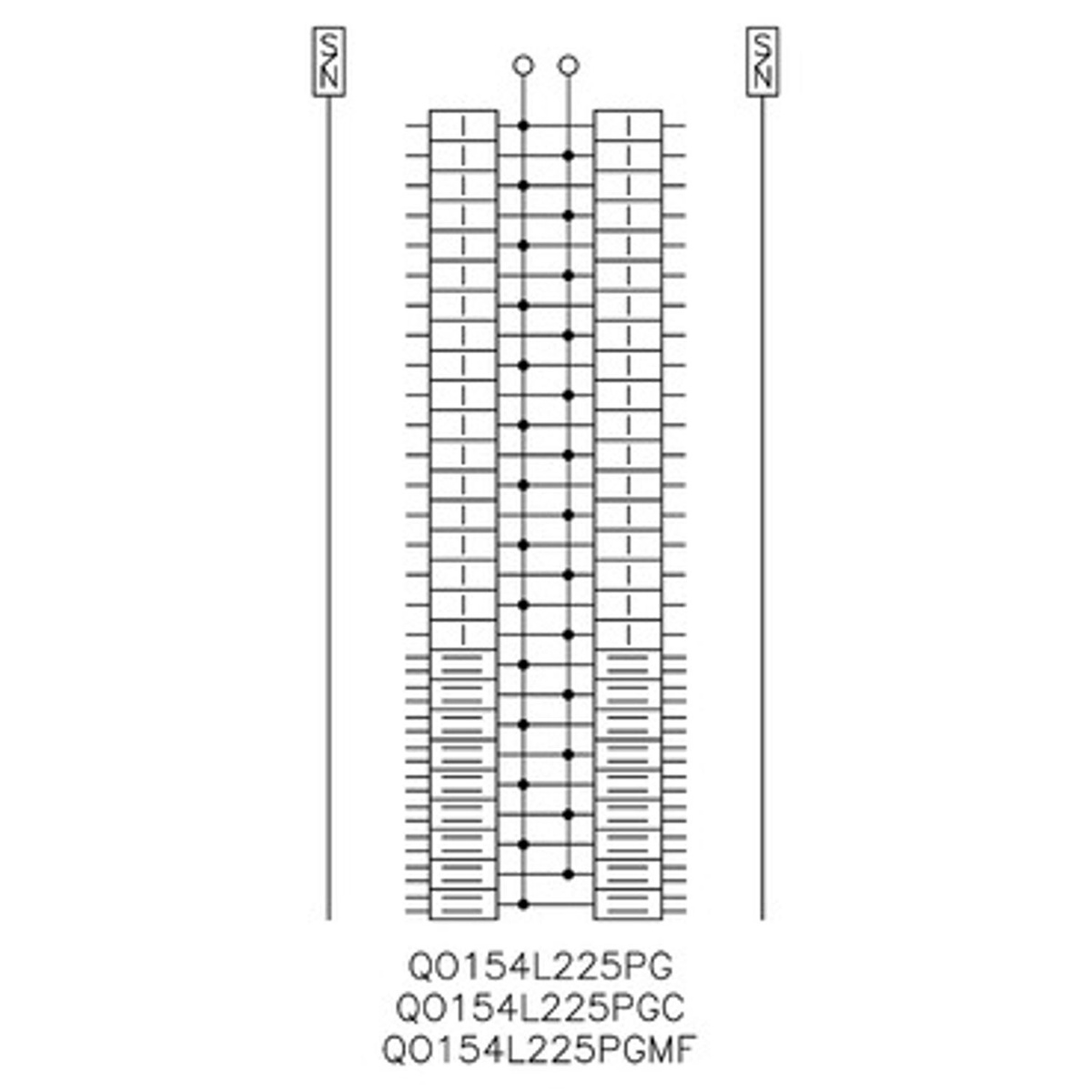

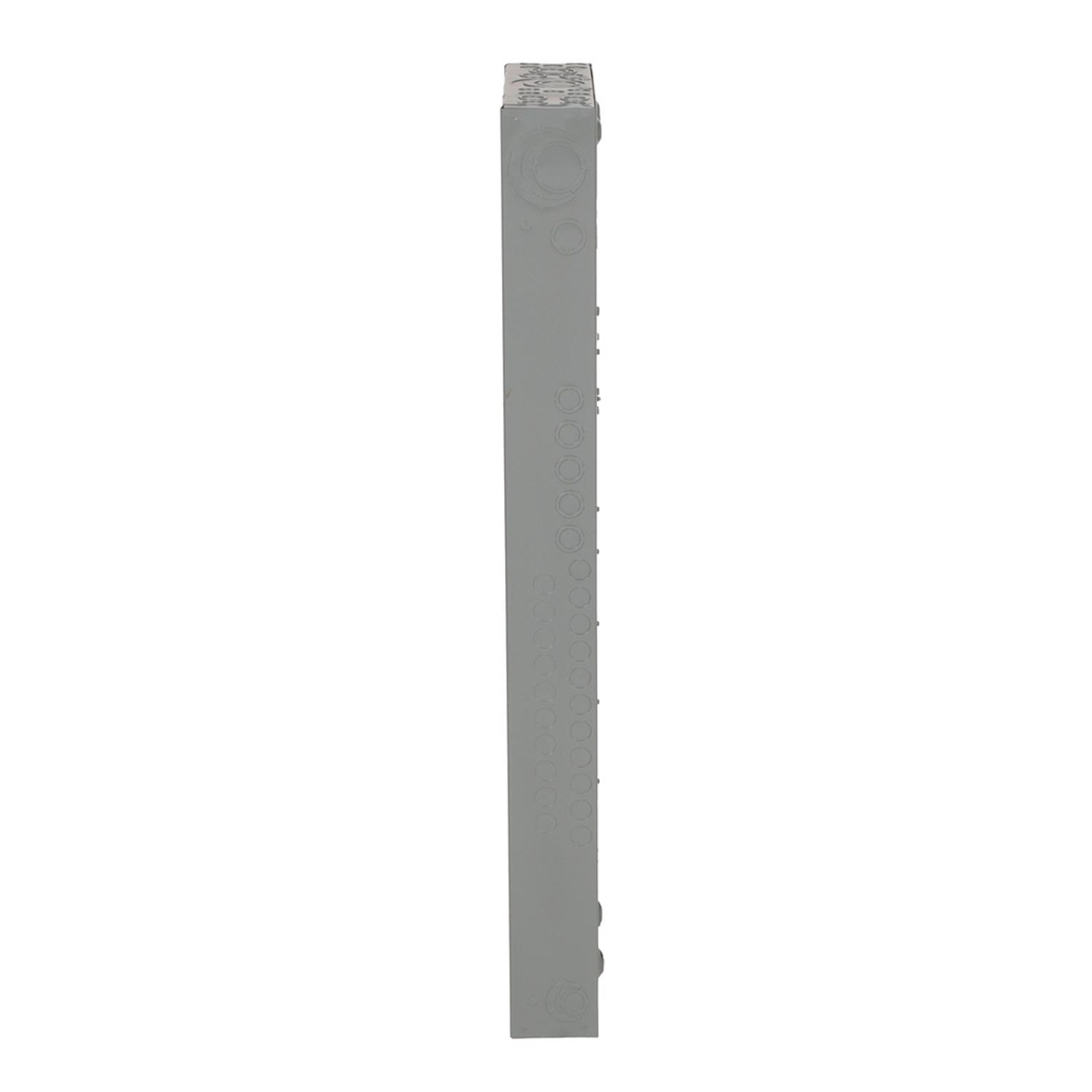

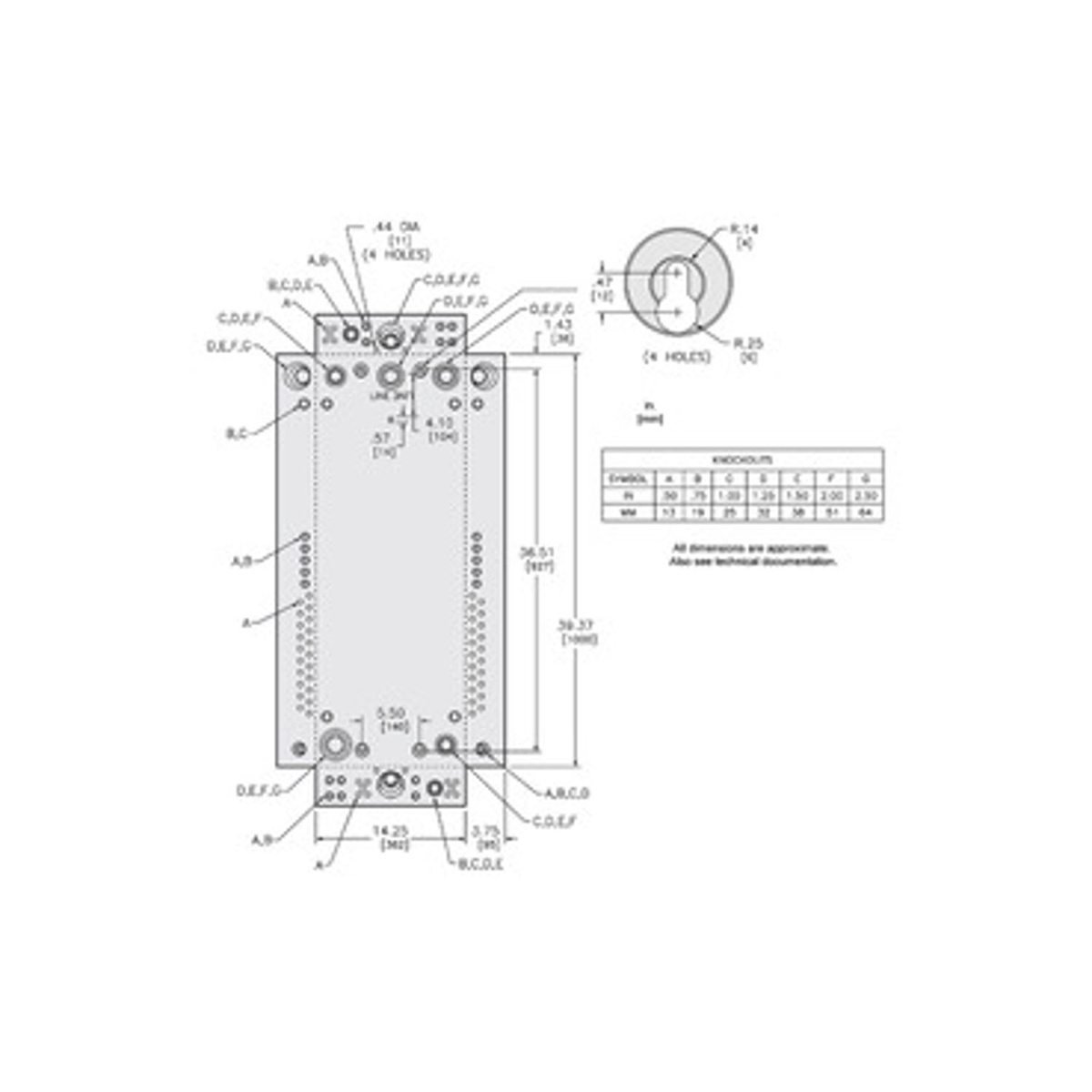

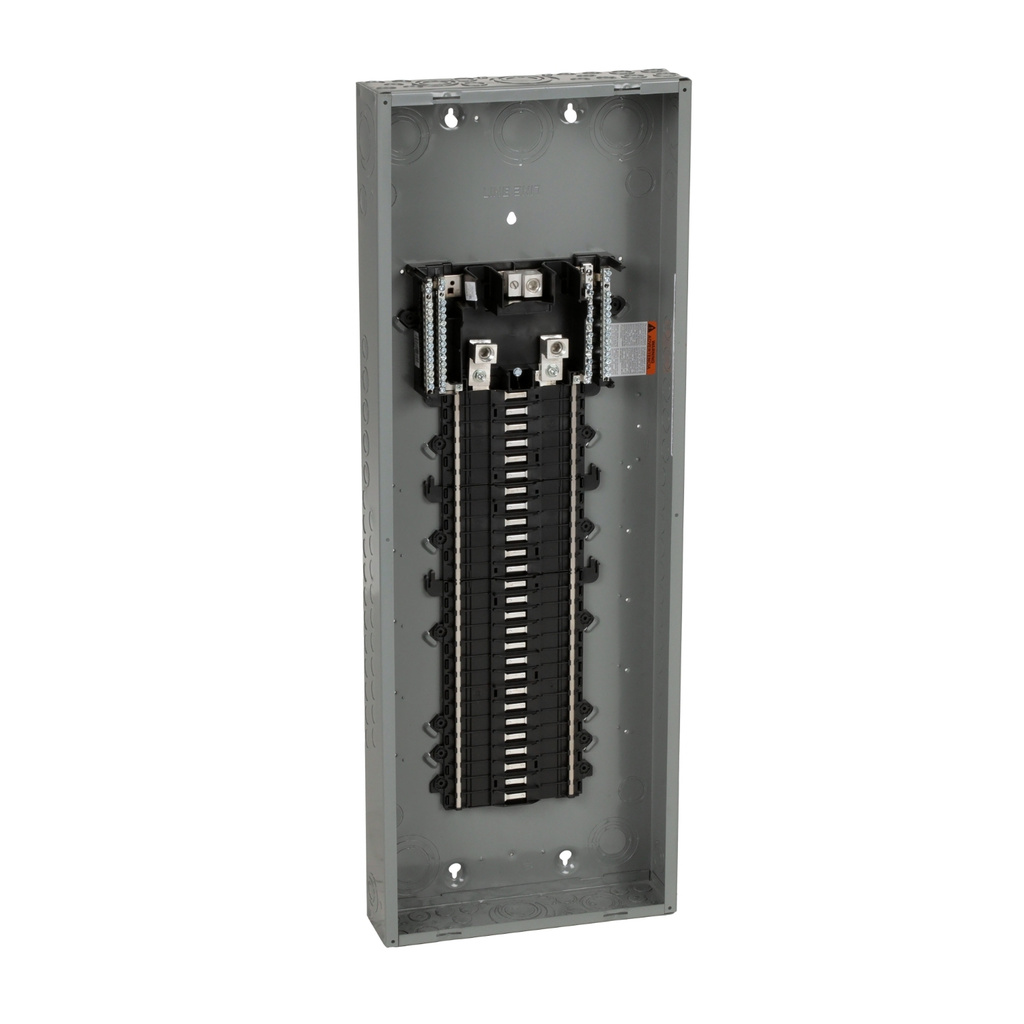

Square D QO™ Series Plug-on Neutral Main Lug Only/Convertible Loadcenters 225 A 240 V AC 54 Spaces

Mfg #: QO154L225PG
BSE #: 2919899

Comprehensive selection: single and three phase, 30 to 400 amps, 2 to 42 circuits, indoor and outdoor versions, separate flush or surface mount covers, full complement of accessories.

  • Breaker format: 3/4" circuit breaker width
  • QO® Circuit Breaker Loadcenters from Square D®, are Underwriters Laboratories (UL) Listed Panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people.
  • Qwik-Grip system retaining clip snaps in place for secure wire retention
  • Qwik-Grip wire management system eliminates the need for most knock-outs and connectors, and feeds from the front making wire management easy to see
  • Qwik-Grip accommodates more wires than knockout end-walls
  • Breaker format: 3/4 in circuit breaker width
  • Single captive screw interior mounting on indoor panels to ease removal
  • New side hinge doors on outdoor convertible main panels
  • Outdoor panel covers are lockable with padlock
  • Plug-on neutral circuit breaker
  • Straight-in wiring to help minimize service cable installation
  • Tin plated aluminum bus construction on main lug or main circuit breaker panels
  • Top or bottom feed by rotating enclosure
  • Factory installed main lugs
  • UL listed
See More
Looking for prices?
Product can be ordered only in multiples of


Brand Square D
Series QO™
Amperage 225 A
Enclosure Type N1 Enclosure
Number of Spaces 54 Spaces
Number of Circuits 54 Circuits
Cover - Catalog Number (Flush) QOC54UF
Cover - Catalog Number (Surface) Use flush
Bus Material Copper
Includes Ground bar
Wire Size (1) 6 AWG to 300 kcmil
Voltage 120/240 VAC
Number of Phases 1 Phase
NEMA Rating NEMA 1
