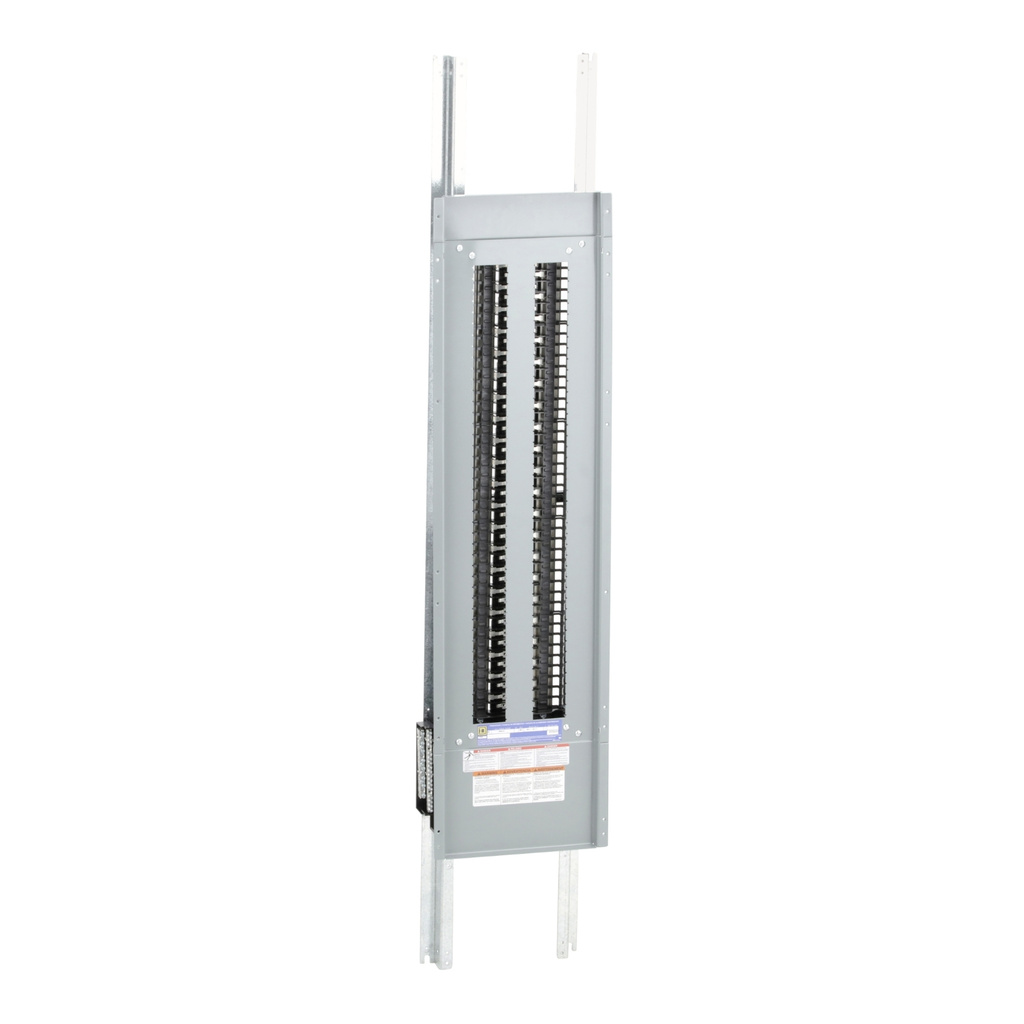

Square D NQ Merchandised Panelboard Interiors 1 phase 400 A 240 VAC, 48 VDC 84
Merchandised Series Panelboard Interiors
- NQ Series
Related Items
Select Options
| Brand | Square D |
| Height | 63 in |
| Width | 10.44 in |
| Circuit Breaker Type | QOB ,, QOB-VH ,, QHB |
| Number of Spaces | 84 |
| Bus Material | Copper |
| Amperage | 400 A |
| Material | Copper |
| Series | NQ |
| Voltage | 240 VAC, 48 VDC |
| Number of Phases | 1 phase |
| Brochure 2 | Brochure |
|
| Brochure 1 | Brochure |
|
| Square D NQ Circuit Breaker Panelboards Catalog - 1640CT0801 (pdf) | Catalog |
|
| Certificate 2 | Compliance |
|
| Panelboards: Section 9 - Digest 179 (2024) - Panelboards-Lighting-Digest-Catalog-0100CT2401-SEC-09 (pdf) | Catalog |
|
| Brochure 3 | Brochure |
|
| NF/NQ Panelboard OSHPD Label Placement Drawing Installation Instructions - 80043-793-01 (pdf) | Installation and Instruction Manuals |
|
| NQ/NQM Panelboards and QONQ Load Centers User Guide - Installation Instructions (80043-712) - 80043-712-06_Instruction+Bulletin_NQ-NQM+Panelboards+and+QONQ+Load+Centers (pdf) | Installation and Instruction Manuals |
|
| Certificate 1 | Compliance |
|
