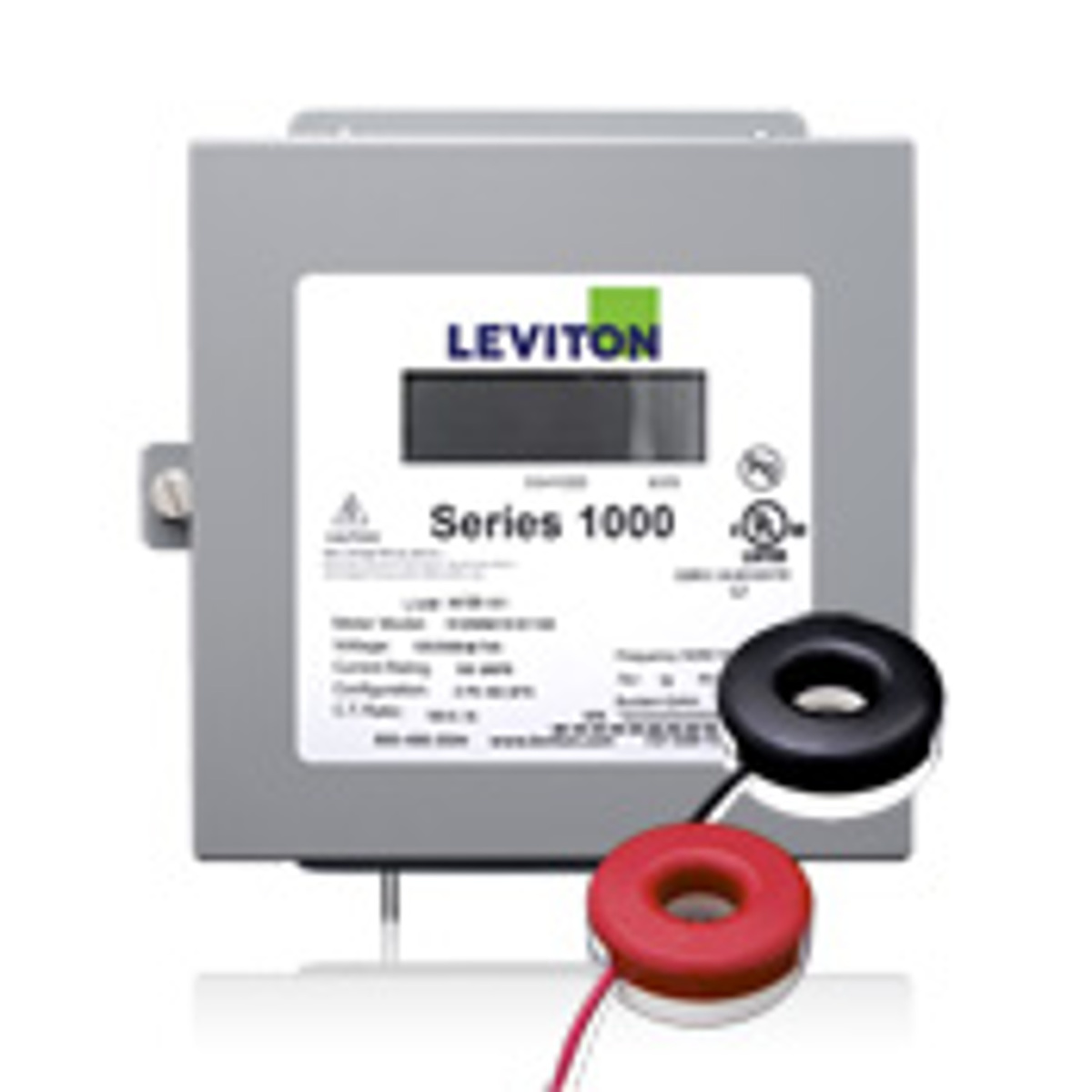

Leviton 1K240 VerifEye™ 1000 Series Indoor Submeter Electric Meter Kits
Series 1000 Single Phase Meter Kits for Outdoor Use
- Pulse output
- Large LCD display
- Kit includes submeter and required Current Transformers (CTs)
- Revenue grade accuracy: 0.5% accuracy class
- The Leviton VerifEye™ Series 1000 line of revenue-grade meters meets all measurement and verification-based opportunities including load management and LEED rating achievement.
- Designed to provide a simple and effective process for accurately capturing measurements of power consumption
- Solid core CTs are ideal for new construction, when power is not live and wires can easily be threaded through the core.
- Split core CTs can be installed at any time without having to disconnect wire terminations, making them the optimal choice for retrofitting an existing structure.
| Mounting Type | Surface |
| Brand | Leviton |
| Pole/Wire | 1P3W |
| Enclosure Type | N1 Enclosure |
| Amperage | 100 A |
| Number of Phases | 1 Phase |
| Includes | 2 Solid CTs |
| Voltage | 120/208 V, 120/240 V |
| VerifEye_Submetering_Series_1000_and_Series_2000_Installation_Instructions_PK-93856-10-00-0C-W_Submeter_Submeters.pdf | Installation and Instruction Manuals |
|
| VerifEye-Submeter-Brochure_lc_G-8505O_en_leviton.pdf | Brochure |
|
| Leviton Specification Sheet | Specification Sheet |
|
Submetering How To Step 1 - Evaluate Facility
This video will take you through the steps for evaluating a facility to meet your company's Master...
Verifeye Building Manager Online 4.0 Energy Management Software – Advanced Reporting Module
Take a quick tour of the features of our latest Building Manager Online Advanced Reporting software...
VerifEye Submetering Solutions — Current Transformer (CT) Installation and Orientation
Current Transformers (CTs) have very definitive orientations which must be observed when ...
Submetering How To Step 2 - Energy Information Plan
In this video, we will show you how to create a metering and data acquisition plan for your ...
BMO Tenant Billing Module Overview
VerifEye Building Manager Online (BMO) web-based software provides the Measurement & Verification...
BMO Basic Module Overview
VerifEye Building Manager Online (BMO) web-based software provides the Measurement & Verification...
CT Ratings
Every CT has a primary current and secondary output. The particular rating for the primary current...
Submetering How To Step 3 - System Installation
In this video, we will explain the process for meters and data acquisition products and potential...
