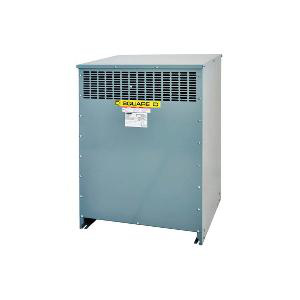

Square D Ventilated Three Phase Dry-type Transformers 480 Delta VAC - 208Y/120 VAC 112.5 kVA N1 Enclosure (2) 2.5% FCAN, (4) 2.5% BNFC
Mfg #:
EX112T3H
BOR #:
3290922
| Brand | Square D |
| Type | Dry Type |
| Secondary Voltage | 208Y/120 VAC |
| Number of Phases | 3 Phase |
| Width | 31.32 in |
| Primary Voltage | 480 Delta VAC |
| Voltage | 480 Delta VAC - 208Y/120 VAC |
| Mounting Type | Floor |
| Depth | 24 in |
| Height | 46 in |
| Insulation Temperature | 220 deg C |
| Number of Taps | (2) 2.5% FCAN, (4) 2.5% BNFC |
| Winding | Aluminum |
| Enclosure Type | N1 Enclosure |
| KVA Rating | 112.5 kVA |
| Series | EX |
| Transformer Style | Ventilated |
| NEMA Rating | NEMA 1 |
| Low Voltage Transformers 2016 Efficiency Levels, Certificate, UL - UL_Certification_XQNX2.E6868 (pdf) | Compliance |
|
| Dry-Type Transformers (1000 V and Below) Installation and User Guide - 43006-850-01 (pdf) | Installation and Instruction Manuals |
|
| Low Voltage Transformers 2016 Efficiency Levels, Certificate, UL - UL_Certification_XQNX8.E6868_Canada (pdf) | Compliance |
|
| Low Voltage Transformers 2016 Efficiency Levels, Certificate, UL - UL_Certification_XQNX7.E6868_Canada (pdf) | Compliance |
|
| Square D EX Low Voltage Distribution Transformers Catalog - 7400CT1501 (pdf) | Catalog |
|
| Low Voltage Transformers 2016 Efficiency Levels, Certificate, UL - UL_Certification_XQNX.E6868 (pdf) | Compliance |
|
