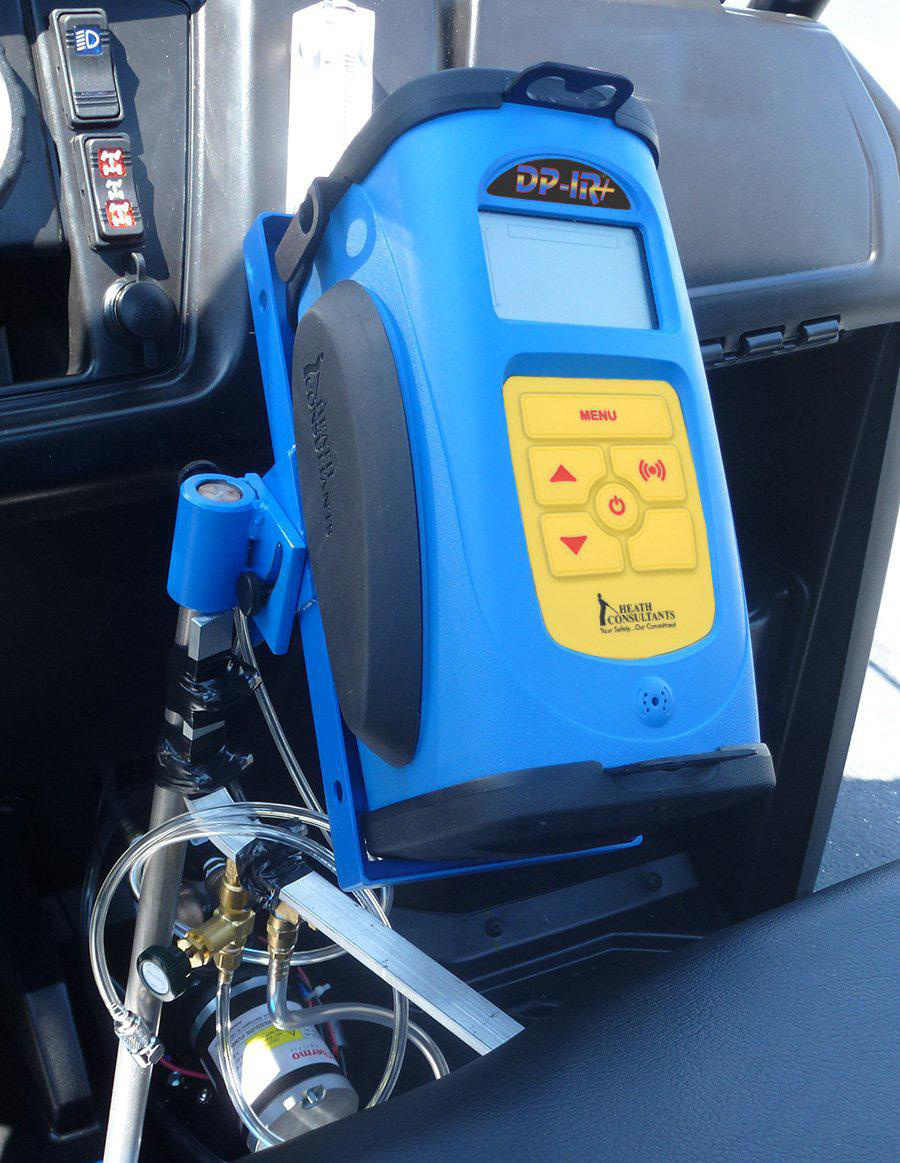

Heath Consultants 102 DP-IR+™ Detecto Pak-Infrared+ Leak Detector Kits Rechargeable Battery LCD

The DP-IR+ is the latest generation of leak survey instruments from Heath that can improve the productivity and safety of a walking/ mobile survey because of high sensitivity and fast response.

• It is an extremely sensitive, advanced leak detector capable of detecting methane without false alarming on other gases.
• The DP-IR+ operates under a variety of environmental conditions including cold or hot weather.
• Its rugged design will stand up to normal field use and operating conditions.
• The new DP-IR+ Application “App” provides an easy way for users to connect to Heath DP-IR+ devices via Bluetooth Low Energy (BLE) and capture survey data.
• Detection Method: Infrared Controlled Interference, Polarization Spectrometer
• Measurement Range: 0 to 10,000 PPM, 1 to 100% Gas
• Sensitivity: 1 PPM
• Resolution: 0-1000 PPM: 1 PPM 1000-10,000 PPM: 5 PPM 1-100%Gas: 0.1%
• Accuracy: Greater of ±0.5% or ±10% of reading (normal temperature and pressure, % gas on manual mode)
• Sample Flow Rate: 2.0 LPM (with Survey Probe attached)
• Connectivity: Bluetooth 5 Low Energy (BLE) (compatible with iOS, Android and Windows devices)
• Digital Methane Detection (DMD) Alarm Mode: Audible tone when detection threshold exceeded. Adjustable Alarm Level from 1 to 9,000 PPM
• Tick Alarm Mode: Continuous audio tone relative to concentration
• System Fault Warning: Audible tone and indication on the display
• Display: Large easy to read backlit LCD (0.75” Numeric)
• Operating Temperature: 0 to + 122 F (-17 to 50 C) (nominal battery voltage)
