Hubbell Power Cutout/Arrester Combinations 27 kV 100 A 125 kV

Mfg #: CP71EN211PB
BOR #: 1984569
Looking for prices?

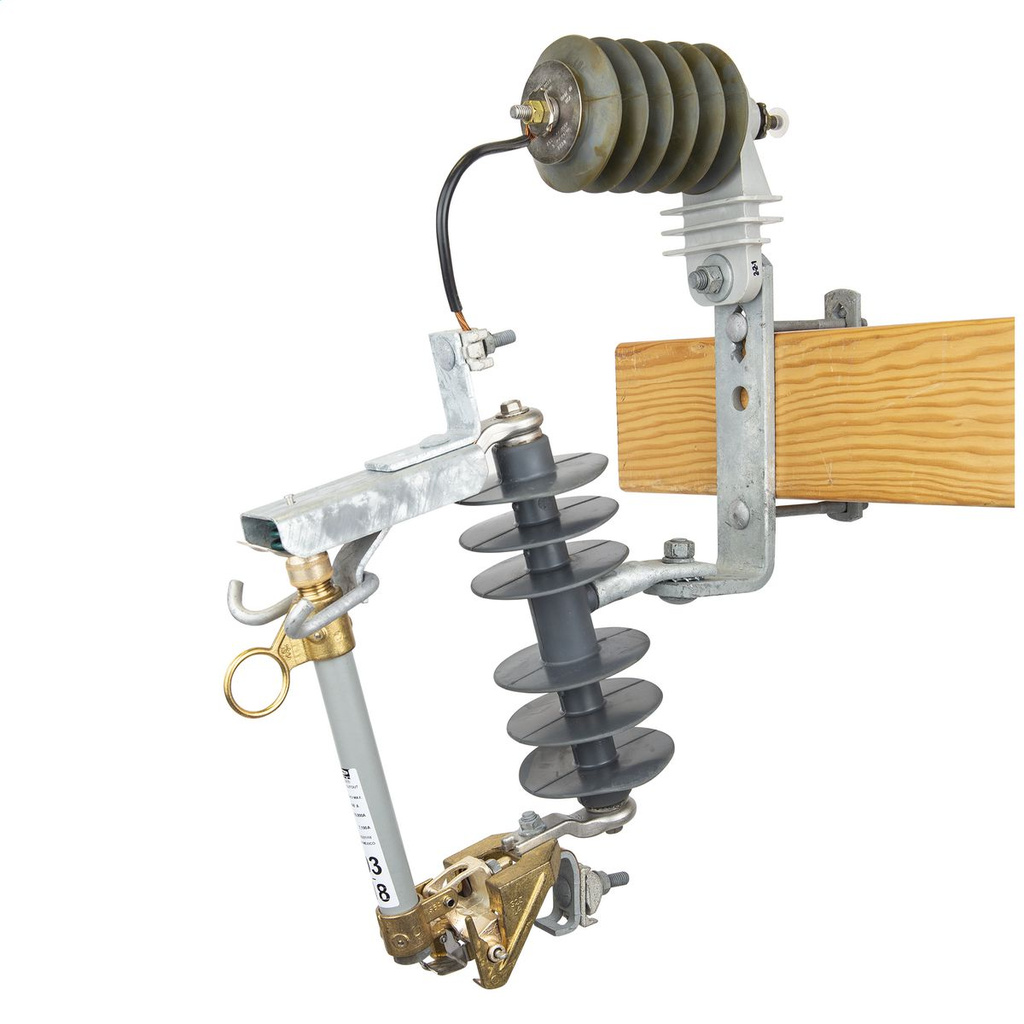

Hubbell Power’s Chance Type C Standard cutout / arrester combinations pair a cutout together on a bracket with an Ohio Brass® MOV arrester.

  • Provides lower total installed cost from faster installation and less space in storage, transit and service.
  • Available with porcelain or polymer insulator body.
  • Comes with loadbreak hooks for use with portable loadbreak tool.
  • Fuseholders are interchangeable with other manufactures cutouts.
  • All copper current path with silver-plated contacts.
  • Terminals are tin-plated bronze for use with copper or aluminum conductors.
  • RUS listed, meets ANSI/NEMA specifications and IEEE requirements.
  • Fuseholders with arc shortening rods (link extender cap) are for use on single-phase to neutral or three-phase solidly grounded wye-connected circuits where recovery voltage does not exceed the maximum design voltage of the device.
See More
Product can be ordered only in multiples of
Brand Hubbell Power
Configuration Combo
Continuous Current Rating 100 A
Leakage Distance 17.1 in
Bracket Type NEMA B
Housing Material Polymer
Arrester Voltage Rating 18 kV
BIL (kV) 125 kV
Series Type C
Voltage 27 kV
Terminal Type Parallel Groove
Interrupting Rating 8 kAIC
Weight 23.3 lb
