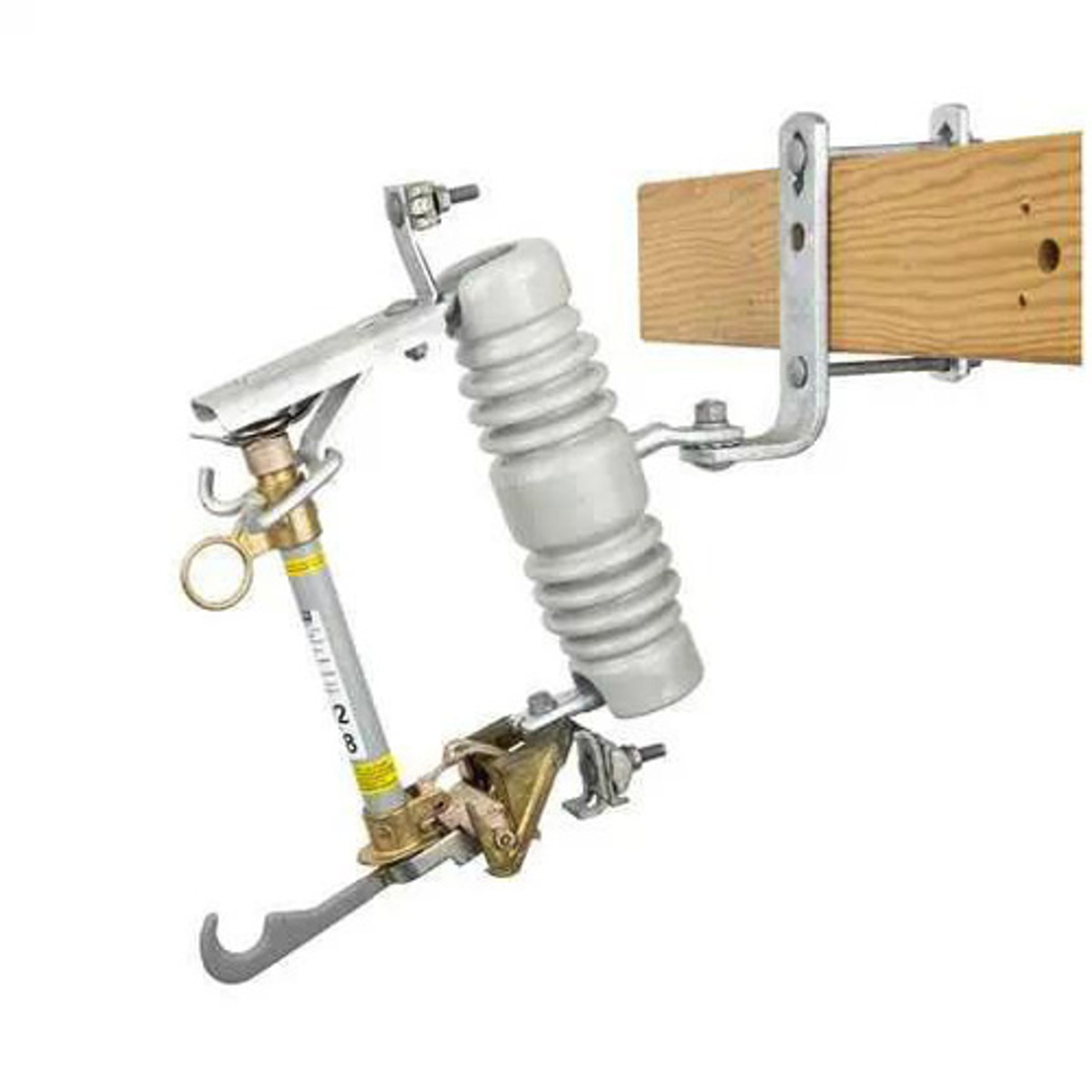

Hubbell Power Linkbreak Cutouts 22/36.4 kV 100 A 170 kV
Mfg #:
C720613PB
BOR #:
2983789
Hubbell Power’s Chance Type C Linkbreak cutouts provide circuit protection for utility lines with the added feature of a mechanical linkbreak that serves in a loadbreaking function for up to 100 amps load currents.
- Linkbreak fuseholder is interchangeable with other manufactures cutouts.
- Comes with loadbreak hooks for use with portable loadbreak tool – use above 100 amps.
- Linkbreak to be used only with fuse links requiring 1 inch or less elongation before breaking.
- All copper current path with silver-plated contacts.
- Terminals are tin-plated bronze for use with copper or aluminum conductors.
- RUS listed, meets ANSI/NEMA specifications and IEEE requirements.
- Cutouts with slant rated maximum voltage ratings are for systems which have phase-to-ground voltages no greater than the value listed to the left of the slant (/) and phase-to-phase voltages no greater than the value listed to the right of the slant.
| Brand | Hubbell Power |
| For Use With | Removable buttonhead fuse links. |
| Configuration | Linkbreak |
| Continuous Current Rating | 100 A |
| Leakage Distance | 26 in |
| Bracket Type | NEMA B |
| Housing Material | Porcelain |
| BIL (kV) | 170 kV |
| Series | Type C |
| Voltage | 22/36.4 kV |
| Interrupting Rating | 12 kAIC |
| Weight | 29 lb |
| Connector Type | Parallel Groove |
| Installation Manuals Asset Reference | Installation and Instruction Manuals |
|
| Catalog Full Asset Reference | Catalog |
|
