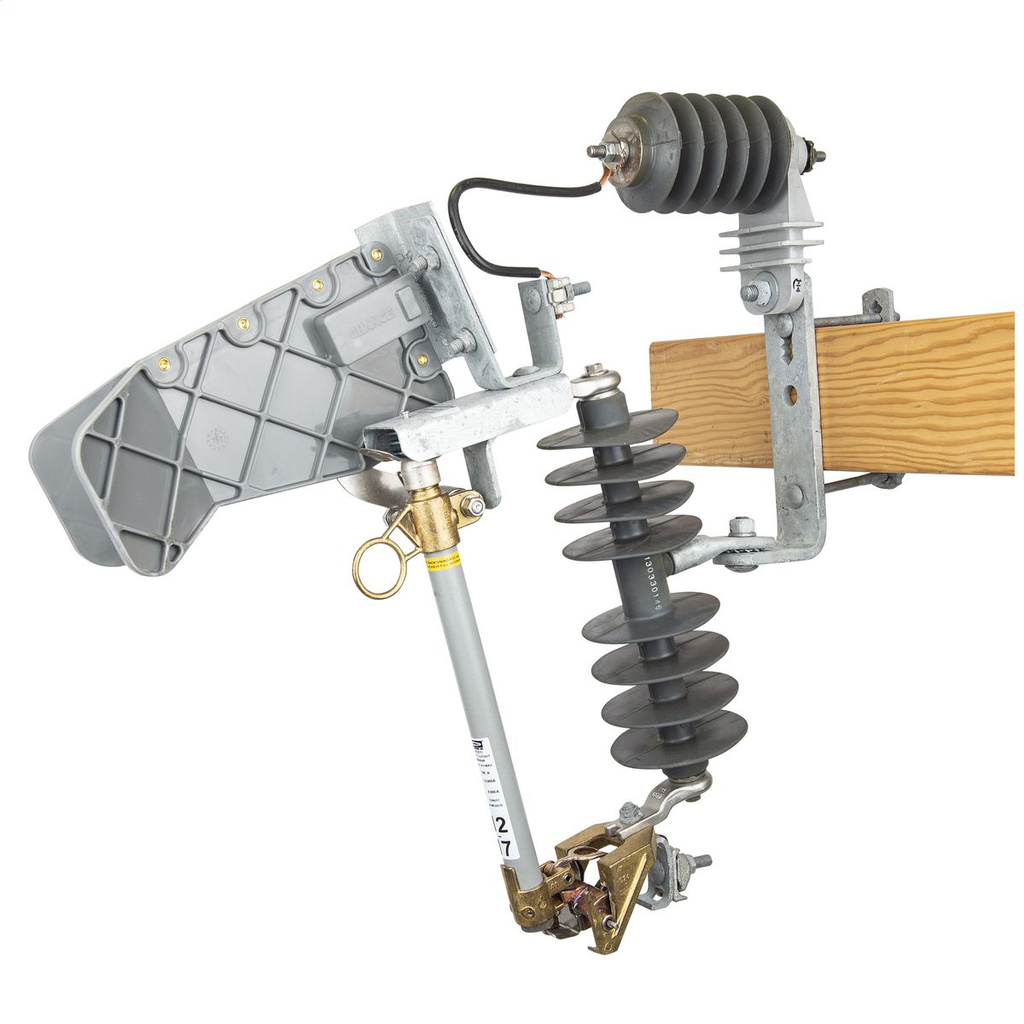

Hubbell Power Loadbreak Cutout/Arrester Combinations 15 kV 100 A 110 kV
Hubbell Power’s Chance Type C Loadbreak cutout / arrester combinations pair a loadbreak cutout together on a bracket with an Ohio Brass® MOV arrester.
- Provides lower total installed cost from faster installation.
- Less space in storage, transit and service.
- Loadbreak fuseholder is not interchangeable with other manufacturers arc chutes.
- All copper current path with silver-plated contacts.
- Terminals are tin-plated bronze for use with copper or aluminum conductors.
- RUS listed, meets ANSI/NEMA specifications and IEEE requirements.
- Cutouts with slant rated maximum voltage ratings are for systems which have phase-to-ground voltages no greater than the value listed to the left of the slant (/) and phase-to-phase voltages no greater than the value listed to the right of the slant.
| Brand | Hubbell Power |
| Configuration | Loadbreak Combo |
| Continuous Current Rating | 100 A |
| Leakage Distance | 12.6 in |
| Bracket Type | NEMA B |
| Housing Material | Polymer |
| Arrester Voltage Rating | 9 kV |
| BIL (kV) | 110 kV |
| Series | Type C |
| Voltage | 15 kV |
| Includes | Arc chute |
| Terminal Type | Parallel Groove |
| Interrupting Rating | 10 kAIC |
| Weight | 30.6 lb |
