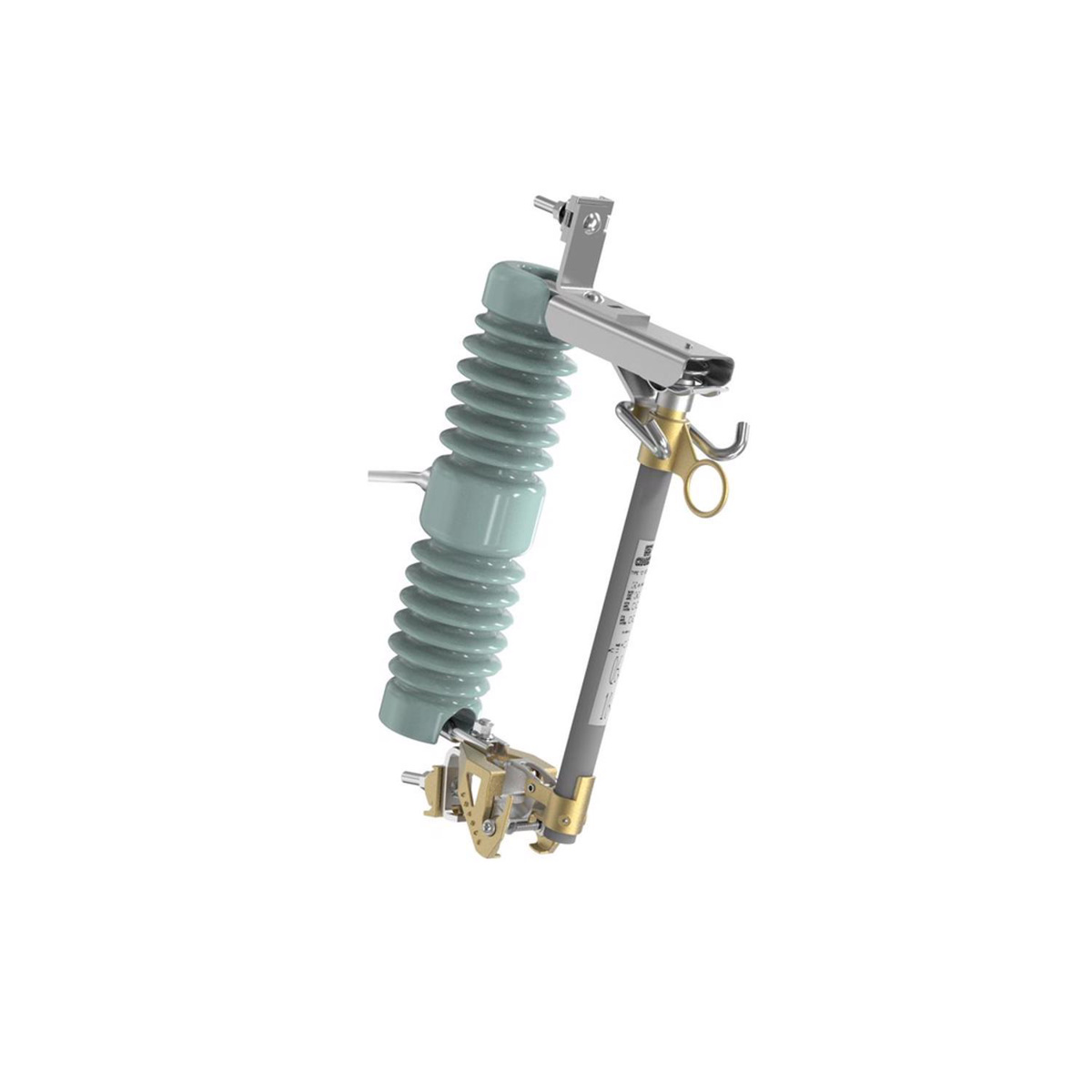

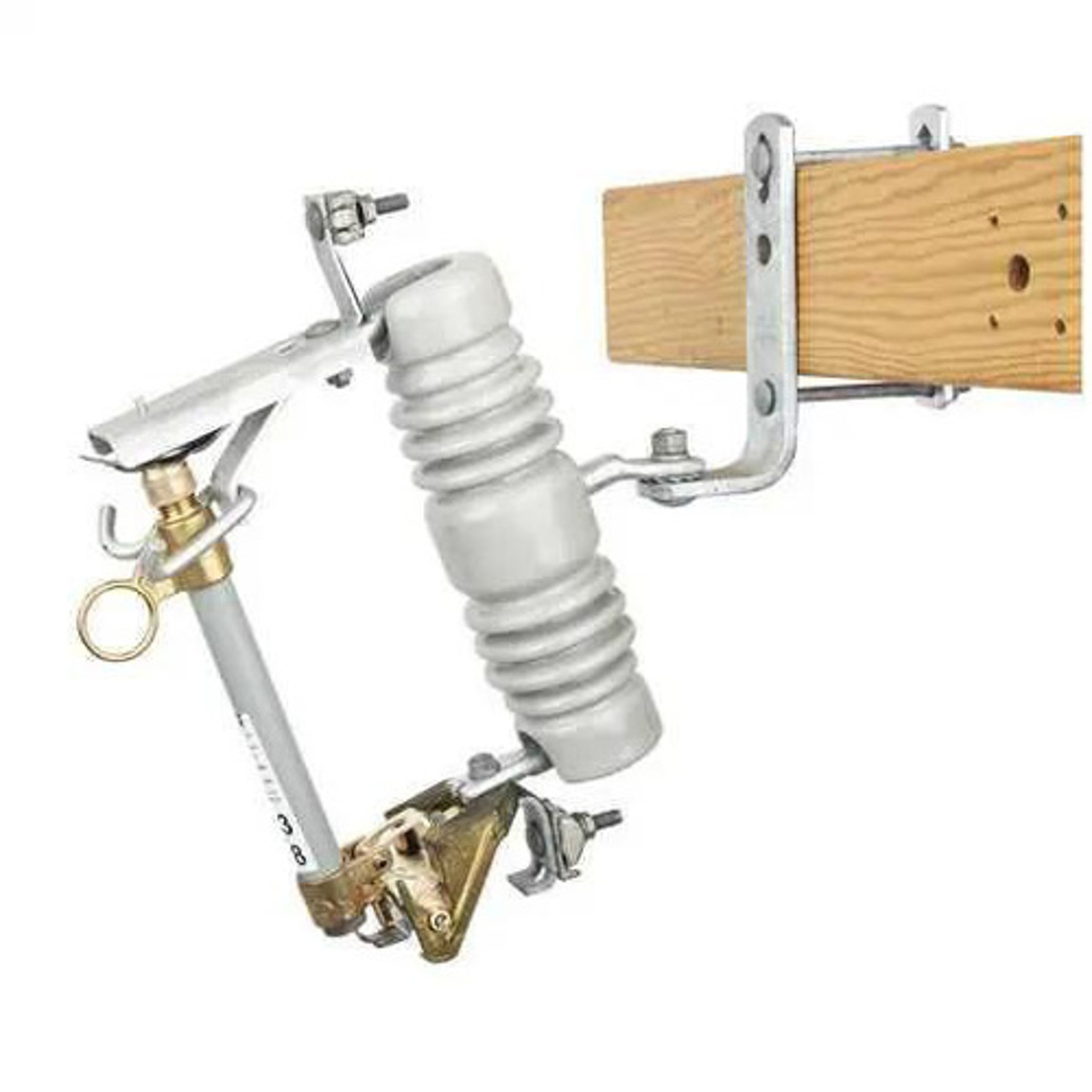

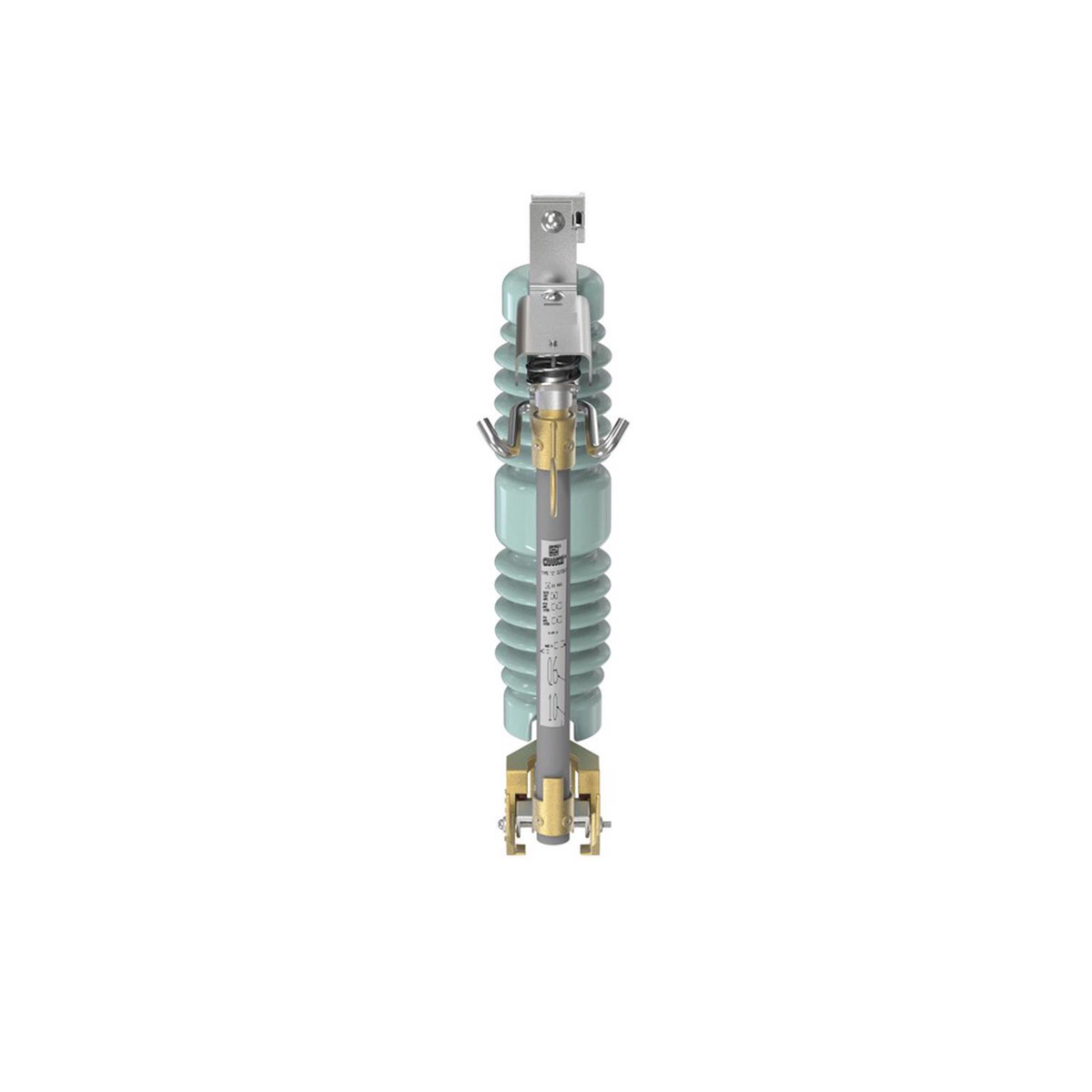

Hubbell Power Standard Cutouts 27 kV 100 A 125 kV
Mfg #:
C710211PB
BOR #:
100184
Hubbell Power’s Chance Type C Standard (Open) cutouts provide short circuit and low-level overload protection for overhead power lines and apparatus connected to those lines.
- Comes with loadbreak hooks for use with portable loadbreak tool.
- Fuseholders are interchangeable with other manufactures cutouts.
- Same Enhanced Silicone Polymer (ESP) used in Ohio Brass arresters and insulators.
- Terminals are tin-plated bronze for use with copper or aluminum conductors.
- RUS listed, meets ANSI/NEMA specifications and IEEE requirements.
- Fuseholders with arc shortening rod (link extender cap) are for use on single-phase to neutral or three-phase solidly grounded wye-connected circuits where recovery voltage does not exceed the maximum design voltage of the device.
| Brand | Hubbell Power |
| Configuration | Standard |
| Continuous Current Rating | 100 A |
| Leakage Distance | 12.6 in |
| Bracket Type | NEMA B |
| Housing Material | Porcelain |
| BIL (kV) | 125 kV |
| Series | Type C |
| Voltage | 27 kV |
| Terminal Type | Parallel Groove |
| Interrupting Rating | 8 kAIC |
| Weight | 21 lb |
| Standard Cutout Installation Instructions.pdf | Installation and Instruction Manuals |
|
