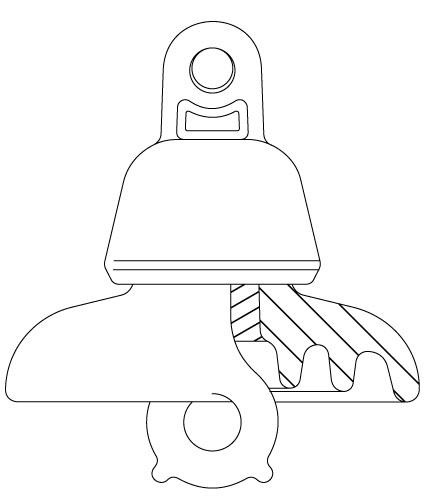

Gamma Insulators Porcelain Dead End Insulators ANSI 52-9 Clevis, Eyelet
Mfg #:
681570
BOR #:
1069601
| Brand | Gamma Insulators |
| Electrical Flashover (kV) CIFO Pos/Neg | Pos 100 kV, Neg 90 kV |
| Length | 6-1/4 in |
| ANSI Class | ANSI 52-9 |
| Color | Gray |
| Material | Porcelain |
| End Fitting | Clevis, Eyelet |
| Electrical Flashover (kV) 60 Hz Dry/Wet | Dry 60 kV, Wet 30 kV |
| Leakage Distance | 7 in |
| Dry Arc Distance | 4 in |
| Tensile Strength | 10000 lbf |
| Diameter | 4-3/4 in |
| Type | Dead End Insulator |
