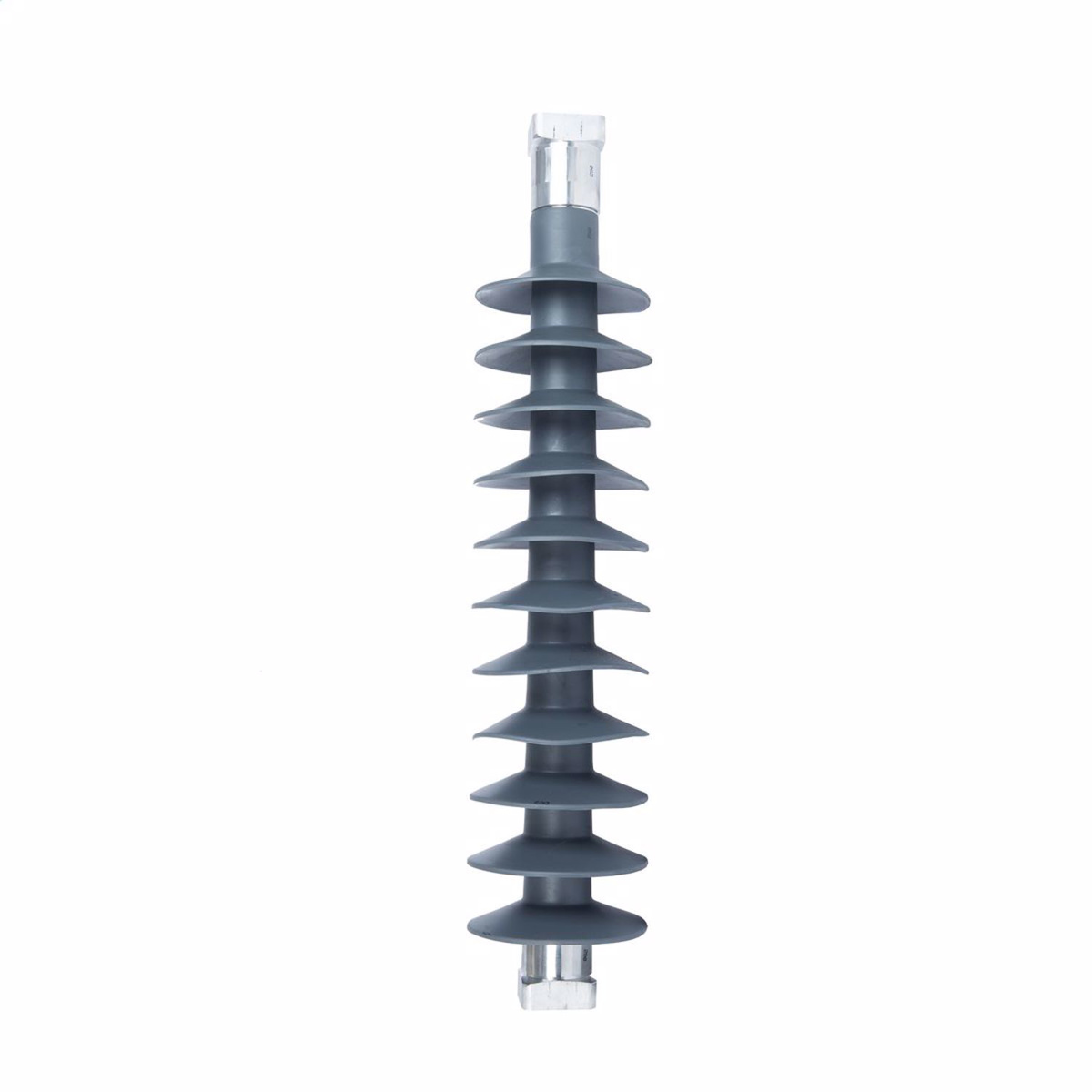

Hubbell Power Silicone Station Post Insulators TR-205 110 kV 4 Shed Bolt Circle
Mfg #:
PSSP175TR205
BOR #:
3461492
| Brand | Hubbell Power |
| Number of Sheds | 4 Shed |
| Electrical Flashover (kV) 60 Hz Dry/Wet | Dry 85 kV, Wet 55 kV |
| Bolt Circle Size | 3 |
| Electrical Flashover (kV) CIFO Pos/Neg | Pos 125 kV, Neg 200 kV |
| ANSI Class | TR-205 |
| Leakage Distance | 15-1/2 in |
| BIL (kV) | 110 kV |
| Base Fitting | Bolt Circle |
| Diameter | 6.22 in |
| Cantilever Strength | 2000 lbf |
| End Fitting | Bolt Circle |
| Material | Silicone |
| Length | 10 in |
| Color | Gray |
| Type | Station Post Insulator |
| Voltage | 15 kV |
