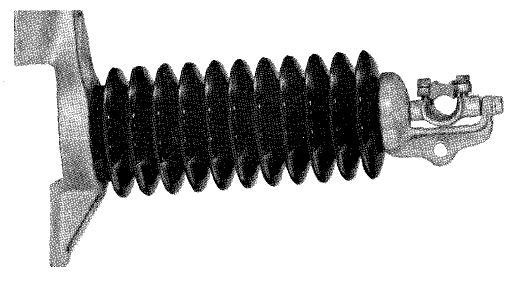

Lapp Insulators Porcelain Line Post Insulators ANSI 57-36 Gain Base
Mfg #:
478870
BOR #:
143116
| Brand | Lapp Insulators |
| Electrical Flashover (kV) 60 Hz Dry/Wet | Dry 200 kV, Wet 180 kV |
| Dry Arc Distance | 19-1/4 in |
| Electrical Flashover (kV) CIFO Pos/Neg | Pos 330 kV, Neg 425 kV |
| ANSI Class | ANSI 57-36 |
| Leakage Distance | 53 in |
| Base Fitting | Gain Base |
| Diameter | 8.13 in |
| Cantilever Strength | 2800 lbf |
| Material | Porcelain |
| Length | 22.88 in |
| Color | Light Gray |
| Tensile Strength | 5000 lbf |
| Type | Line Post Insulator |
| Voltage | 88 kV |
