Maclean Power Station Post Insulators TR-304P 900 kV 33 Shed Bolt Circle
Mfg #:
P25353070BBSS033
BOR #:
3558311

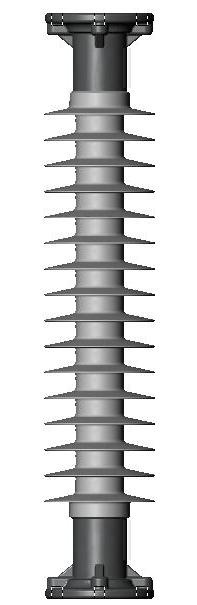

Image shown may be a representative image and may not reflect the exact product
| Brand | Maclean Power |
| Number of Sheds | 33 Shed |
| Electrical Flashover (kV) 60 Hz Dry/Wet | Dry 657 kV Wet 601 kV |
| Bolt Circle Size | 5 |
| Dry Arc Distance | 71.2 in |
| Electrical Flashover (kV) CIFO Pos/Neg | Pos 1151 kV, Neg 1184 kV |
| ANSI Class | TR-304P |
| Leakage Distance | 216.2 in |
| BIL (kV) | 900 kV |
| Base Fitting | Bolt Circle |
| Diameter | 7.52 in |
| End Fitting | Bolt Circle |
| Length | 80 in |
| Type | Station Post Insulator |
