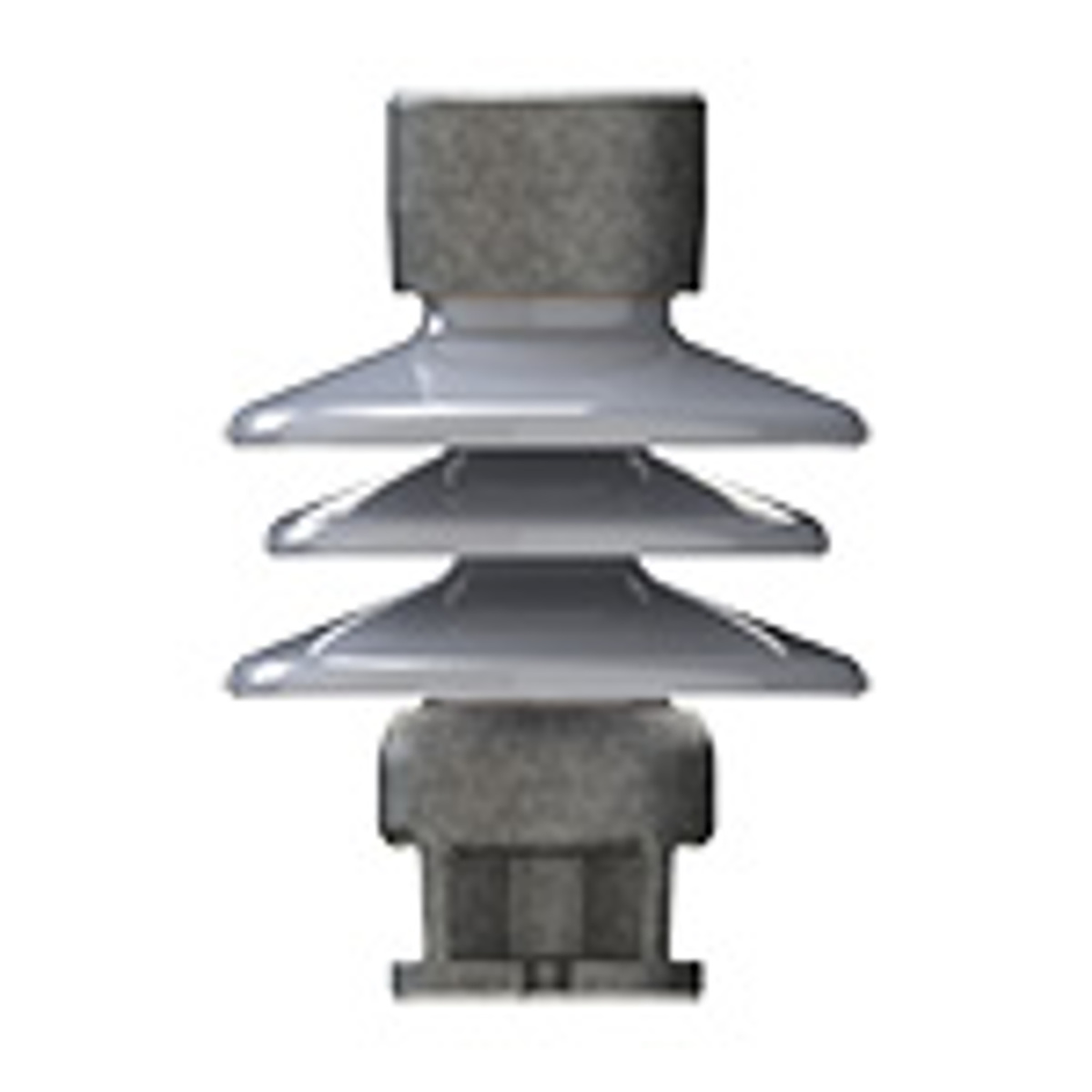

Victor Insulators Station Post Insulator Assemblies TR019 550 kV Bolt Circle
Mfg #:
15PA32
BOR #:
3248459
| Brand | Victor Insulators |
| Weight | 160 lb |
| Bolt Circle Size | 5 |
| Electrical Flashover (kV) CIFO Pos/Neg | Pos 610 kV |
| ANSI Class | TR019 |
| Height | 43-1/2 in |
| Leakage Distance | 99 in |
| BIL (kV) | 550 kV |
| Base Fitting | Bolt Circle |
| Strength Class | Standard Strength |
| Diameter | 10-1/2 in |
| Cantilever Strength | 1700 lbf |
| Series | 15 |
| End Fitting | Bolt Circle |
| Material | Porcelain |
| Length | 43-1/2 in |
| Color | Gray |
| Tensile Strength | 20000 lbf |
| Type | Station Post Insulator |
| Voltage | 115 kV |
| Victor Insulators Specification Sheet | Specification Sheet |
|
