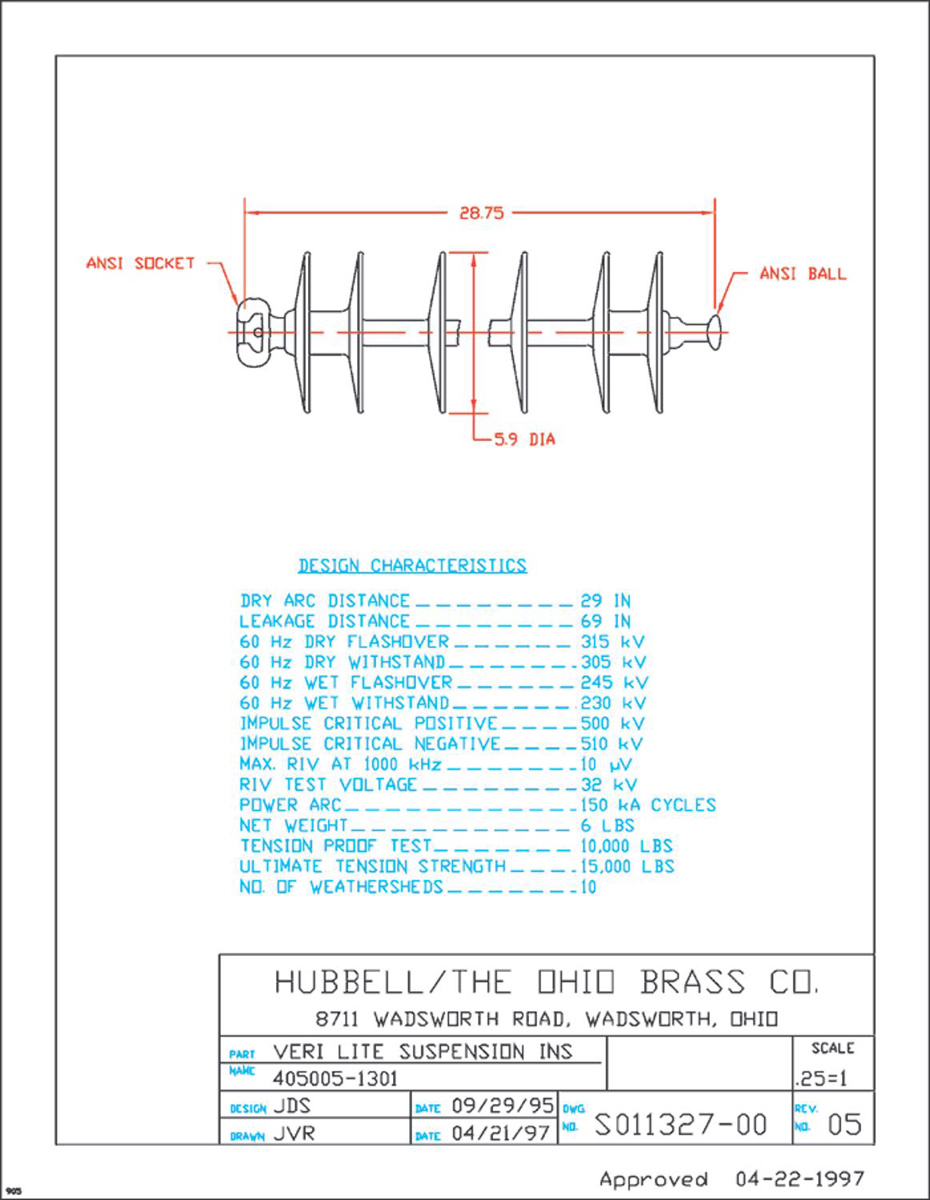

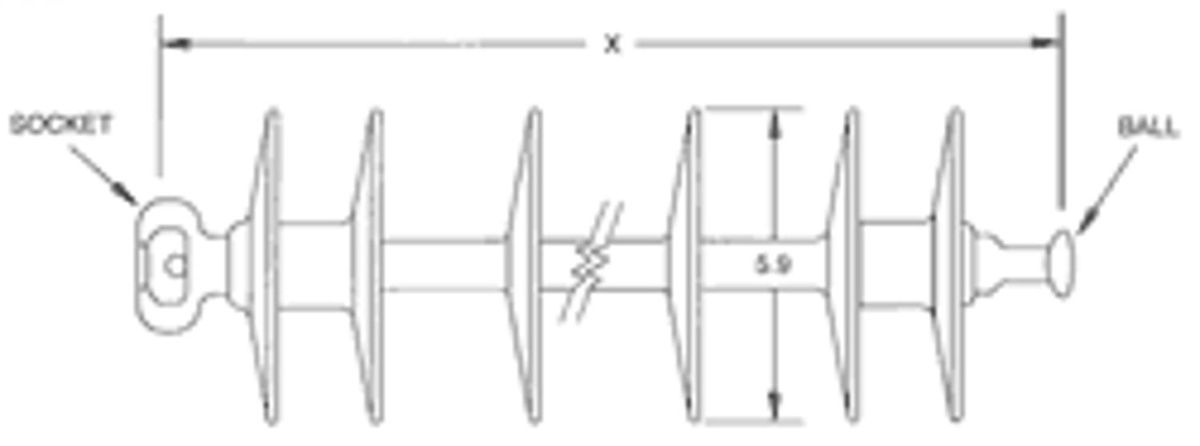

Hubbell Power ESP Rubber Suspension Insulators VLS-5 5.9 in Tongue Clevis 69 kV 10 Shed
Mfg #:
4050051301
BOR #:
160986
Type | Suspension Insulator |
Electrical Flashover (kV) CIFO Pos/Neg | Pos 500 kV, Neg 510 kV |
Ultimate Strength | 15000 lbf |
Electrical Flashover (kV) 60 Hz Dry/Wet | Dry 315 kV, Wet 245 kV |
Brand | Hubbell Power |
Length | 28-3/4 in |
Voltage | 69 kV |
Leakage Distance | 69 in |
Material | ESP Rubber |
Dry Arc Distance | 29-1/2 in |
Number of Sheds | 10 Shed |
End Fitting | Tongue |
Base Fitting | Clevis |
ANSI Class | VLS-5 |
Diameter | 5.9 in |
