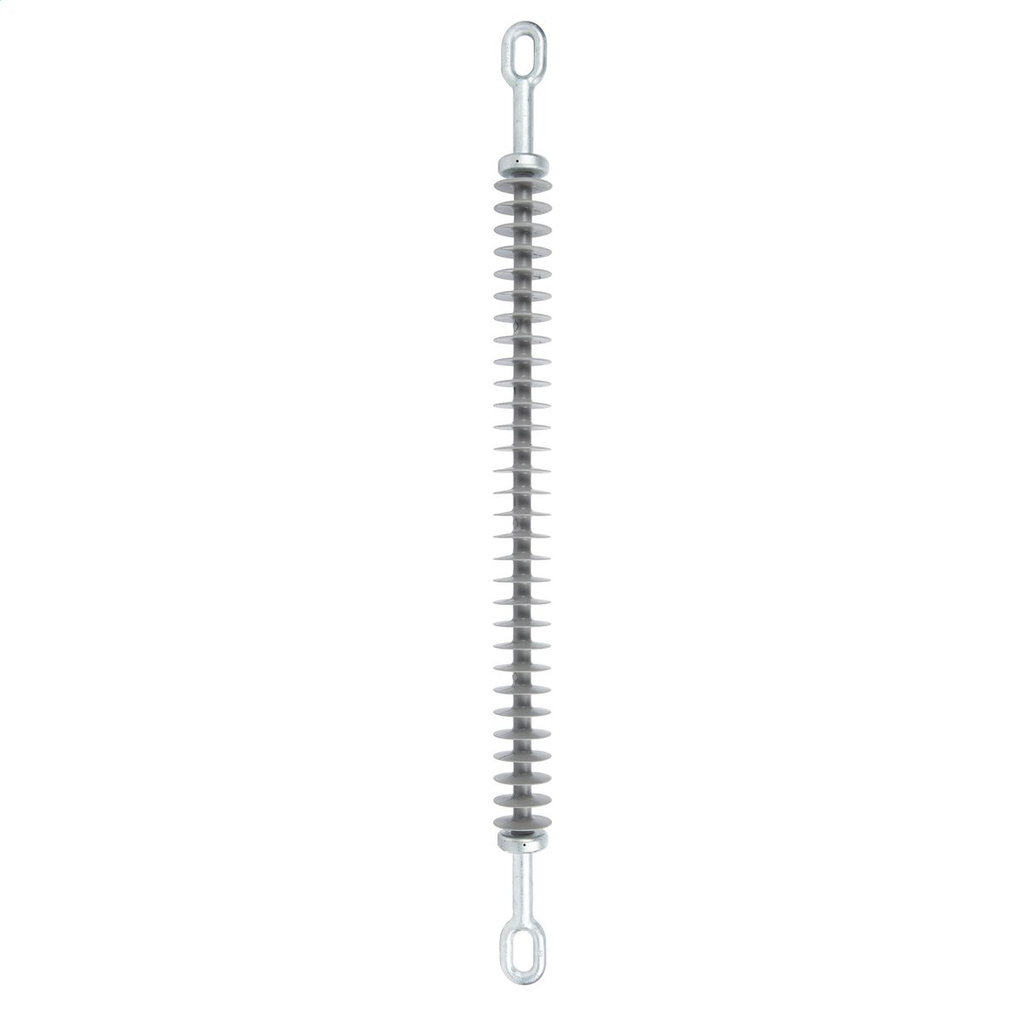

Hubbell Power Polymer Suspension Insulators 2.9 in Chain Eye Eye 270 kV 40 Shed
Mfg #:
S025043S0000
BOR #:
2982262
| Electrical Flashover (kV) CIFO Pos/Neg | Pos 630 kV, Neg 625 kV |
| Ultimate Strength | 25000 lbf |
| Electrical Flashover (kV) 60 Hz Dry/Wet | Dry 460 kV, Wet 435 kV |
| Brand | Hubbell Power |
| Series | S025 |
| Line Fitting | Chain Eye |
| Length | 57 in |
| Voltage | 270 kV |
| Leakage Distance | 110 in |
| Material | Polymer |
| Dry Arc Distance | 43.1 in |
| Color | Gray |
| Number of Sheds | 40 Shed |
| Section Length | 43 in |
| Type | Suspension Insulator |
| End Fitting | Chain Eye |
| Base Fitting | Eye |
| Diameter | 2.9 in |
| Catalog Full | Catalog |
|
